Palazzoli 470 126 Interlocked Socket Outlet
Neu
Auf Lager2 EinheitenVersandbereit
Interlocked Socket Outlet
The PALAZZOLI 470 126 (2572115) is a 16A, IP67-rated interlocked socket outlet with screw terminals, designed for 200“250 V AC connections in industrial settings.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

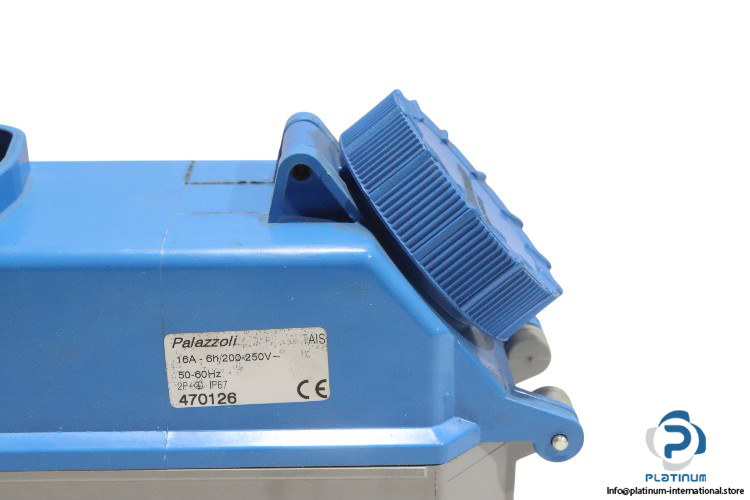

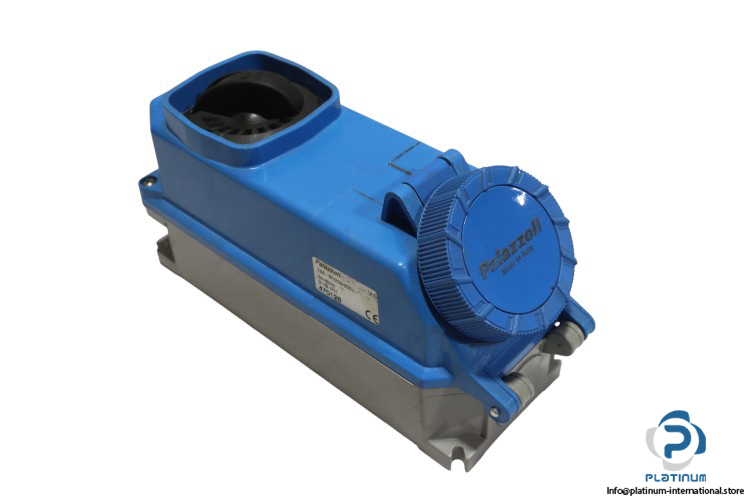

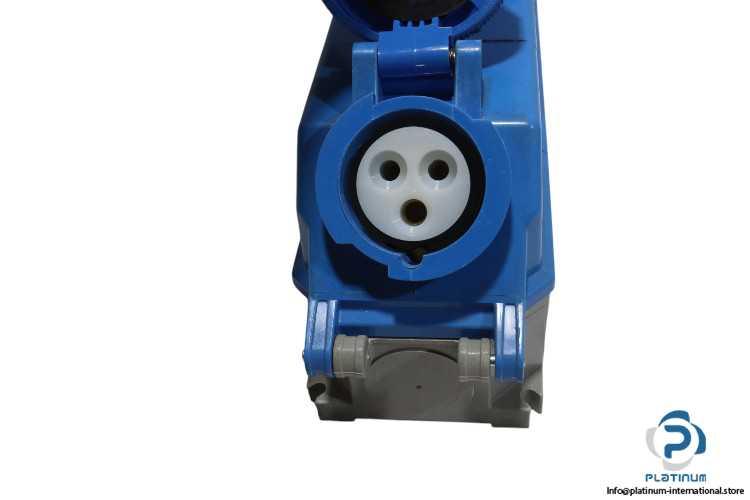

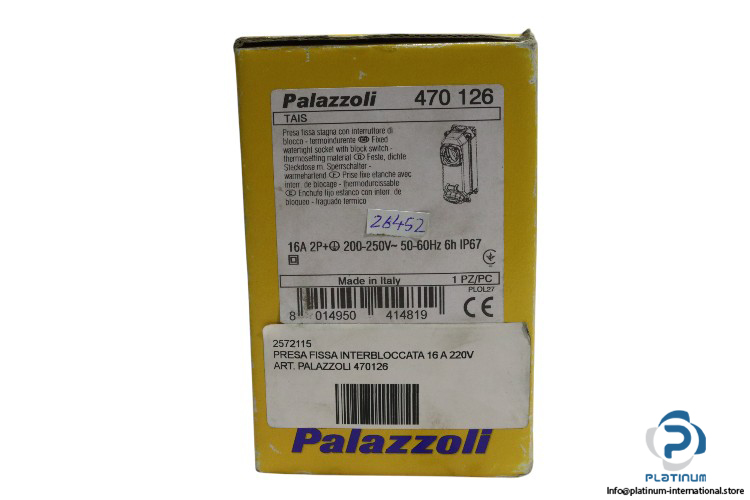

PALAZZOLI 470 126 Interlocked Socket Outlet
The PALAZZOLI 470 126 (Part No. 2572115) is a heavy-duty interlocked socket outlet designed for safe and reliable electrical connections in industrial environments. Featuring IP67 protection and a robust construction, it ensures dependable operation even in harsh conditions.
Manufacturer: PALAZZOLI
Type: Interlocked Socket Outlet
Model: 470 126
Part No.: 2572115
| Rated Voltage | 200 / 250 V AC |
| Rated Insulation Voltage | 690 V |
| Terminals Type | Screw - indirect clamping |
| Frequency | 50/60 Hz |
| Rated Current | 16 A |
| Reference Time | 6 h |
| Number of Poles | 2P+E |
| Protection Degree | IP67 |
| Hole Type | M25 |
| Operating Temperature | -25 / 50°C |
| Dimensions | 92 x 252 x 153 mm |
