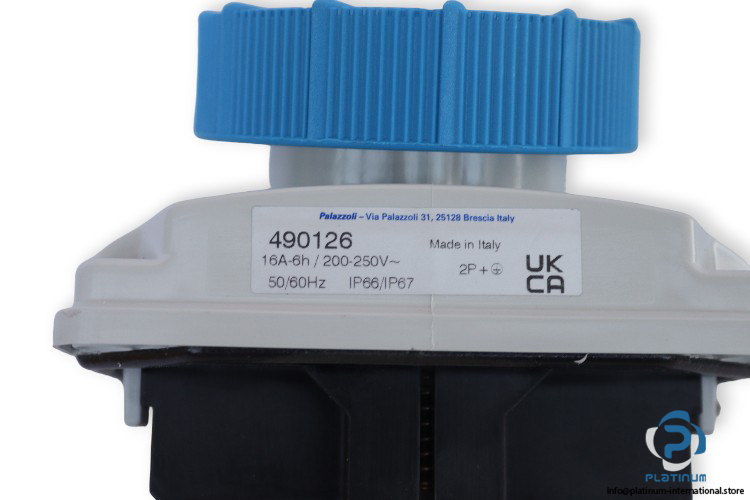

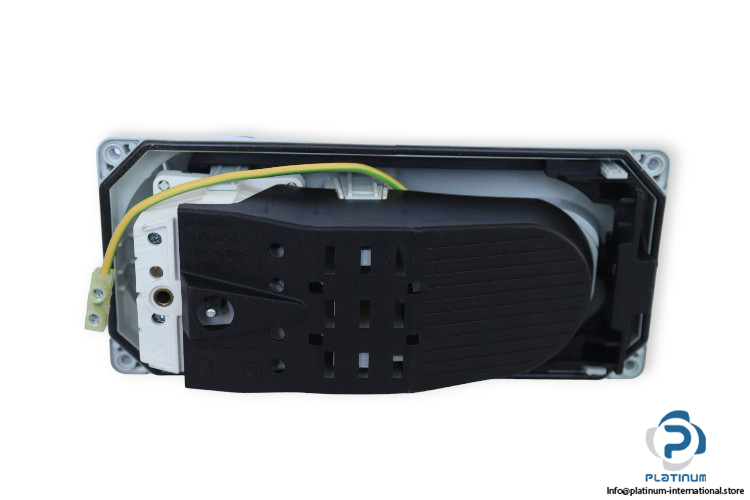

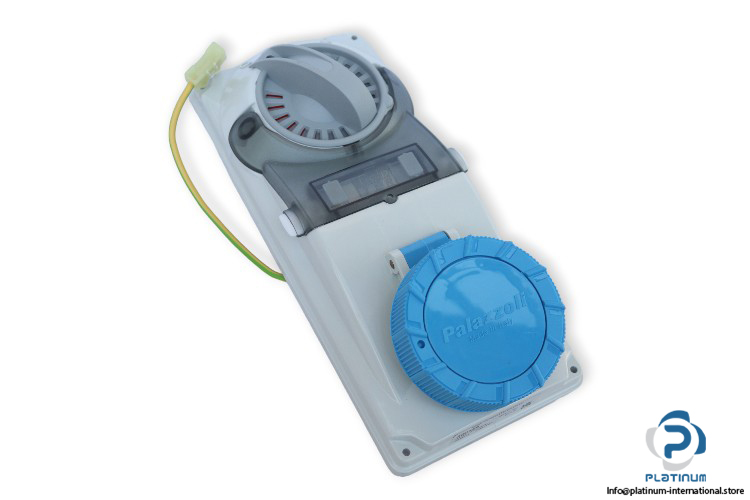

Palazzoli 490126 Switched Socket
Manufacturer: PALAZZOLI
Type: Switched Socket
Model: 490126
Description: TOPTER Switched Socket with Mechanical Interlock and Fuse-Holder
Rated Operating Voltage: 200 … 250 V AC
Rated Current: 16 A
Rated Insulation Voltage: 690 V
Frequency: 50 … 60 Hz
Clock Position: 6 h
Poles No.: 2+E-Pole
Contact: Aux Normally Open (NO) / Normally Closed (NC) (Optional)
Material: Technopolymer Recyclable Palazzoli
Protection Class: IP66 / IP67
Ambient Temperature: -25 … 50 °C
Lockable Handle: 1 Lock Ø 4,5 mm
Dimensions: 230 x 103 x 120 mm
