Parker SMB8240038193M64 Brushless Servo Motor
Gebraucht
Auf Lager2 EinheitenVersandbereit
555,55$
Brushless Servo Motor
Parker SMB8240038193M64 brushless servo motor with 1.26 kW rated power, 151 Vrms nominal voltage, IP64 protection, and rear-facing connector terminal box.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

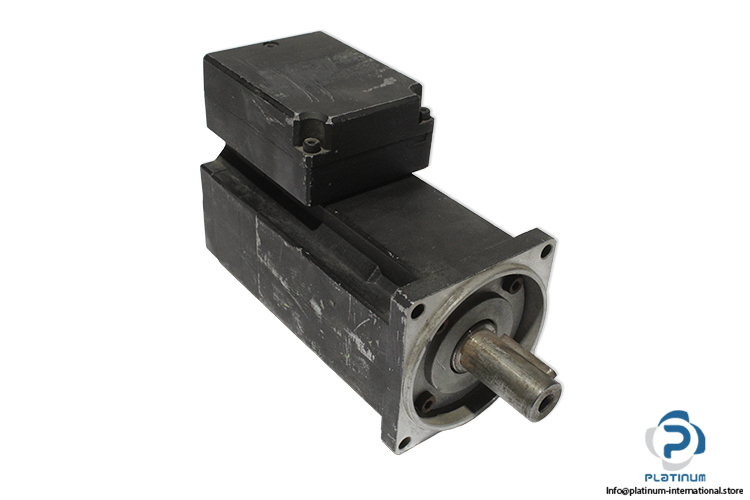

Parker SMB8240038193M64 Brushless Servo Motor
The Parker SMB8240038193M64 is a high-performance brushless servo motor from the SMB series, designed for precise motion control and continuous industrial operation.

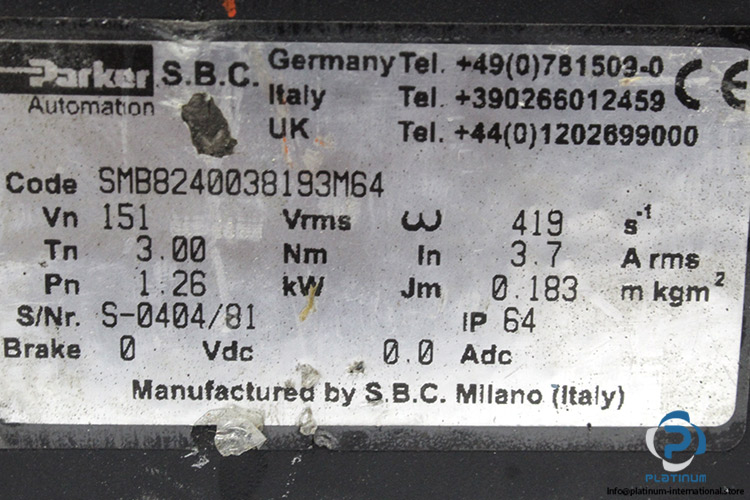

Manufacturer: Parker
Type: Brushless Servo Motor
Model: SMB8240038193M64
Serial No.: S-0404/81
Series: SMB
Company Specialist Unit: S.B.C
| Size | 82 |
| Nominal Voltage (Vn) | 151 Vrms |
| Rated Power | 1.26 kW |
| Nominal Current (In) | 3.7 Arms |
| Rated Angular Speed (W) | 419 s»¹ |
| Stall Torque | 3 Nm |
| Rotor Inertia (Jm) | 0.183 mkgm² |
| Shaft Diameter | 40 mm |
| Protection Class | IP64 |

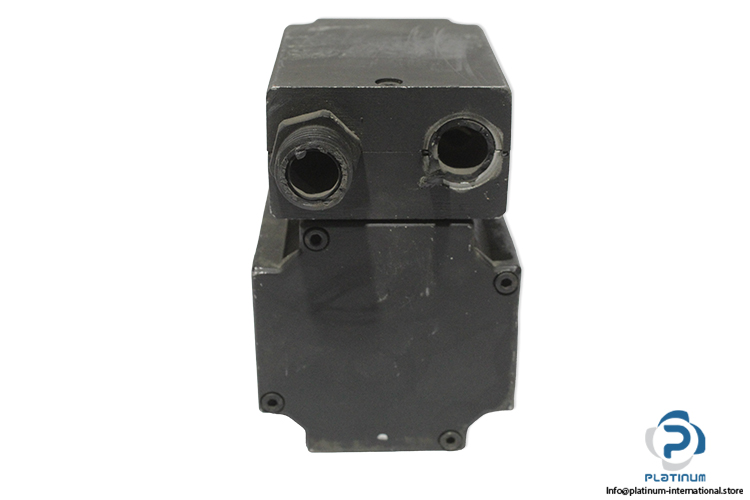

| Connection | Connector terminal box, rear facing |
| Certifications | CE |
