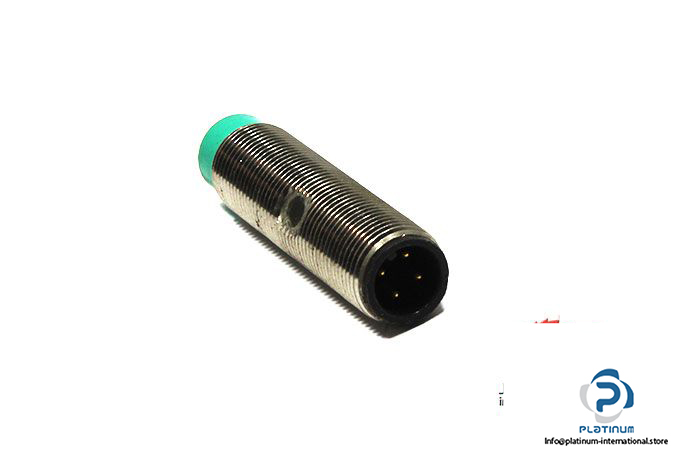

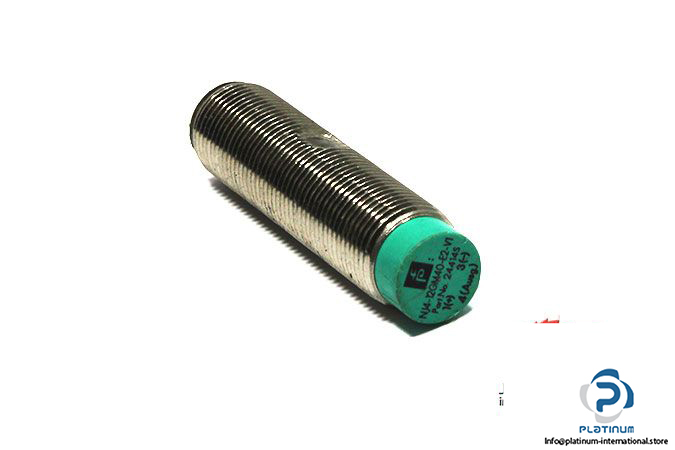

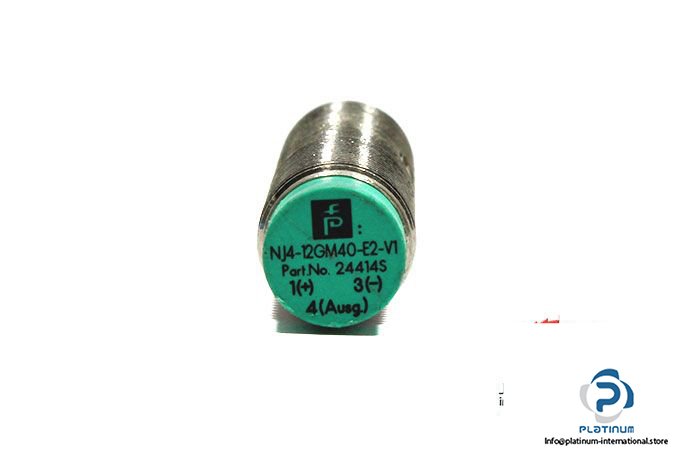

Pepperl Fuchs NJ4-12GM40-E2-V1 Inductive Sensor

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NJ4-12GM40-E2-V1

Part No: 24414S

Rated Operating Distance: 4 mm

Assured Operating Distance: 0 … 3.24 mm

Operating Voltage: 10 … 60 V DC

Switching Current: 0 … 200 mA

No-Load Supply Current I₀: ≤ 9 mA

Voltage Drop U_d: ≤ 3 V

Signal Output: PNP

Switching Function: Normally Open

Switching Frequency f: 0 … 2000 Hz

Installation: Non-Flush

Protection Degree: IP67

Ambient Temperature: -25 … 70 °C

Material: Housing: Stainless Steel  Sensing Face: PBT

Connection: Connector M12 x 1 , 4-pin

Diameter, Length: 12, 50 mm

Weight: 15 g
