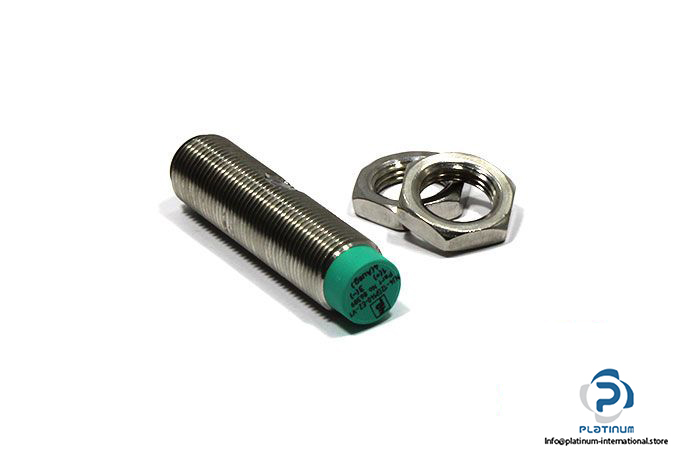

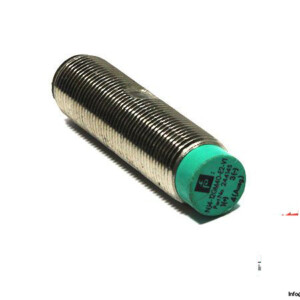

Pepperl Fuchs NJ4-12GM40-E2-V1 Inductive Sensor

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

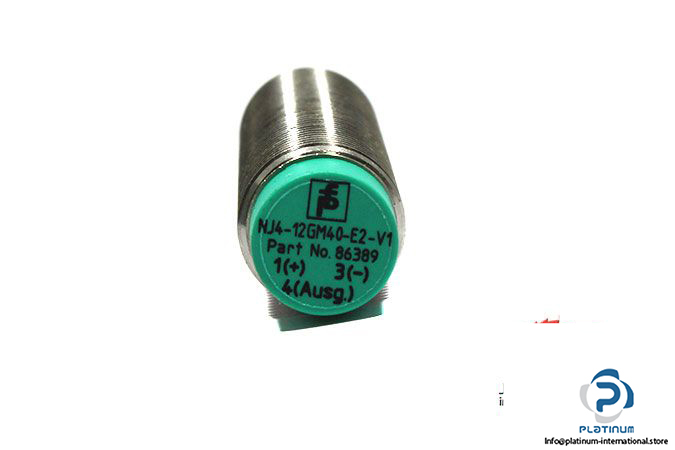

Model: NJ4-12GM40-E2-V1

Part No.: 86389

Rated Operating Distance: 4 mm

Assured Operating Distance: 0 / 3.24 mm

Operating Voltage: 10 / 60 V DC

Switching Current: 0 / 200 mA

No-Load Supply Current I₀: ‰¤ 9 mA

Voltage Drop U_d: ‰¤ 3 V

Signal Output: PNP

Switching Function: Normally Open

Switching Frequency: 0 / 2000 Hz

Installation: Non-Flush

Protection Degree: IP67

Ambient Temperature: -25 / 70 °C

Material: Housing: Stainless Steel, Sensing Face: PBT

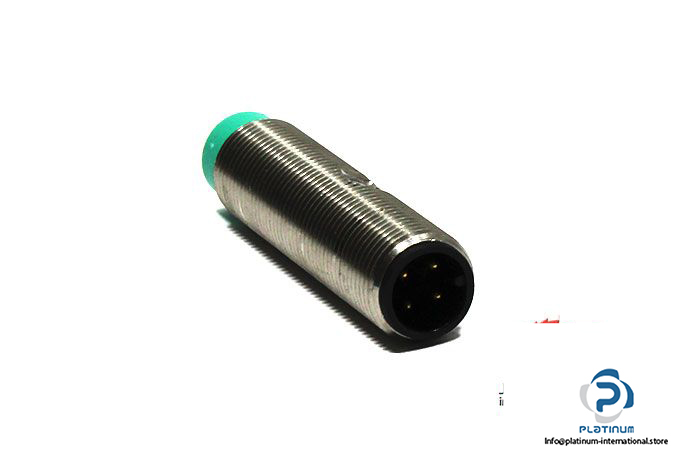

Connection: Connector M12 x 1, 4-pin

Dimensions: Diameter: 12 mm, Length: 50 mm

The Pepperl+Fuchs NJ4-12GM40-E2-V1 is a robust inductive sensor designed for high-precision non-contact detection of metallic objects in industrial environments. It features a compact cylindrical design with a stainless-steel housing and PBT sensing face, ensuring durability and reliable performance in harsh conditions. With a rated sensing distance of 4 mm, a fast switching frequency up to 2000 Hz, and IP67 protection, this sensor is ideal for applications in automation, robotics, and machine monitoring systems.
