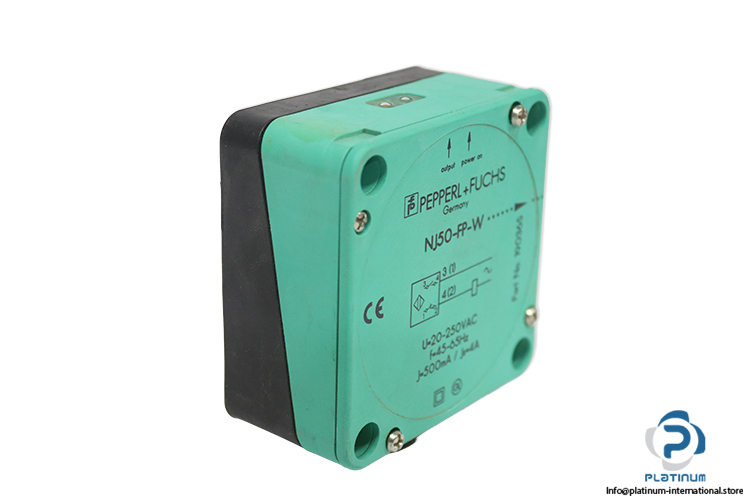

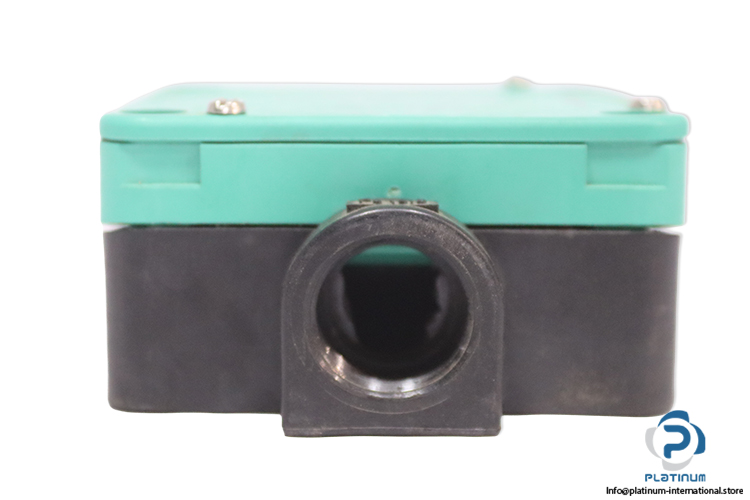

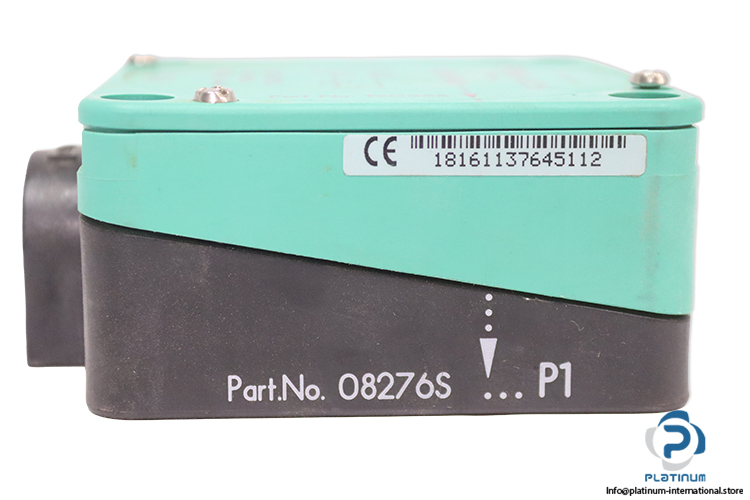

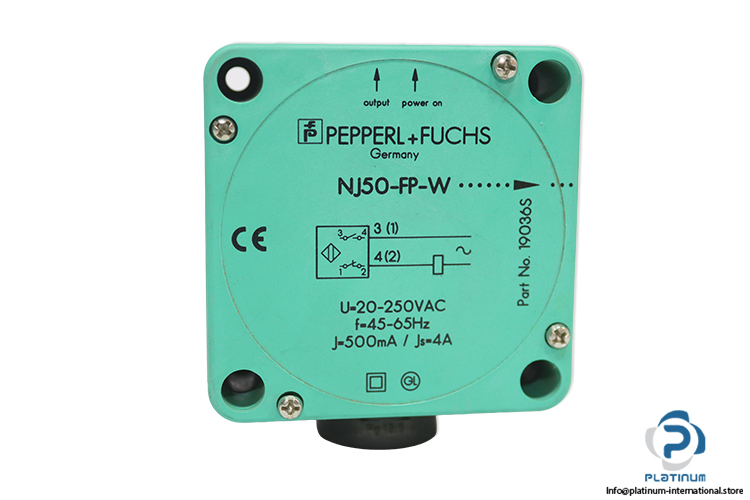

Pepperl + Fuchs NJ50-FP-W-P1 Inductive Sensor

pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-1
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-2
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-3
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-4
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-1
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-2
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-3
pepperl-fuchs-nj50-fp-w-p1-inductive-sensor(new)-4
Neu
Auf Lager1 EinheitVersandbereit

Inductive Sensor

A robust AC inductive proximity sensor with a 50 mm sensing distance, designed for reliable object detection in industrial automation and control applications.

Hersteller
Pepperl + Fuchs
SKU
1084817
Kategorie
Sensors
Zustand
Neu
+GF+ACAutomationDetectionFuchsInductiveIndustrialIP67NJ50-FP-W-P1PepperlPositionProximitySensor
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

Pepperl + Fuchs NJ50-FP-W-P1 Inductive Sensor

A high-performance inductive proximity sensor designed for industrial automation applications requiring long sensing distance, AC switching capability, and robust environmental protection. This sensor is suitable for machinery monitoring, position detection, and control systems in harsh industrial environments. Manufacturer: Pepperl + Fuchs

Type: Inductive Sensor

Model: NJ50-FP-W-P1

Part No.: 19036S

Code: 9001798

Serial No.: 18161137645112

Switching Element FunctionAC Make / Break Function
Rated Operating Distance (sn)50 mm
Assured Operating Distance (sa)0 / 40.5 mm
InstallationNot Embeddable
Output PolarityAC
Reduction Factor (Al)0.4
Reduction Factor (Cu)0.3
Reduction Factor (V2A)0.85
Nominal Operating Voltage (UB)20 / 250 V AC
Switching Frequency45 / 65 Hz
Hysteresis (H)0 / 10 % (typ.)
Voltage Drop (Ud)7 V
Momentary Current0 / 4000 mA (20 ms, 0.1 Hz)
Operating Current (IL)10 / 500 mA
Off-State Current (Ir)0 / 2.5 mA (typ.)
Operating Voltage DisplayLED, Green
Switching State IndicationLED, Yellow
Standard ConformityIEC / EN 60947-5-2:2004
Ambient Temperature-25 / +70 °C
Connection TypeTerminal Compartment
Core Cross-SectionUp to 2.5 mm²
Housing MaterialPBT
Sensing Face MaterialPBT
DimensionsLength 80 × Height 40 mm
Protection DegreeIP67

Mehr von Pepperl + Fuchs

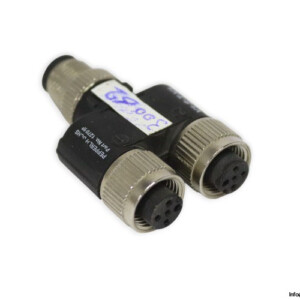

Pepperl+Fuchs V1-S-T-V1 Y-Splitter
