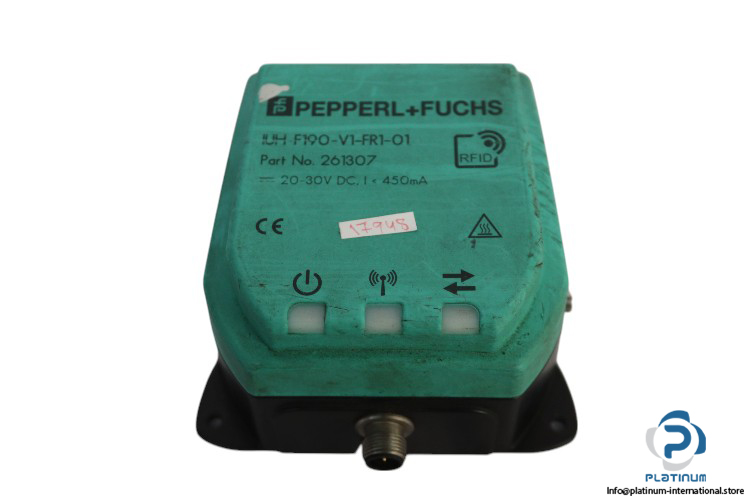

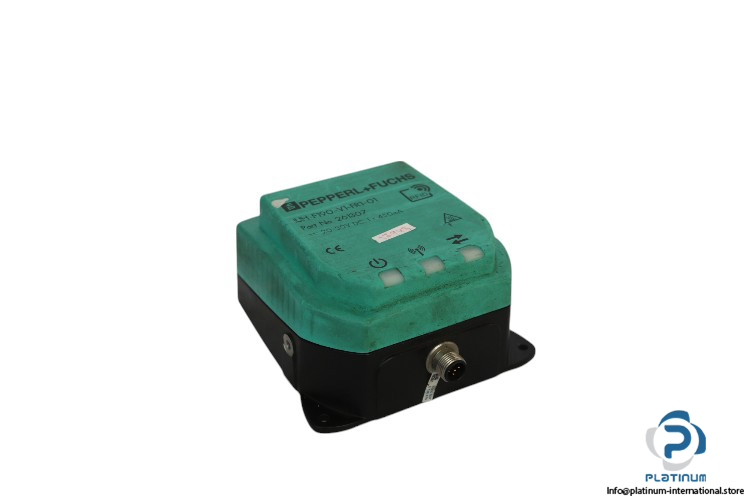

Pepperl+Fuchs IUH-F190-V1-FR1-01 Read/Write Head

Pepperl+Fuchs Read/Write Head IUHF190V1FR101

Pepperl+Fuchs Read/Write Head IUHF190V1FR101 is designed for reliable and efficient RFID data communication in industrial applications. It offers robust performance with high operating distances, low power consumption, and a durable design suitable for harsh environments.

• Manufacturer: Pepperl+Fuchs
• Type: Read/Write Head
• Model: IUHF190V1FR101
• Part No.: 261307

Technical Data:

• Operating Voltage: 20 to 30 V DC
• Operating Distance to Typ.: 2 m
• Current Consumption: max. 450 mA
• Power Consumption P0: max. 9 W
• Operating Frequency: 865 to 868 MHz
• Emitted Power: 3 to 1000 mW
• Degree of Protection: IP67
• Connection Connector: M12 x 1
• Housing Material: PA 6.6
• Base Material: Diecast Aluminum
• Ambient Temperature: -20 to 70 °C
• Dimensions: 63 x 114 x 112 mm
