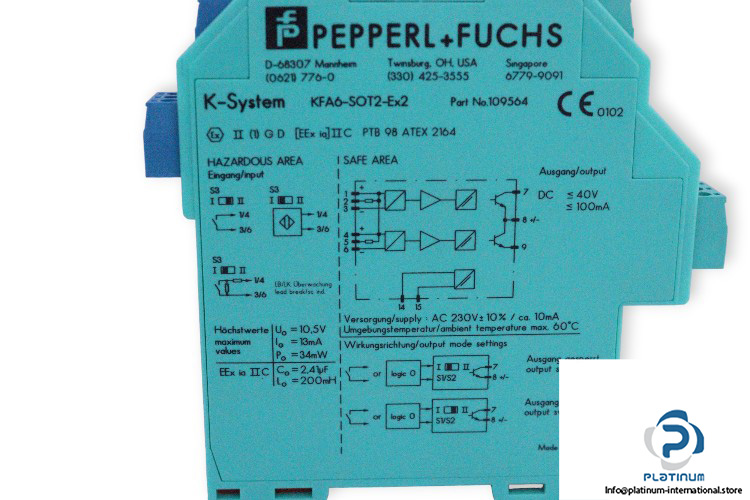

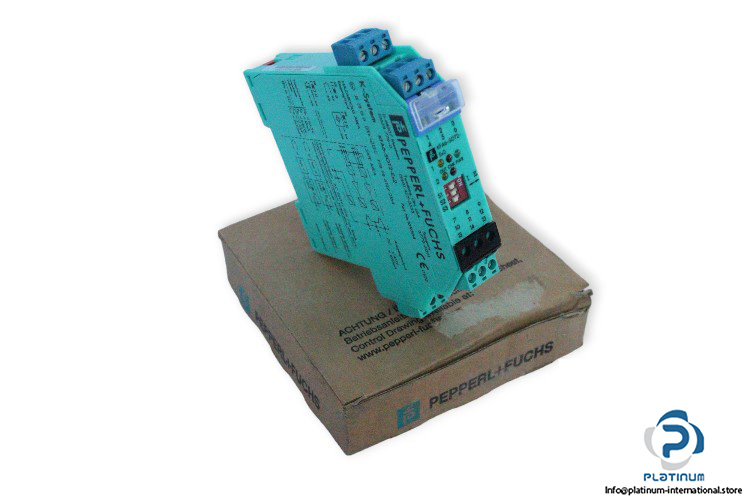

Pepperl+Fuchs KFA6-SOT2-EX2 109564 Switch Amplifier

Manufacture: Pepperl+Fuchs
Type: Switch Amplifier
Model: KFA6SOT2EX2
Part No.: 109564

Signal Type: Digital Input
Connection: Terminals 14, 15
Rated Voltage: 85 … 255 VAC
Power Loss: 1 W
Power Consumption: ≤ 1.5 W
Input:
Connection: Terminals 1+, 2+, 3-; 4+, 5+, 6
Open Circuit Voltage/Short-Circuit Current: Approx. 8 V DC / Approx. 8 mA
Switching Point/Switching Hysteresis: 1.2 … 2.1 mA/Approx. 0.2 mA
Line fault detection: Breakage I ≤ 0.1 mA, Short-Circuit I > 6 mA
Output:
Connection: Output I: Terminals 7, 8; Output II: Terminals 8, 9
Switching voltage: max. 40 V
Switching current: max. 100 mA , short-circuit protected
Signal Level:
1-Signal: (External Voltage) – 2.5 V Max. For 10 mA or 3 V Max. For 100 mA (100 mA, Short-Circuit Proof)
0-Signal: Switched Off (Off-State Current ≤ 10 µA)
Data for application in connection with hazardous areas
Voltage Uo: 10.5 V
Current Io: 13 mA
Power Po: 34 mW
Ambient Temperature: -25 … 60 °C
Connection: screw terminals
Dimensions: 20 X 119 X 115 mm
Degree of Protection: IP20 IEC 60529
