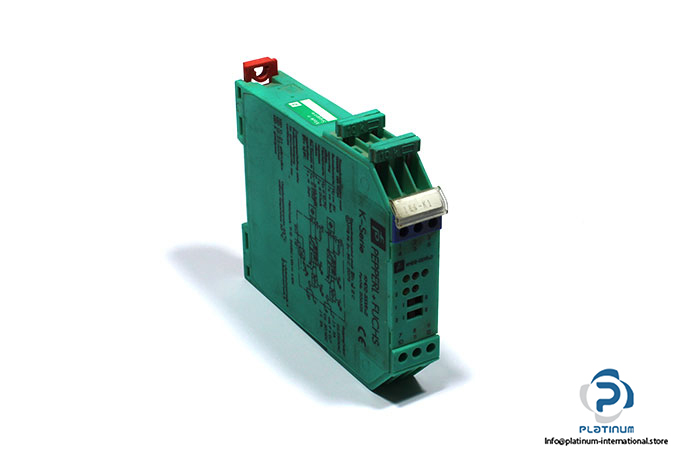

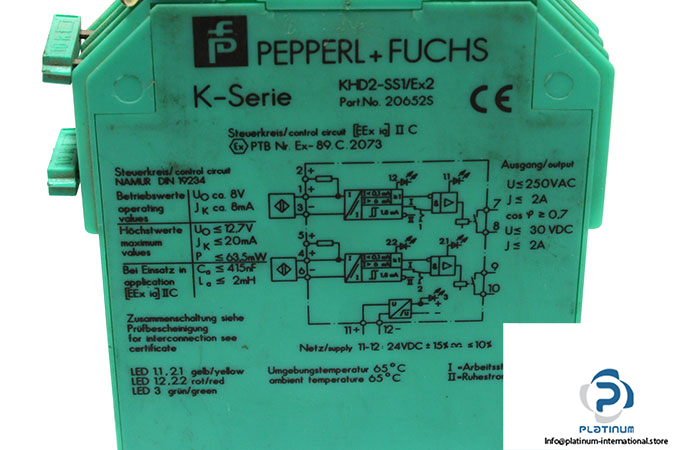

Pepperl+Fuchs KHD2-SS1/EX2 Isolated Switch Amplifier

Manufacturer: PEPPERL+FUCHS

Type: Isolated Switch Amplifier

Model: KHD2-SS1/EX2

Part No.: 20652S

Supply Voltage: 24 VDC

Max. Current Consumption: 30 mA

Input:

Connection: terminals 1+, 2+, 4+, 5+, 3-, 6-

Open Circuit Voltage / Short Circuit Current: ≈ DC 8 V / ≈ 8 Ma

Switch Point / Switching Hysteresis: 1.2 mA … 2.1 mA / ≈ 0.2 mA

Input Pulse Length / Input Pulse Pause: > 20 ms / > 20 ms

Output:

Connection: terminals 7, 8, 9, 10

Contact Load: AC: 250 V / 2 A / cos ϕ > 0.7; DC: 30 V / 2 A resistance load

Response Time Energising Delay / De-Energising Delay: ≈ 20 ms / ≈ 20 ms

Ambient Temperature: -20 … 65 °C

Protection Degree: IP20

Dimensions: 20 X 119 X 115 mm

Weight: 0.2 Kg
