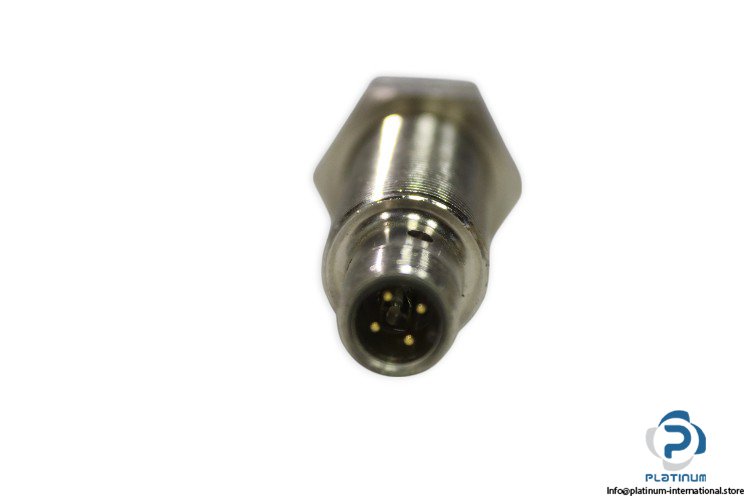

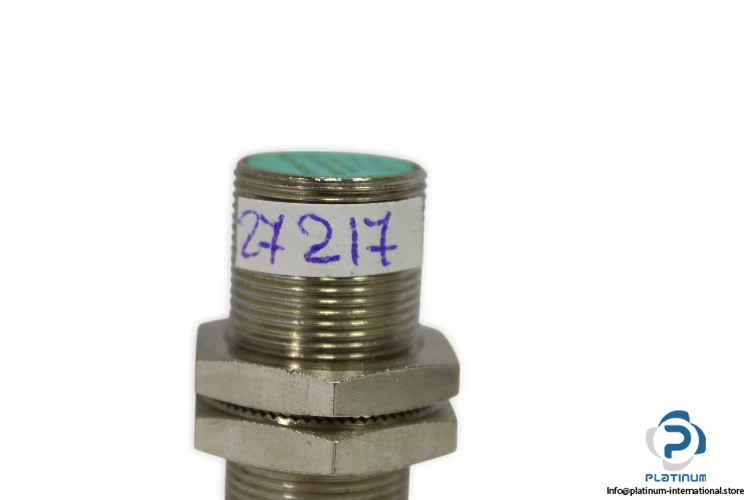

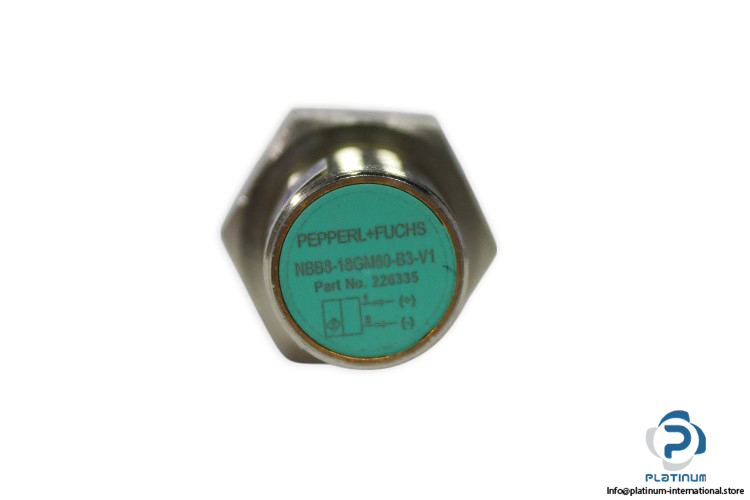

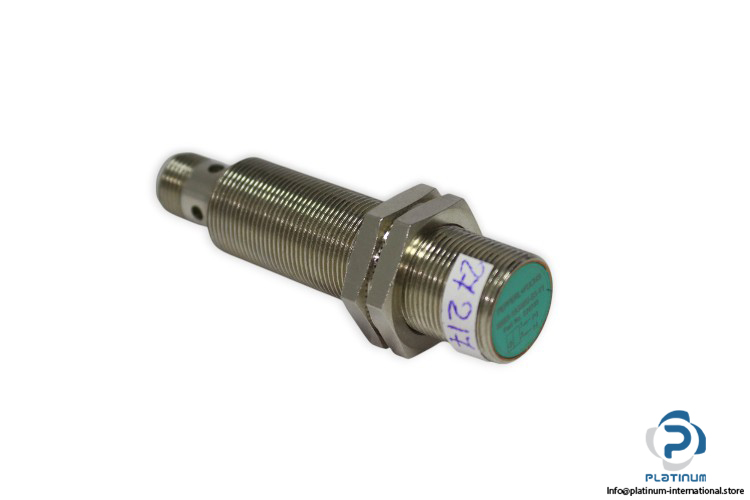

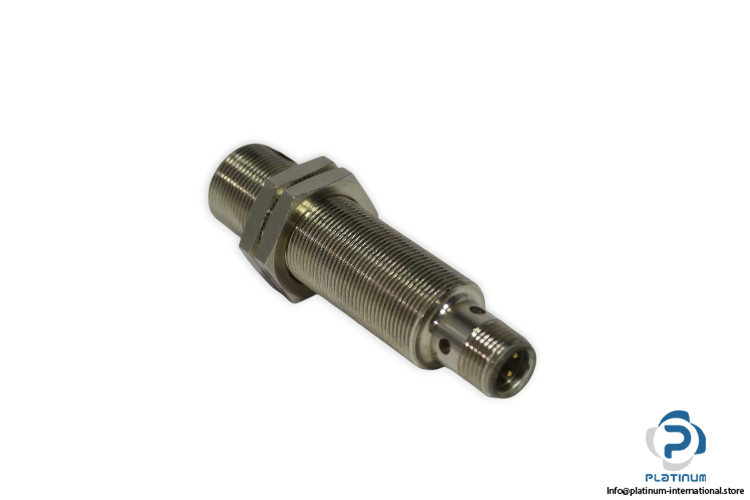

Pepperl+Fuchs NBB8-18GM60-B3-V1 Inductive Sensor

Name: PEPPERL+FUCHS NBB8-18GM60-B3-V1 INDUCTIVE SENSOR
SKU: 1081226
Availability: LimitedAvailability

pepperl-fuchs-NBB8-18GM60-B3-V1-inductive-sensor-(used)

pepperl-fuchs-NBB8-18GM60-B3-V1-inductive-sensor-(used)-1

pepperl-fuchs-NBB8-18GM60-B3-V1-inductive-sensor-(used)-2

pepperl-fuchs-NBB8-18GM60-B3-V1-inductive-sensor-(used)-3

pepperl-fuchs-NBB8-18GM60-B3-V1-inductive-sensor-(used)-4

Gebraucht

Auf Lager2 EinheitenVersandbereit

INDUCTIVE SENSOR

Flush-mountable M18 inductive sensor with 8 mm detection range, programmable NO/NC output, and IP67 protection. Suitable for metal sensing in industrial automation.

Hersteller

PEPPERL+FUCHS

SKU

1081226

Kategorie

Sensors

Zustand

Gebraucht

4-Pin 8 Automation brass Connector Detection Detector Flush hi Housing Inductive Industrial IP67 M12 M18 Metal mm mount NBB818GM60B3V1 nickel-plated No/Nc Output Pepperl+Fuchs programmable Proximity Rated Sensor

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

PEPPERL+FUCHS NBB818GM60B3V1 INDUCTIVE SENSOR

Durable and flush-mountable inductive sensor designed for reliable metal object detection in industrial automation systems. The NBB818GM60B3V1 features a compact M18 cylindrical design, dual programmable output (NO/NC), and high ingress protection for tough environments.

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NBB818GM60B3V1

Part No.: 226335

Rated Operating Distance	8 mm
Assured Operating Distance	0 to 6.48 mm
Operating Voltage	26.5 to 31.9 V
No-Load Supply Current	25 mA
Switching Frequency	0 to 200 Hz
Switching Output	Normally Open / Normally Closed (programmable)
Connector Type	M12 Connector, 4-pin
Enclosure Rating	IP67
Ambient Operating Temperature	-25°C to +70°C
Diameter, Housing Length	M18, 75 mm
Housing Material	Brass, Nickel-Plated
Sensing Face Material	PBT
Mounting	Flush-mountable
