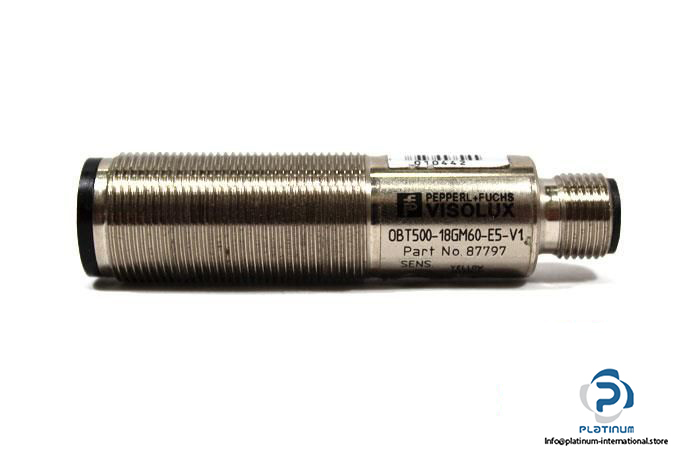

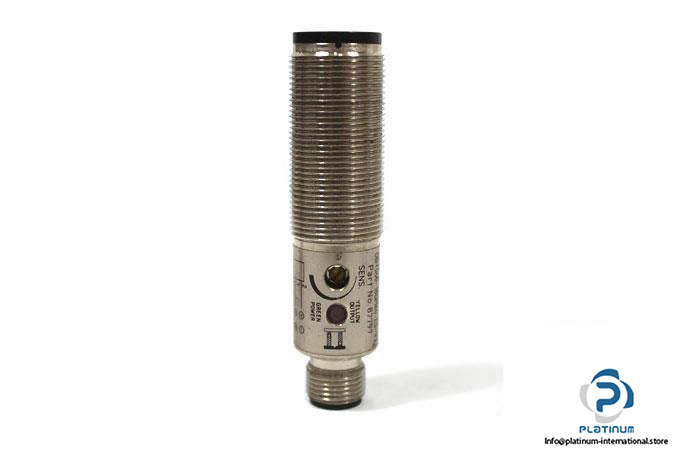

Pepperl+Fuchs OBT500-18GM60-E5-V1 Photoelectric Diffuse Sensor

Manufacturer: PEPPERL FUCHS

Type: PHOTOELECTRIC DIFFUSE SENSOR

Model No.: OBT50018GM60E5V1

Part No.: 87797

Detection range: 0 … 500 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 100 mA

Switching frequency: 500 Hz

Electrical design: PNP

Switching output: light/dark on programmable

Light type: Infrared

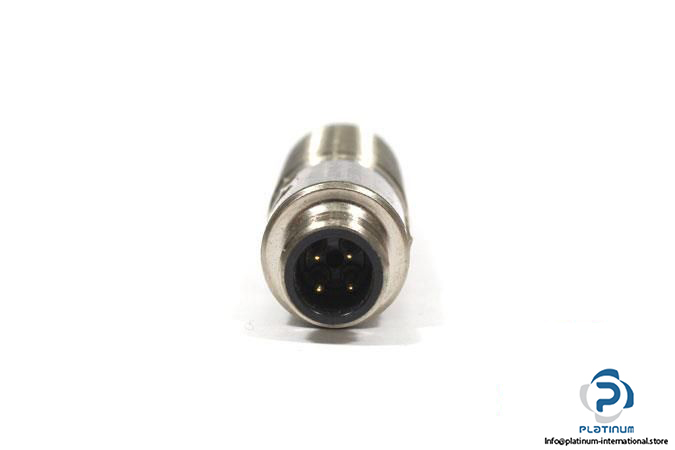

Connector type: M12 connector, 4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 55°C

Diameter, housing length: 18, 60 mm

Weight: 45 g

Housing material: Brass, nickel-plated

Sensing face material: PC

Reference target: standard white 200 x 200 mm

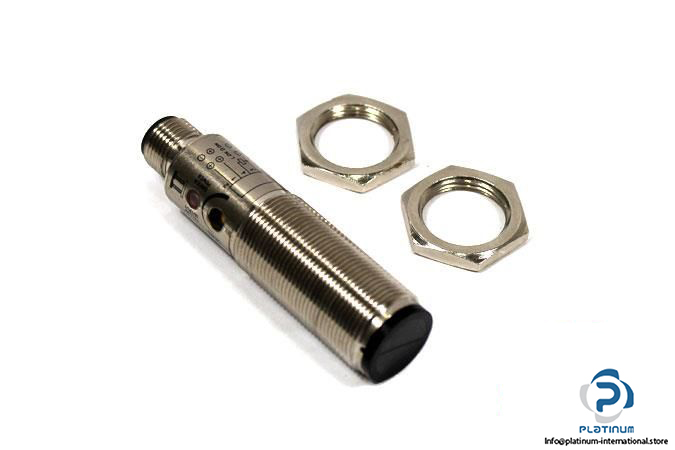

Supplied accessories: 2 lock nuts

Condition: New
