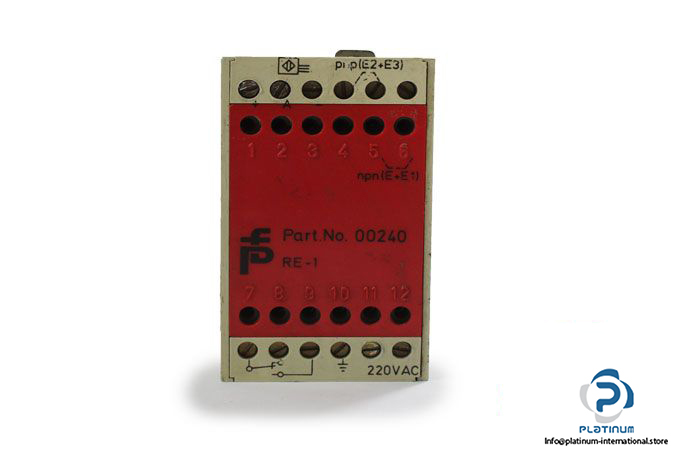

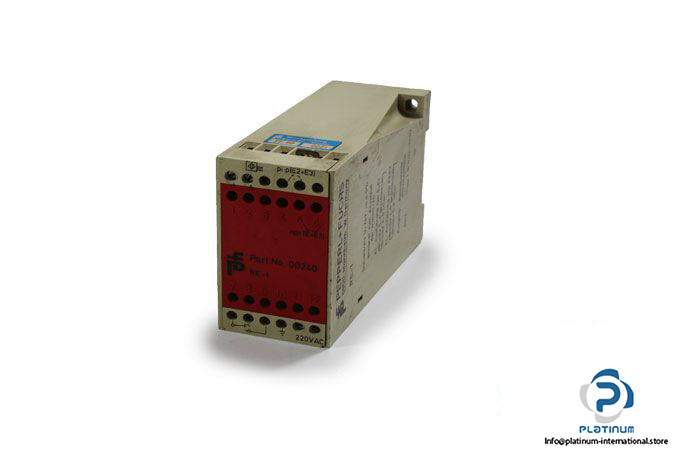

Pepperl+Fuchs RE-1 Isolating Switch Amplifier FOR 3-WIRE Sensors

Manufacturer: PEPPERL+FUCHS

Type: ISOLATING SWITCH AMPLIFIER FOR 3-WIRE SENSORS

Model: RE-1

Part No.: 00240

Rated Operational Voltage: 198 … 253 VAC

Frequency: 45 … 65 Hz

Power Consumption: max. 3 VA

Input:

Current: low: ≤ 0.5 mA / high: ≤ 33 mA

Voltage: low: 0 … 1 V / high: 18 … 24 V

Output:

Connection: terminals 7, 8, 9

Relay: 1 changeover contact

Energised/De-Energised Delay: approx. 20 ms / approx. 10 ms

Contact Loading: 250 V AC/4 A/500 VA / cos ϕ = 0.7 220 V DC 0.1 A; 60 V / 0.6 A ; 24 V / 4 A

Sensor Supply: 22.5 V at 30 mA / 20.0 V at 50 mA / 18.0 V at 70 mA

Dimensions: 40 X 70 X 110 mm

Ambient Temperature: -25 … 60 °C

Weight: 0.26 Kg
