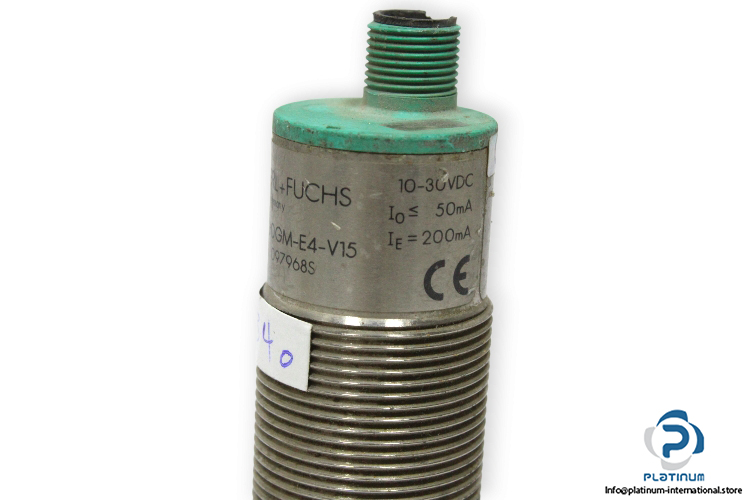

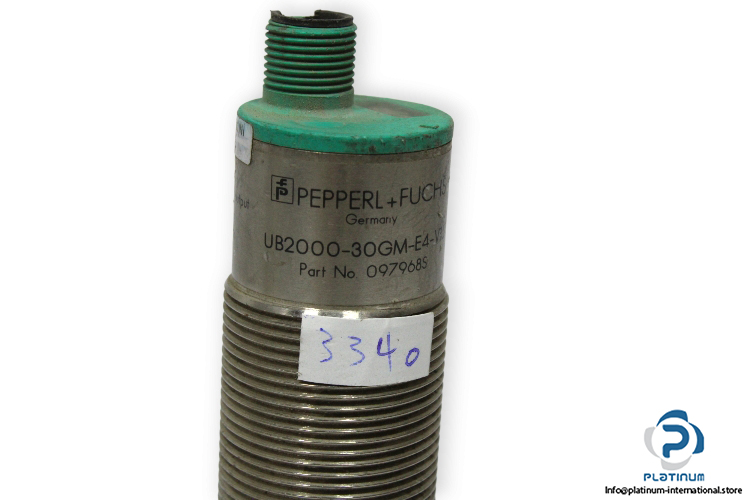

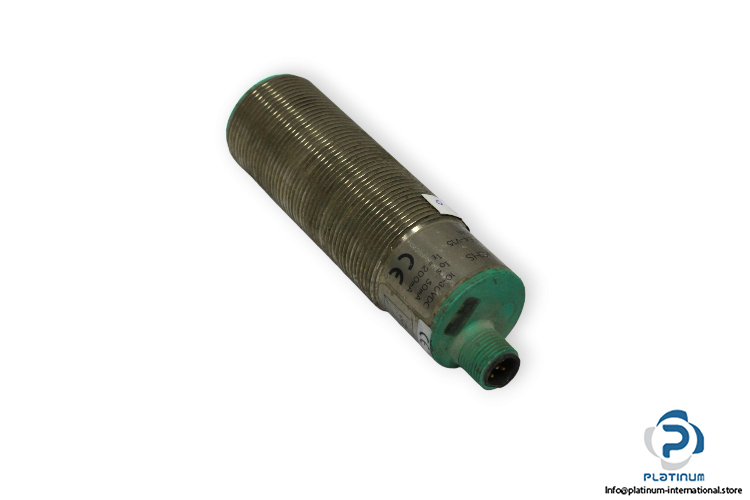

Pepperl+Fuchs UB2000-30GM-E4-V15 Ultrasonic Sensor
Hersteller: Pepperl+Fuchs Typ: Ultraschallsensor Modell: UB2000-30GM-E4-V15 Teilenummer: 097968S
Manufacturer: Pepperl+Fuchs
Type: Ultrasonic Sensor
Model: UB2000-30GM-E4-V15
Part No: 097968S
Sensing range: 80 … 2000 mm
Operating voltage: 10 … 30 V DC
Output type: 1 switch output NPN
Switch type: Normally open/closed
Rated operating current: 200 mA
No-load supply current: ≤ 50 mA
Switching frequency: ≤ 3.3 Hz
Ambient temperature: -25 … 70 °C

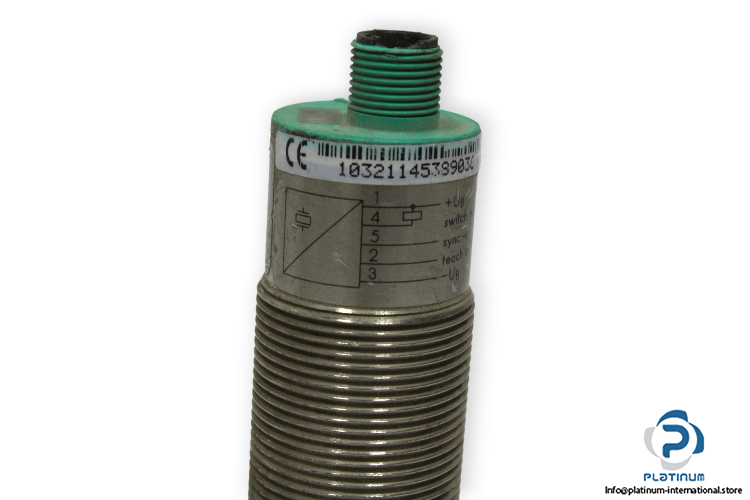

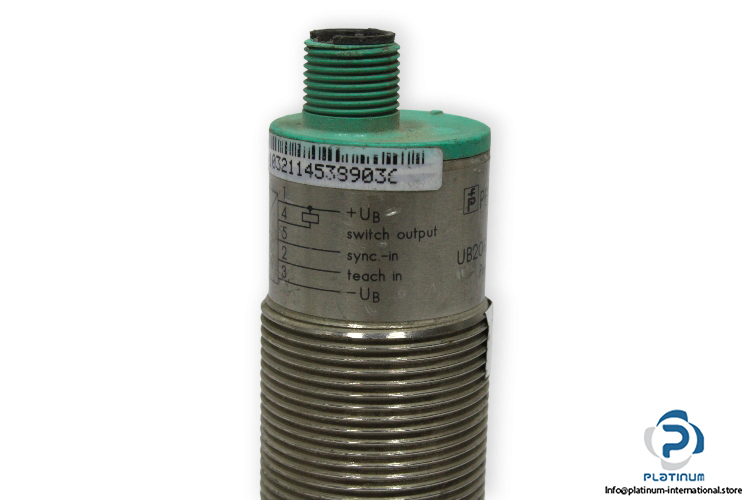

Connection type: Connector plug M12 x 1, 5-pin
Housing diameter, length: 30 X 1.5 mm
Degree of protection: IP65
Housing material: Nickel Plated Brass; Plastic Components: PBT
