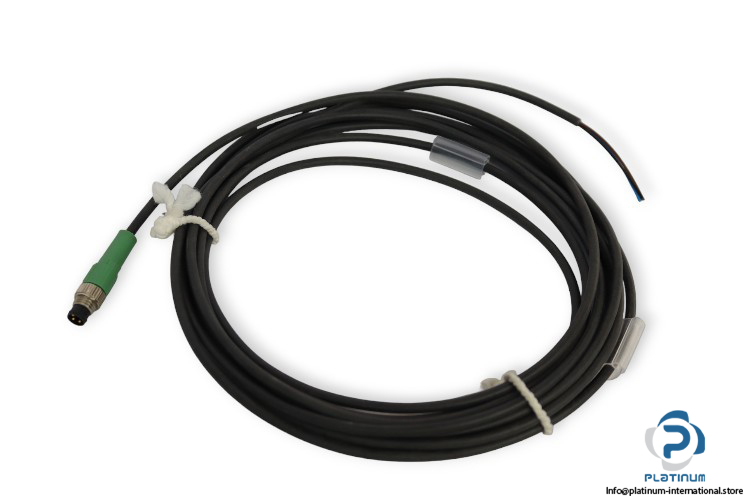

Phoenix Contact 1681680 Actuator AND Sensor Cable

Name: PHOENIX CONTACT 1681680 ACTUATOR AND SENSOR CABLE
SKU: 1034334
Availability: LimitedAvailability

phoenix-contact-1681680-actuator-and-sensor-cable-(New)

phoenix-contact-1681680-actuator-and-sensor-cable-(New)-1

phoenix-contact-1681680-actuator-and-sensor-cable-(New)-2

phoenix-contact-1681680-actuator-and-sensor-cable-(New)-3

Neu

Auf Lager4 EinheitenVersandbereit

Hersteller: PHOENIX CONTACT Typ: Aktuator- und Sensorkabel Modell: 1681680

Hersteller

PHOENIX CONTACT

SKU

1034334

Kategorie

Cables & Connectors

Zustand

Neu

Actuator AND Cable Cables Connectors Contact Phoenix Relays Safety Sensor

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: PHOENIX CONTACT
Type: Actuator and Sensor Cable
Model: 1681680

Rated Voltage: 48 V AC / 60 V DC
Rated Current: 4 A
Tightening Torque (Range): 0.2 Nm

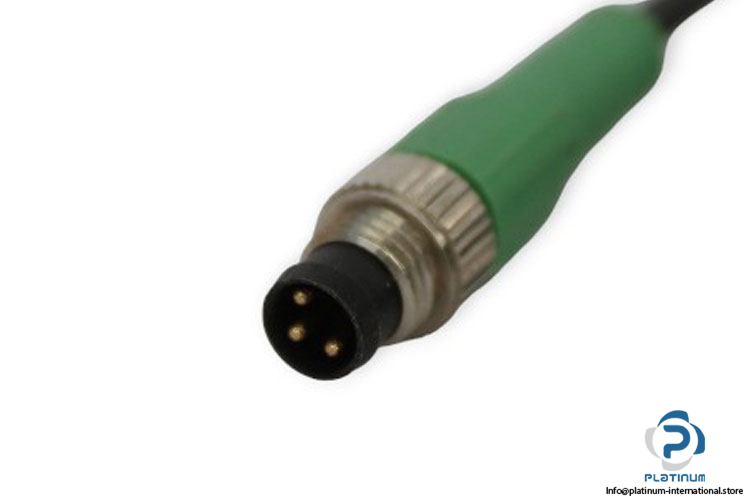

Electrical Connection: Male Plug M8x1, 3-Pin, Straight
Material:
– Contacts: CuZn, Ni/Au
– Contact Carriers: TPU GF
– Connector Body: TPU, Hardly Inflammable, Self-Extinguishing
– Coupling Nut/Screw: Zinc Die-Cast, Nickel-Plated
– Seal: NBR
Cable Jacket: PUR Halogen-Free Black
Cable Diameter, Length: 7.5 mm, 5 m
Connector Diameter, Length: 10, 38 mm
Protection Class: IP65 / IP67/ IP68
Ambient Temperature: -25 … 90 °C
