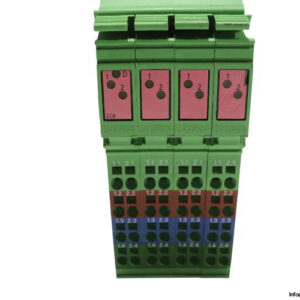

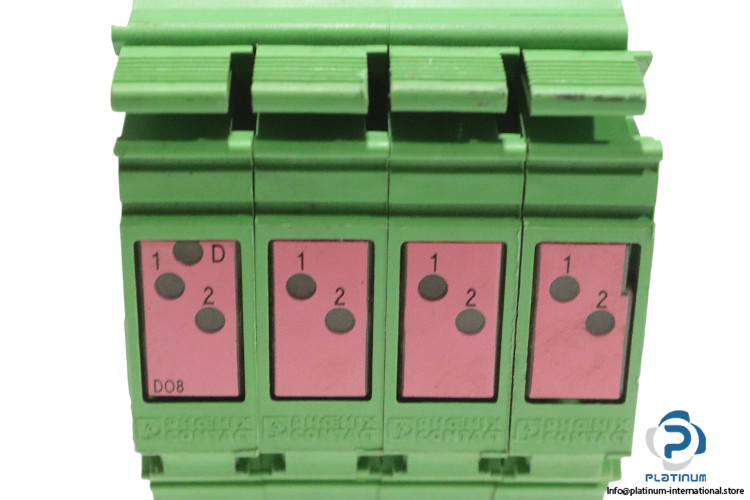

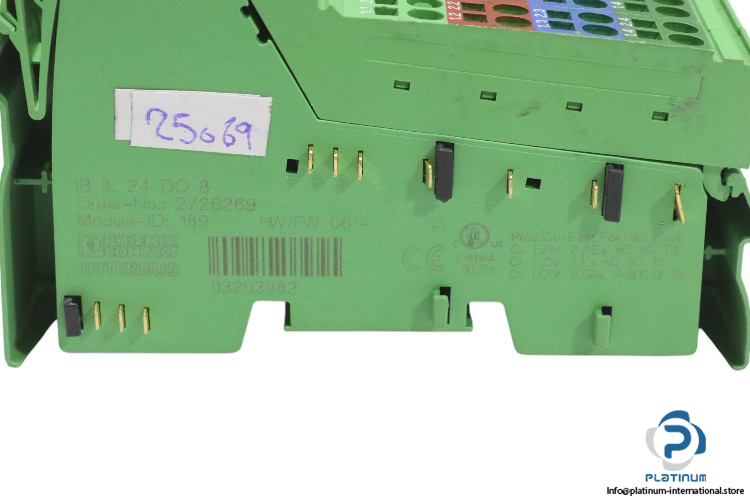

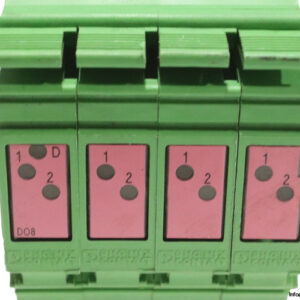

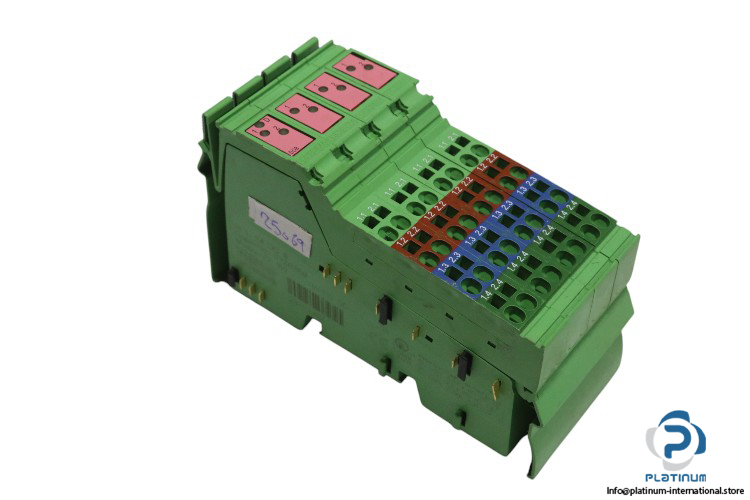

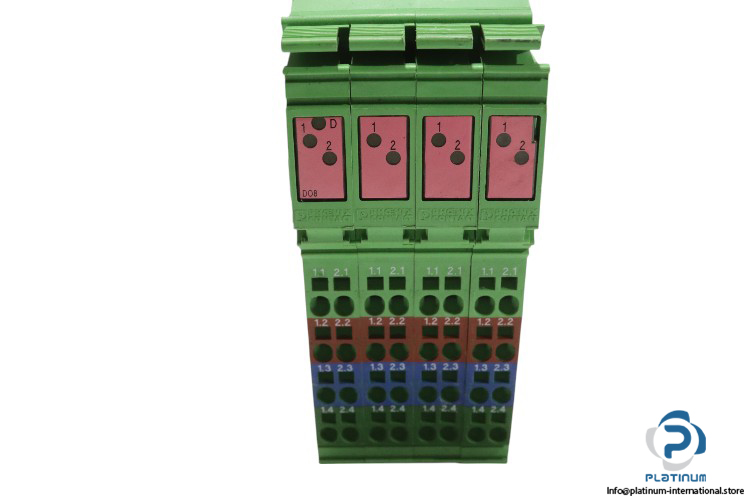

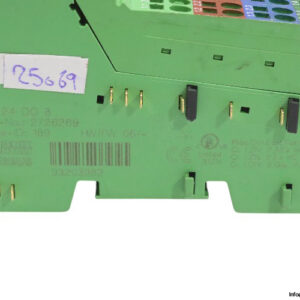

Phoenix Contact IB IL 24 DO 8 Inline Terminal

Inline Terminal

The Phoenix Contact IB IL 24 DO 8 is an 8-channel digital output inline terminal designed for precise signal control in industrial automation environments. Operating at 24 V DC, the terminal features spring-cage connections and supports 2-, 3-, and 4-wire configurations. Each output is protected against overload and short circuits, with a maximum current of 500 mA per channel and 4 A per module. This compact, durable unit ensures safe and efficient operation across a wide ambient temperature range.

• Manufacturer: Phoenix Contact
• Type: Inline Terminal
• Model: IB IL 24 DO 8
• Part No.: 2726269
• Output Name: Digital Outputs
• Output Voltage: 24 V DC
• Type of Connection: Spring-cage connection
• Connection Method: 2-, 3-, 4-wire
• Number of Outputs: 8
• Protective Circuit: Overload and short-circuit protection
• Max Output Current per Channel: 500 mA
• Max Output Current per Module: 4 A
• Nominal Load (Inductive): 12 W
• Ambient Temperature (Operation): -25 °C … 55 °C
• Dimensions (H x W x D): 119.8 x 48.8 x 71.5 mm
