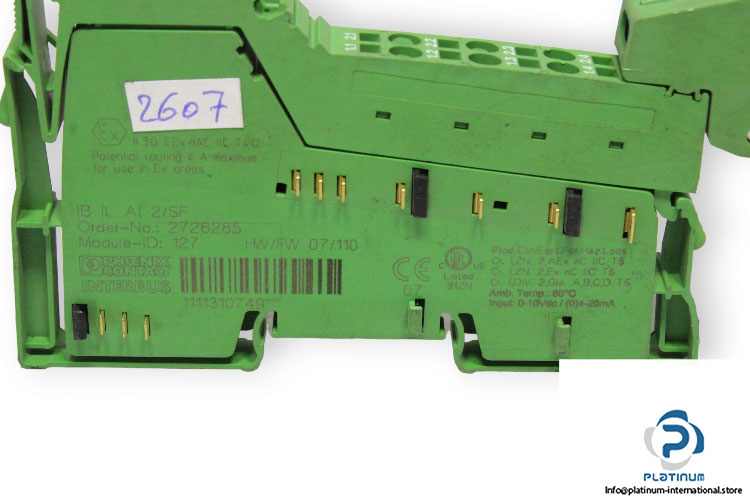

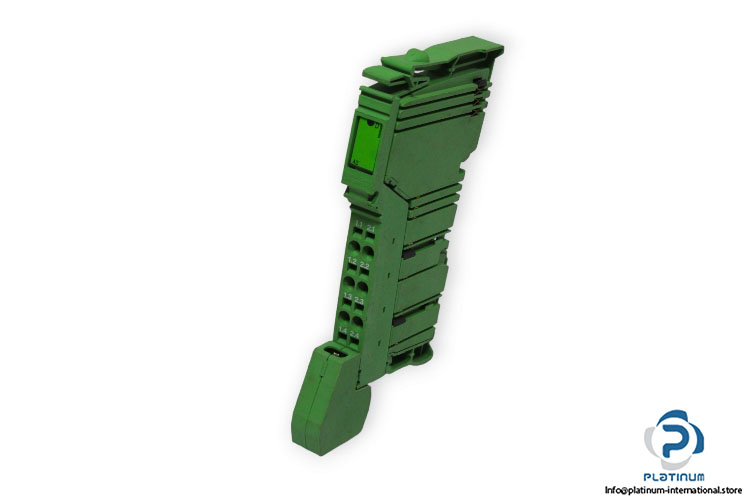

Phoenix Contact IB IL AI 2/SF Inline Terminal

Manufacturer: Phoenix Contact

Type: Inline Terminal

Model: IB IL AI 2/SF

Part No: 2726285

Supply voltage: 24 V DC

Current draw: max. 18 mA, typ. 13 mA

Air pressure (operation): 70 kPa … 106 kPa (up to 3000 m above sea level)

Number of interfaces: 2

Number of inputs: max. 2 (single ended)

Connection method: Inline data jumper

Transmission speed: 500 kbps

Mounting type: DIN rail mounting

Operating Temperature: -25 … +55 °C

Degree of protection: IP20

Type of protection: Explosion protection EX

Dimensions: 12.2 x 119.8 x 71.5 mm
