Phoenix Contact SAC-4P-10,0-PUR/M 8FS Sensor/Actuator Cable
Neu
Auf Lager2 EinheitenVersandbereit
Sensor/Aktor-Kabel PHOENIX CONTACT SAC-4P-10,0-PUR/M 8FS 10 m Sensor/Aktor-Kabel mit M8-Buchse, 4 Polen, 4 A Nennstrom und robuster Industriequalität.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

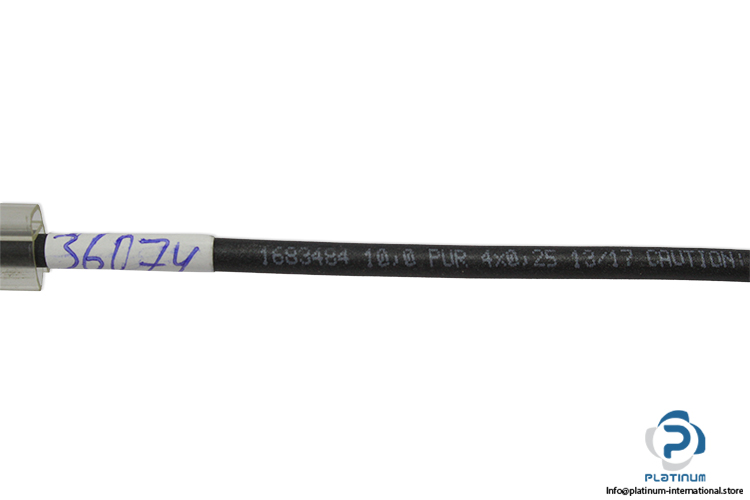

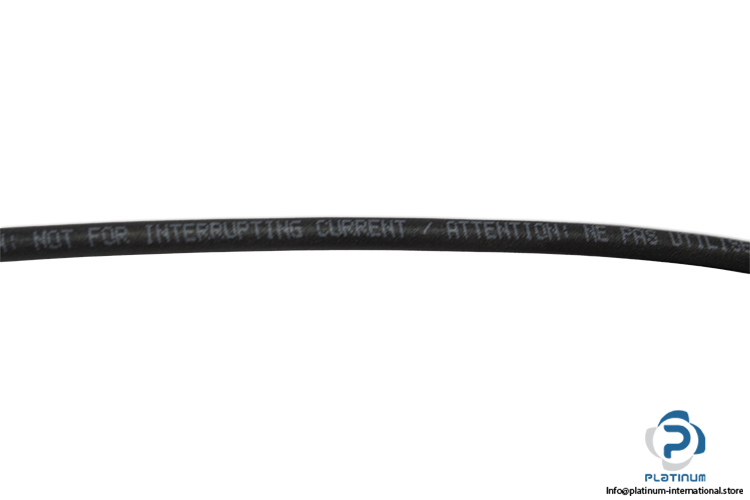

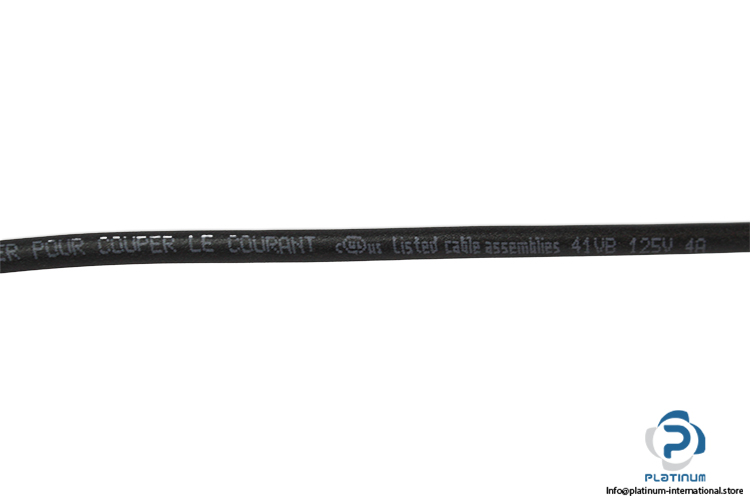

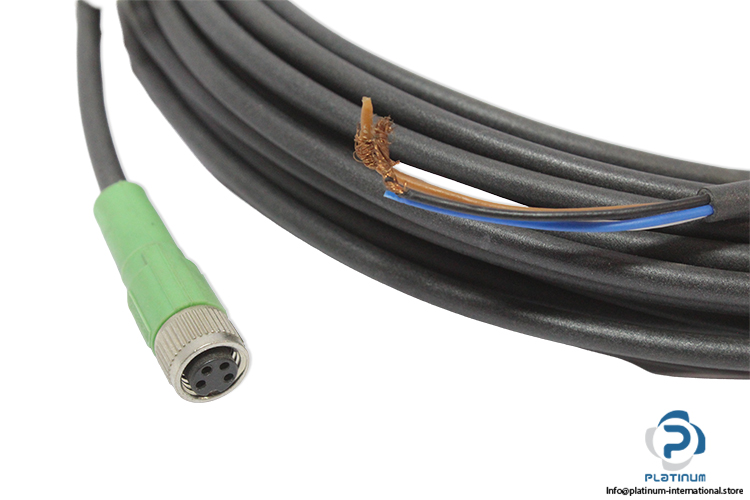

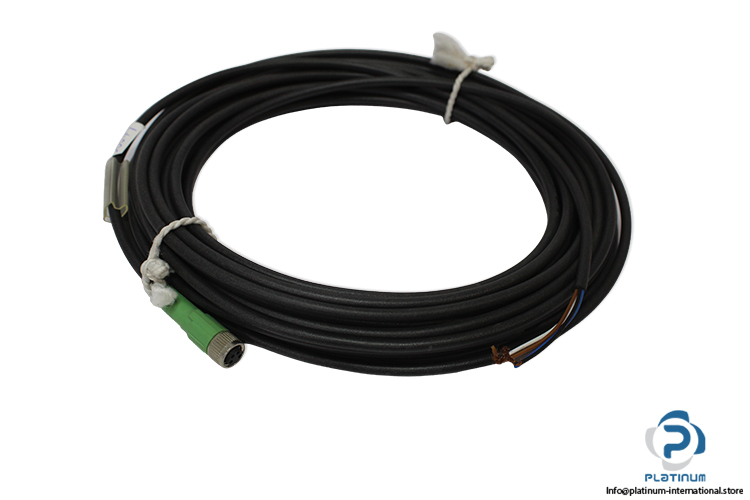

PHOENIX CONTACT SAC-4P-10,0-PUR/M 8FS Sensor/Actuator Cable
The PHOENIX CONTACT SAC-4P-10,0-PUR/M 8FS is a high-quality sensor/actuator cable designed for reliable signal and power transmission in industrial automation systems. With durable materials and robust electrical characteristics, this cable ensures stable performance in demanding environments.
Manufacturer: PHOENIX CONTACT
Type: Sensor/Actuator Cable
Model: SAC-4P-10,0-PUR/M 8FS
Part No.: 1683484
| Cable Length | 10 m |
| Number Of Positions | 4 |
| No. Of Cable Outlets | 1 |
| Shielded | No |
| Coding | A |
| Overvoltage Category | II |
| Degree Of Pollution | 3 |
| Flammability Rating According To UL 94 | HB |
| Seal Material | NBR |
| Material Of Grip Body | TPU, Hardly Inflammable, Self-Extinguishing |
| Contact Material | CuSn |
| Contact Surface Material | Ni/Au |
| Contact Carrier Material | TPU GF |
| Material For Screw Connection | Zinc Die-Cast, Nickel-Plated |
| Insulation Resistance | ‰¥ 100 MΩ |
| Nominal Voltage (UN) | 48 V AC / 60 V DC |
| Nominal Current (IN) | 4 A |
| Insertion/Withdrawal Cycles | ‰¥ 100 |
| Connector 1 | 3-Pins | Male |
| Connection 1 Type | Free Cable End |
| Connector 2 | 3-Wires / Male |
| Connection 2 Type | Socket Straight M8 |
| Cable Information | 41 VB, E221474, 4 A, 125 VAC/DC |
| Material Wire Insulation | PP |
| Single Wire Colors | Brown, White, Blue, Black |
| Nominal Voltage (Cable) | 300 V |
| Test Voltage | 3000 V |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (Cable, Fixed Installation) |
