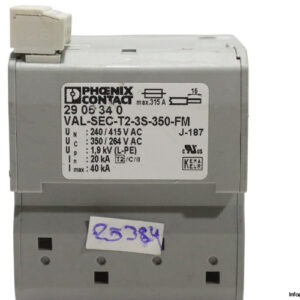

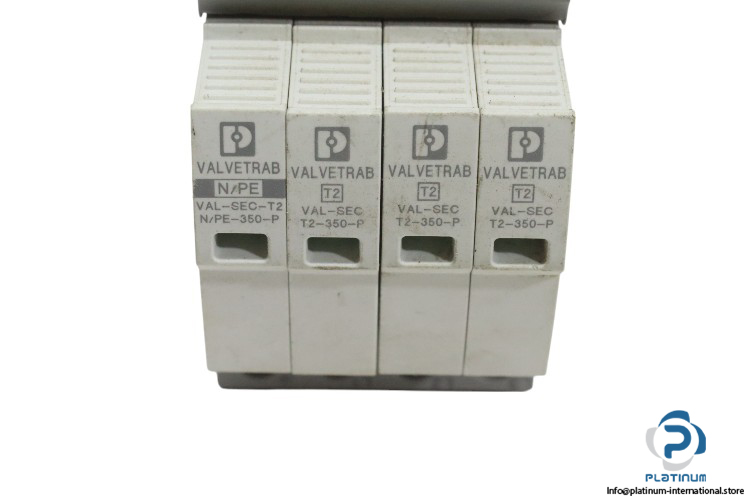

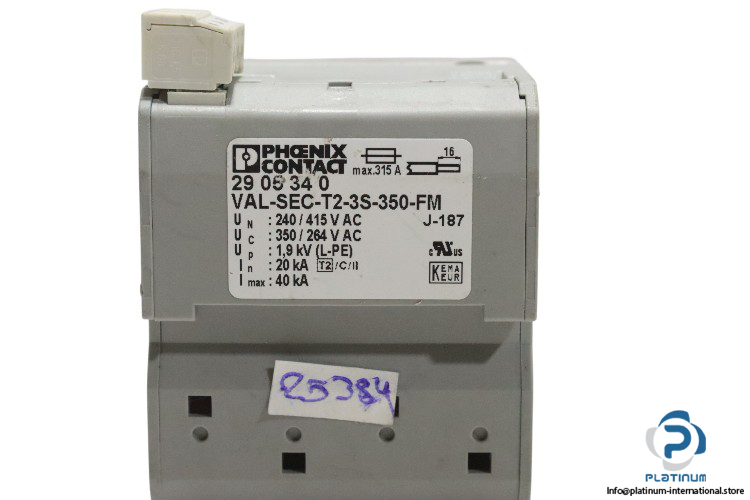

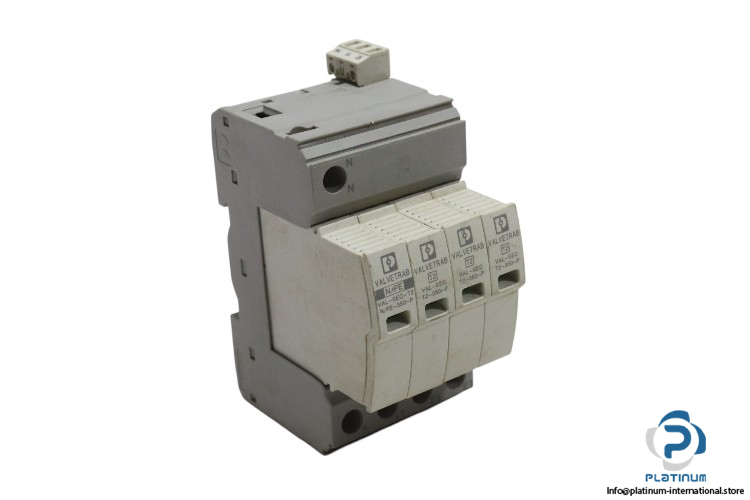

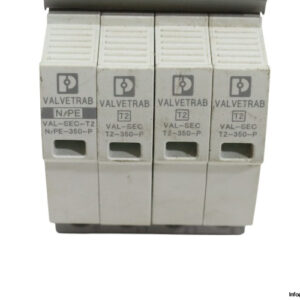

Phoenix Contact VAL-SEC-T2-3S-350-FM Surge Arrester

Phoenix Contact VAL-SEC-T2-3S-350-FM Surge Arrester

The Phoenix Contact VAL-SEC-T2-3S-350-FM Surge Arrester offers reliable protection for electrical systems against voltage spikes. It is designed to handle high discharge currents, with a maximum discharge capacity of 40 kA, ensuring the safety and stability of your equipment in industrial environments.

Manufacturer: PHOENIX CONTACT

Type: Surge Arrester

Model: VAL-SEC-T2-3S-350-FM

Order No: 2905340

Technical Data:

• Nominal Frequency (Fn): 50 Hz (60 Hz)
• Switching Function: Changeover contact
• Nominal Voltage: 240 / 415 V AC
• Nominal Discharge Current: 20 kA
• Max. Discharge Current: 40 kA
• Operating Voltage: 5 V AC … 250 V AC, 125 V DC (200 mA DC)
• Operating Current: 5 mA AC … 1 A AC, 1 A DC (30 V DC)
• Connection Method: Screw connection
• Screw Thread: M5
• Tightening Torque: 4.5 Nm
• Stripping Length: 16 mm
• Dimensions: 49.2 x 97.9 x 74.5 mm
