Piab F30-2 Suction CUP
Gebraucht
Auf Lager4 EinheitenVersandbereit
Suction Cup
The PIAB F30-2 suction cup is made of chloroprene, offering flexibility, 30 mm size, and a wide temperature range of -40 to 110 °C, ideal for smooth and curved surface handling.30AutomationChloropreneComponentcupFF30-2FlexibleGrippinghandlingIndustrialmmPiabSeriesSuctionSystemvacuum
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

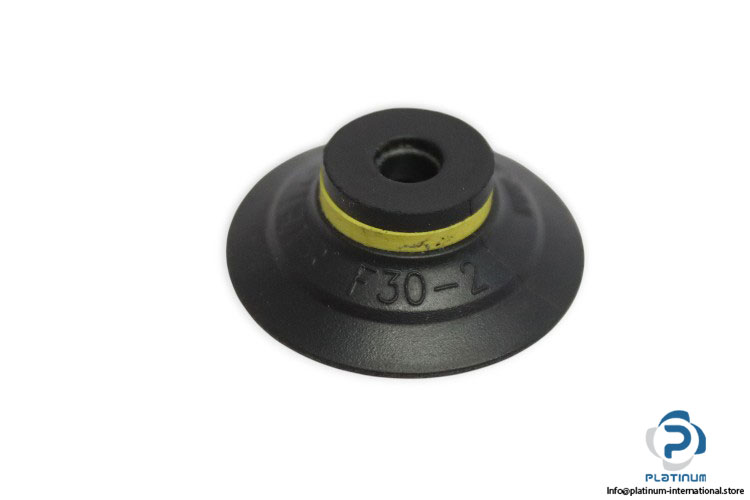

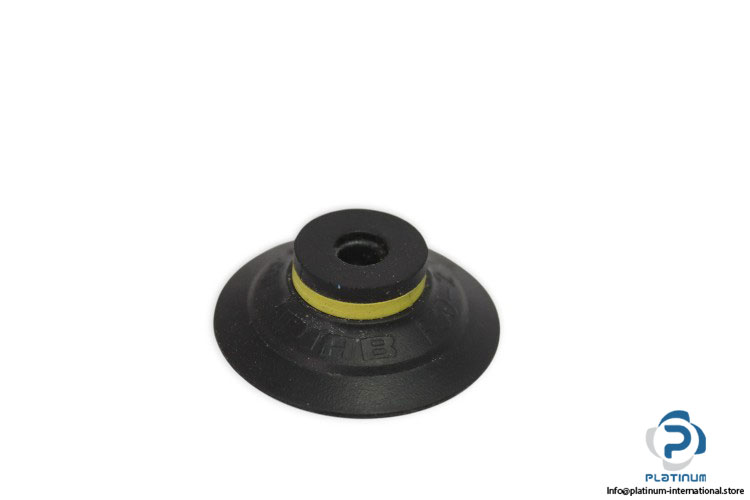

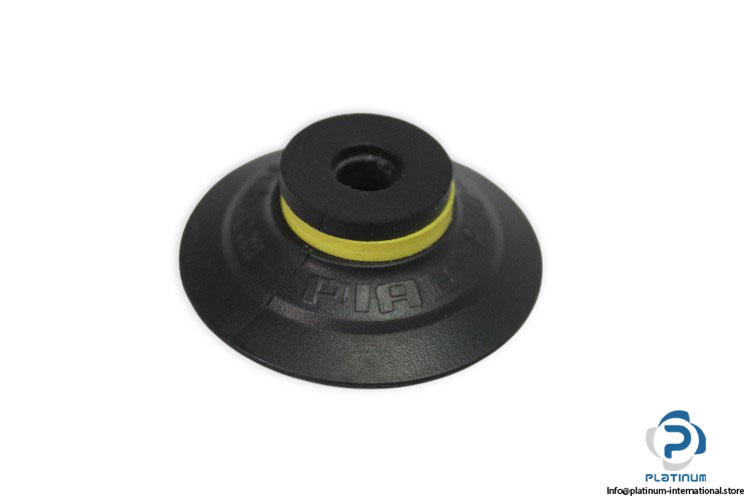

PIAB F30-2 Suction Cup
The PIAB F30-2 Suction Cup is a compact and flexible vacuum component designed for reliable gripping of smooth or slightly curved surfaces. Made from durable chloroprene material, it offers long service life and excellent temperature resistance for industrial automation applications.
Manufacturer: PIAB
Type: Suction Cup
Model: F30-2
| Material | Chloroprene (CR) |
| Suction Cup Model | F |
| Weight, min. | 2.2 g |
| Suction Cup Size (Name, for Filtering) | 30 mm |
| Volume | 2 cm³ |
| Movement, Vertical Max. | 2.8 mm |
| Curve Radius, Min. | 25 mm |
| Outer Diameter, Min. | 32 mm |
| Height | 10.4 mm |
| Outer Diameter, Actuated | 32.6 mm |
| Temperature Range | -40 “ 110 °C |
| Hardness | 50 °Shore A |
