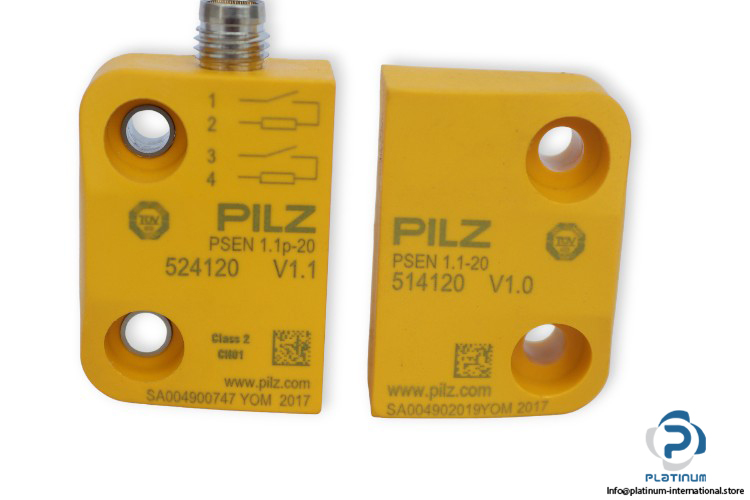

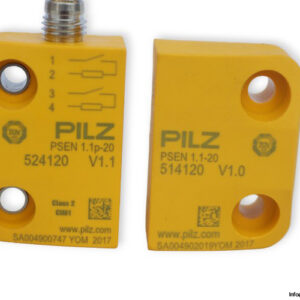

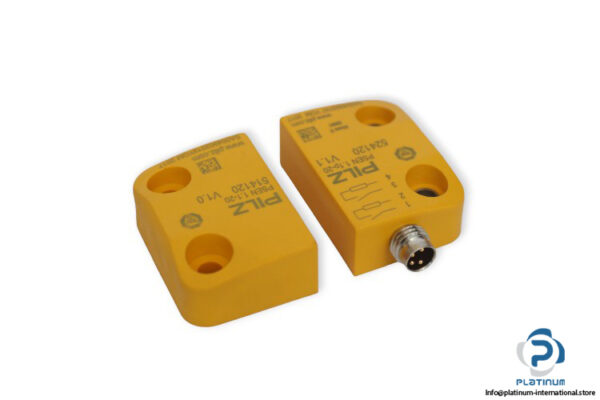

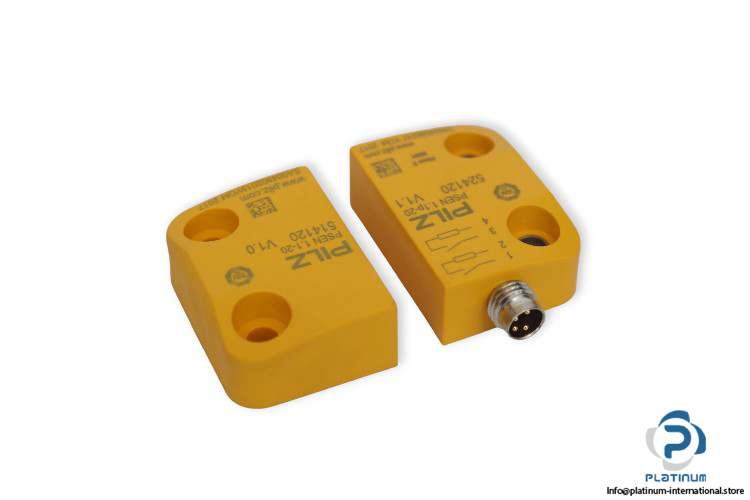

Pilz Psen 1.1P-20 Magnetic Safety Switch

Manufacture: Pilz
Type: Magnetic Safety Switch
Coded Magnetic Switch: PSEN 1.1P-20
Additional Coded Magnet: PSEN 1.1-20
Part No.: 524120 / 514120

Switching voltage: 24 V DC
Contact: 2 NO contacts
Assured operating distance: 8 mm
Assured release distance: 26 mm
Min. operating distance S_omin: 0.5 mm
Max. switching current for reed contacts: 0.50 A
Max. breaking capacity for reed contacts: 10.0 W
Frequency: 10 … 55 Hz
Connection type: M8
Protection type: IP65,IP67
Housing material: PBT
Cable: LiYY 4 x 0,25 mm²
Ambient temperature: -10 … 55°C
Dimensions: 42.8 x 26 x 13 mm
