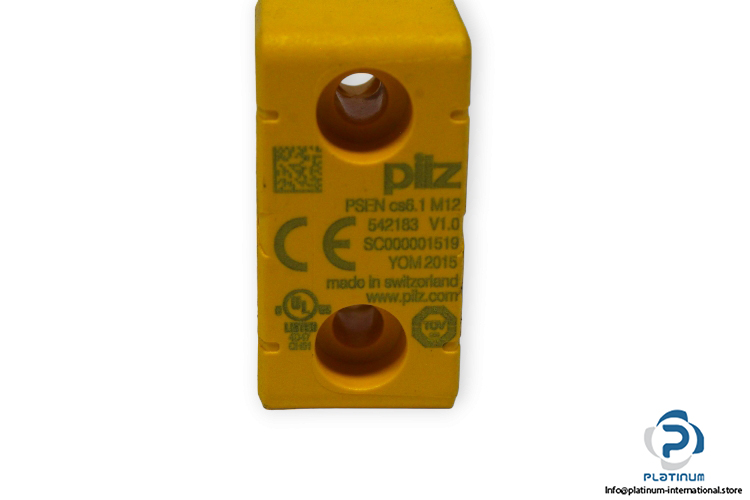

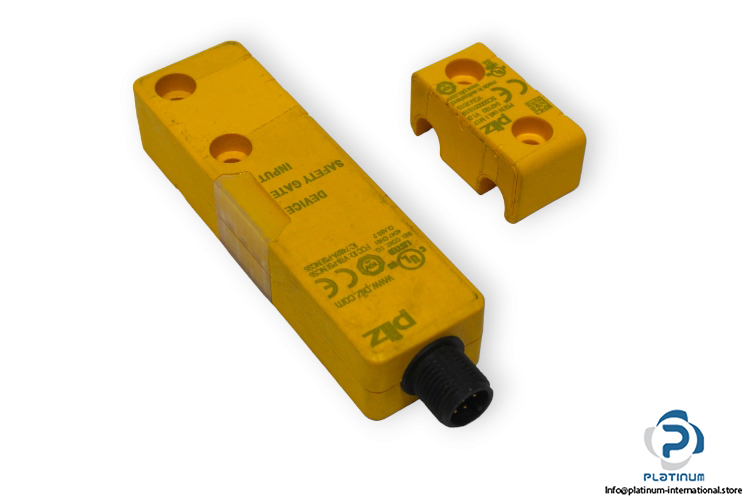

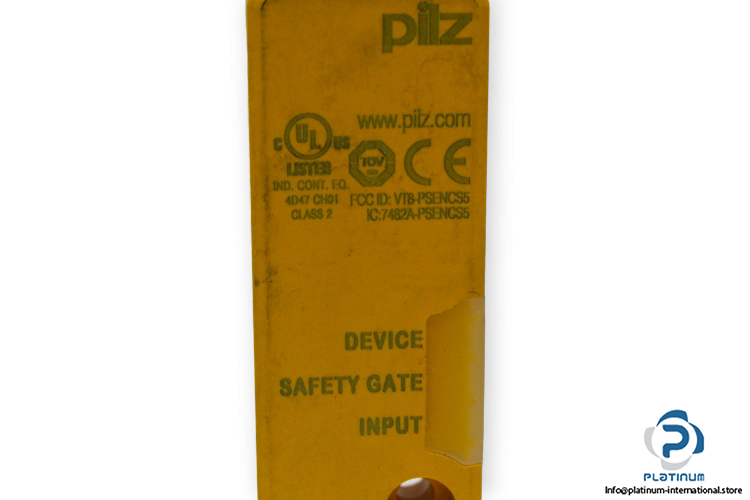

Pilz Psen CS6.1 M12 Magnetic Safety Switch

Manufacturer: PILZ
Type: Magnetic Safety Switch
Model: PSENCS6.1M12
Order No.: 542183

Voltage: 24 V DC
Current: 1.6 … 3 mA
No. of Input: 2
Max. torque setting for fixing screws: 1 Nm
Connection type: M12, 8-pin male connector
Pollution degree: 3

Rated insulation voltage: 75 V

Rated impulse with stand voltage: 1,00 kV
Material: PA+GF, PBT, polycarbonate
Operating Temperature: -25 … 70 °C
Degree of protection: IP66/IP67
Actuator Dimension: 18 X 37 X 19 mm
Dimensions: 26.4 X 101.6 X 19 mm
