Pizzato SR BD41AM0.1-B02F Magnetic Safety Sensor
Neu
Auf Lager23 EinheitenVersandbereit
65,00$
Magnetic Safety Sensor
Pizzato SRBD41AM0.1-B02F magnetic safety sensor from the SR B Series with 24 V AC supply, 2NC + 1NO safety contacts, and IP67/IP69K technopolymer housing for industrial machine guard monitoring.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Pizzato SRBD41AM0.1-B02F Magnetic Safety Sensor

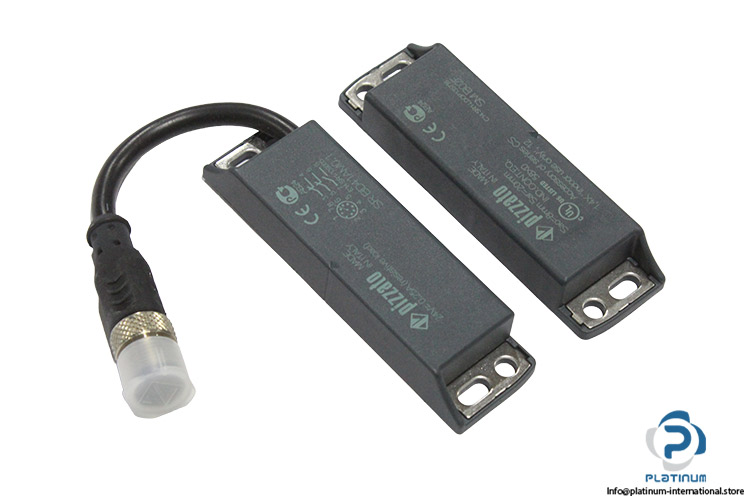

The Pizzato SRBD41AM0.1-B02F magnetic safety sensor from the SR B Series is designed for safety monitoring of machine guards, doors, and protective systems in industrial automation. This safety sensor system includes a receiver and actuator unit to ensure reliable door position detection and safety circuit control.
Manufacturer: Pizzato
Type: Magnetic Safety Sensor
Series: SR B Series
Model: SRBD41AM0.1-B02F
Code: E14 SR1-139805
Sender (Actuator Model): SM B02F
Receiver (Sensor Model): SR BD41AM0.1
Housing:
Contacts:
2NC (With Door Closed) + 1NO
Type Of Cable Or Connector:

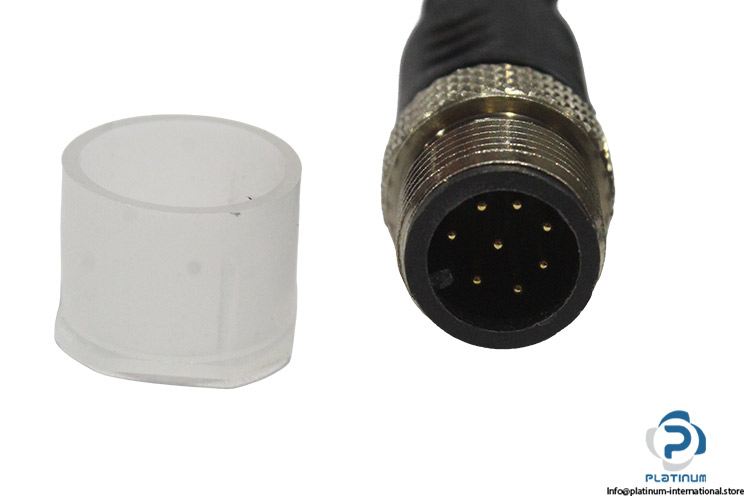

PVC cable, length 0.1 m with M12 connector, 8 pole
Actuator:
| Rated Voltage | 24 V AC |
| Rated Current | 0.25 A |
| Rated Insulation Voltage | 120 V AC |
| Technopolymer housing with metal fixing plates Protection Degree | IP67 and IP69K |
| Actuation Distance | 8 mm |
| Assured Operating Distance (SAR) | 20 mm |
| Torque | 0.8 / 2 Nm |
| Protection Degree | IP67 |
| Operating Temperature | -25 / 80 °C |
