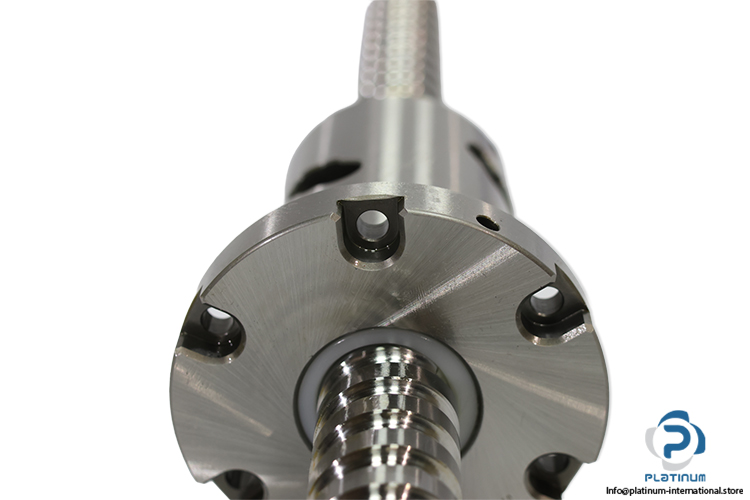

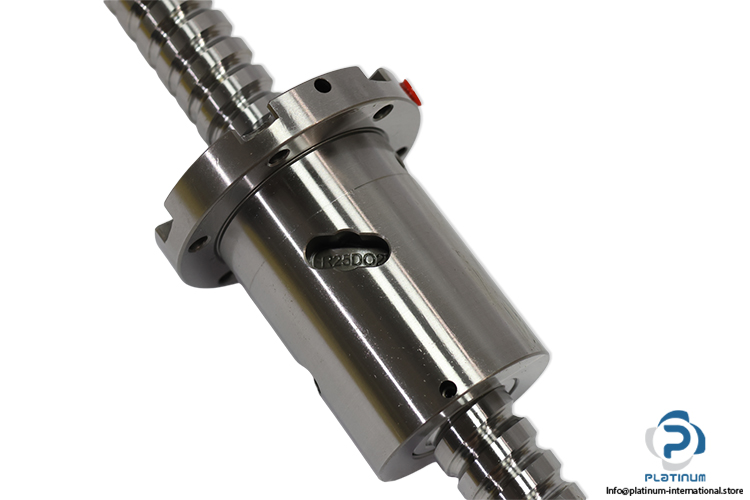

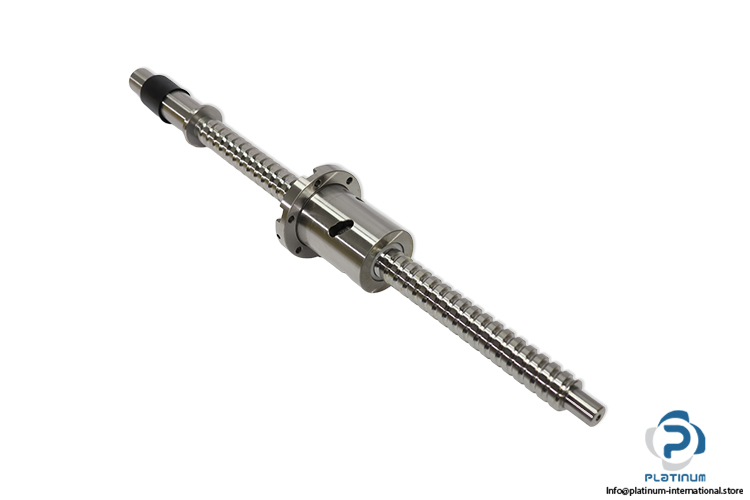

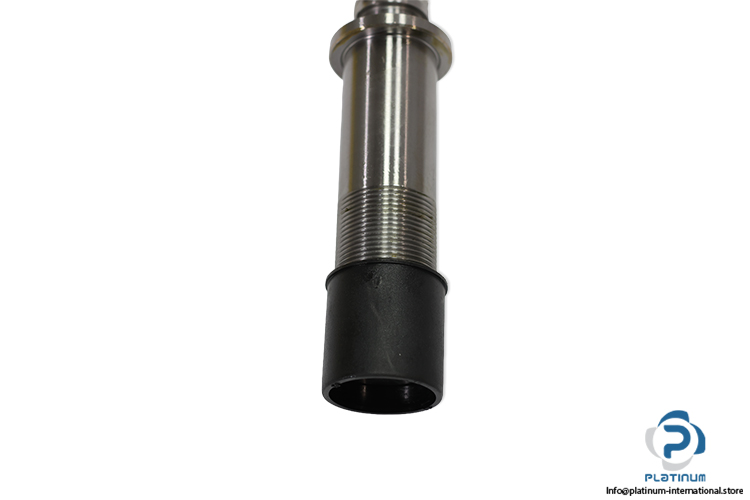

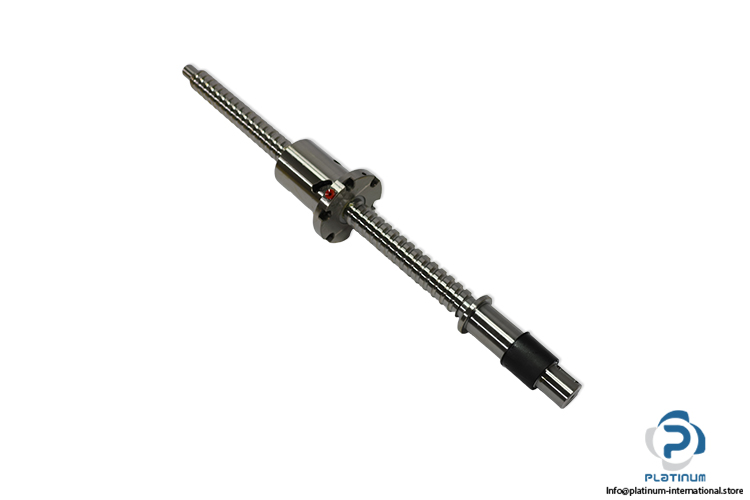

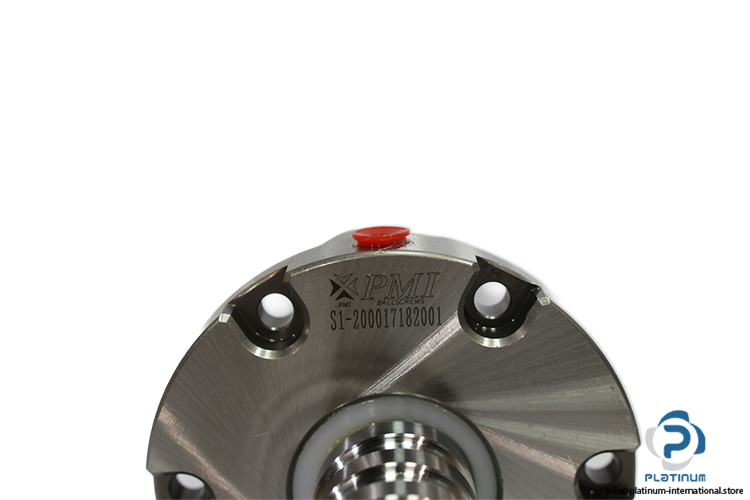

PMI R25-10T4-FSIC-406-545-0.018 Ball Screw
Neu
Auf Lager1 EinheitVersandbereit
Ball Screw The PMI R25-10T4-FSIC-406-545-0.018 Ball Screw features a 25 mm nominal diameter and 10 mm lead, providing precise and reliable linear motion for industrial machinery and automation applications
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

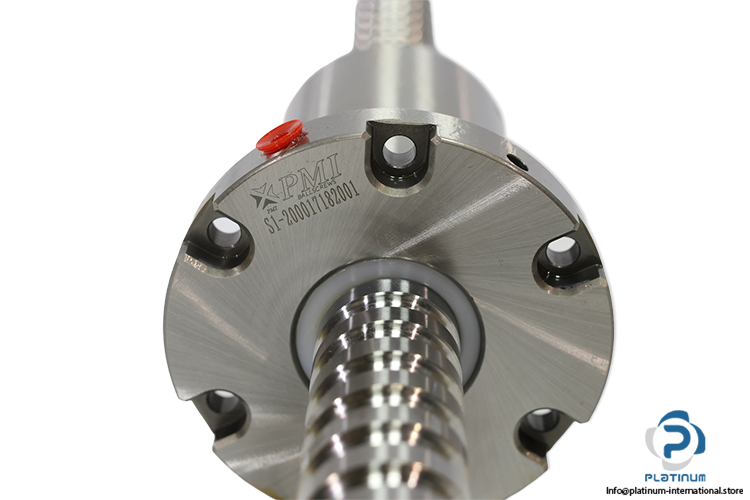

| Code | S1-200017182001 |
| Size | 25 x 10 R |
| Nominal Diameter | 25 mm |
| Lead P | 10 mm |
| Number of turns/circuits | 4 turns |
| Ball Diameter | 4.762 mm |
| Number of starts | 1 |
| Direction of Lead | Right-Hand Thread |

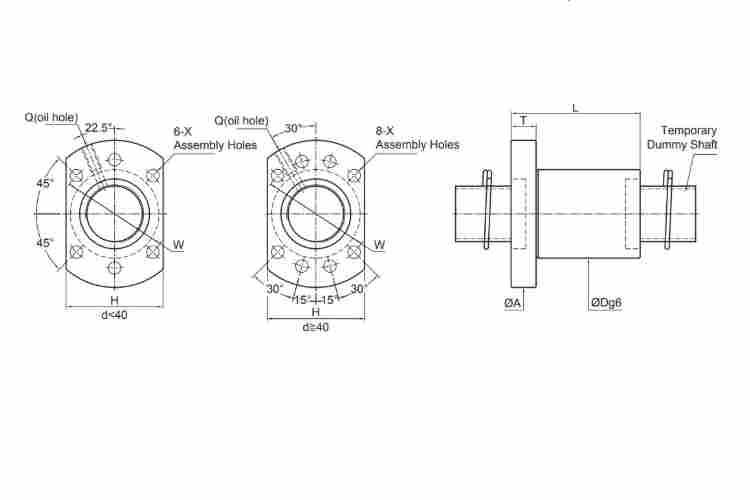

| Nut outer diameter | 40 mm |
| Flange diameter | 62 mm |
| Flange thickness | 12 mm |
| Cutting Flange Width | 48 mm |
| Nut length | 85 mm |
| Threaded length | 406 mm |
| Total screw length | 545 mm |
| Dynamic Load Rating C | 2900 kgf |
| Static Load Rating C0 | 6990 kgf |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101086 |
| Weight | 4 |
