PMI MSB20TSSSFCN Linear Guideway Carriage
Neu
Auf Lager12 EinheitenVersandbereit
LINEAR GUIDEWAY CARRIAGE PMI MSB20TSSSFCN Linearführungswagen, quadratischer Typ mit leichtem Vorspann, Genauigkeitsklasse N und Staubschutz SS. Kompakte und zuverlässige Lösung für präzise lineare Bewegung.
20bearingBlockCarriageDustGuideGuidewayIndustrialLightLinearMotionMSB20TSSSFCNPMIPrecisionPreloadProtectionSizeSquareSSType
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
PMI MSB20TSSSFCN LINEAR GUIDEWAY CARRIAGE
The PMI MSB20TSSSFCN is a precision linear guideway carriage designed for smooth and accurate motion in industrial applications. With a compact square type carriage, light preload, and reliable dust protection, it ensures stability and long service life.
Manufacturer: PMI
Type: Linear Guideway Carriage
Model: MSB20TSSSFCN
Code: WL-4943515-371

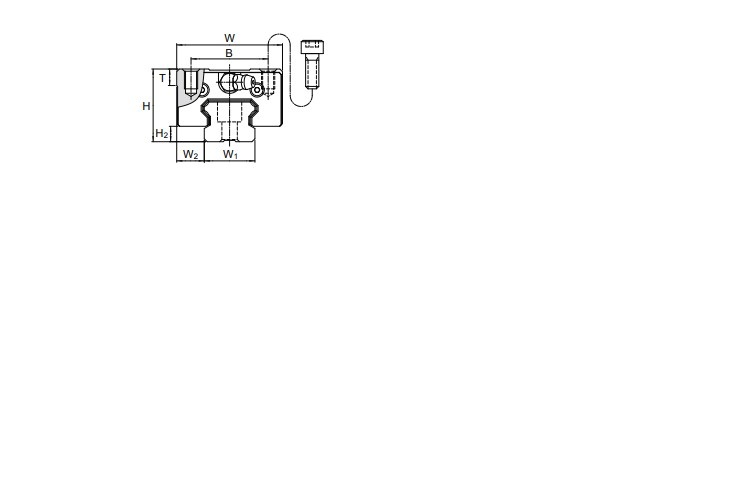

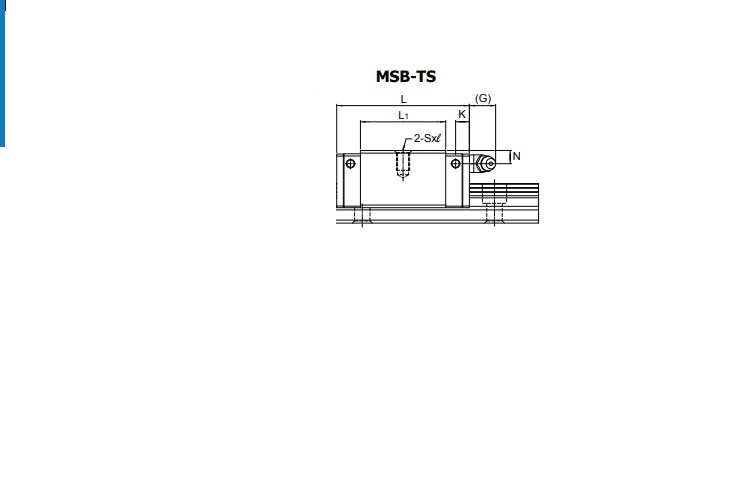

| Size | 20 |
| Height of System | 28 mm |
| Height of Block | 22 mm |
| Width | 42 mm |
| Length | 48 mm |
| B | 32 mm |
| Dynamic Load Rating | 9700 N |
| Static Load Rating | 14200 N |
| Preload | FC (Light preload) |
| Accuracy Grade | N |
| Carriage Type | TS (Square type) |
| Dust Protection Option of Carriage | SS |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing |
