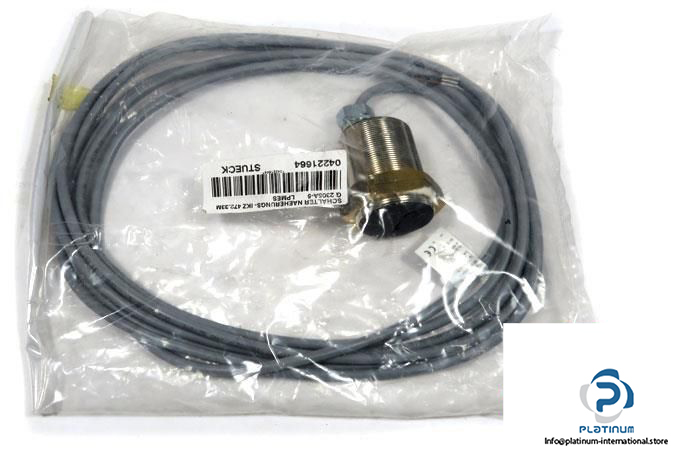

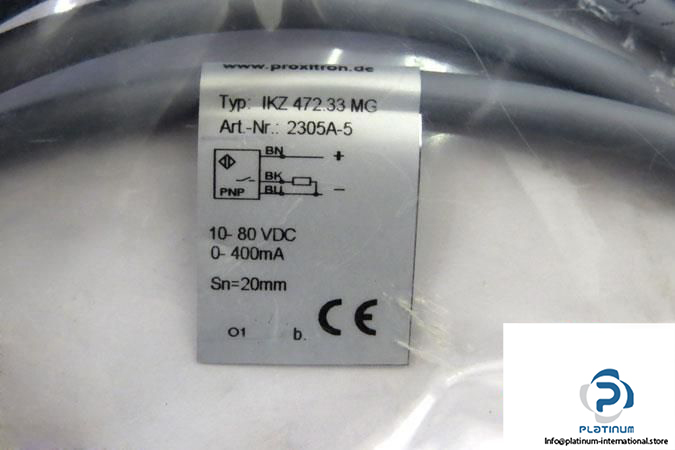

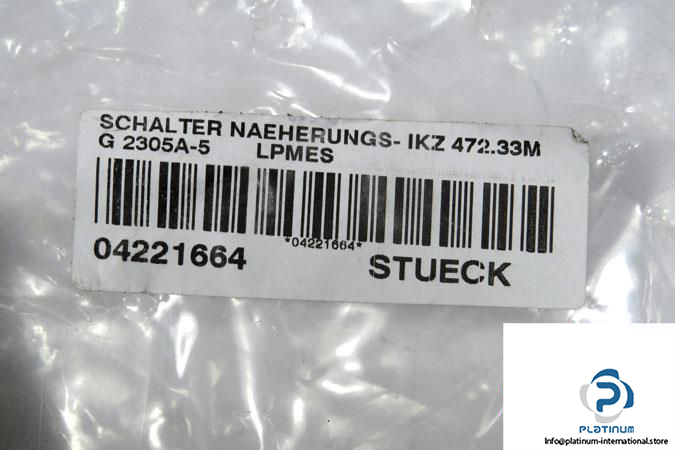

Proxitron IKZ 472.33 MG Inductive Proximity Switch

Manufacturer: PROXITRON

Type: INDUCTIVE PROXIMITY SWITCH

Model: 472.33 MG

Art Nr.: 2305A-5

Sensing Range: 20 mm

Operating Voltage: 10 … 80 V DC

Switching frequency:  100 Hz

Load current max.: 0 … 400 mA DC

Electrical design: PNP

Output Function: Normally open

Connector type, length: Cable, 5 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -20 … 80°C

Diameter, Housing length: 46, 70 mm

Material: Nickel-plated brass

Mounting: Flush mountable

Supplied Accessories: 2 lock nuts

Condition: New
