RBX RBH30RSSG1 Linear Guideway Block
Neu
Auf Lager17 EinheitenVersandbereit
59,99$
Mecaline RBX Linearführungsblock RBH30RSS G1, Größe 30, rechteckiger Typ, mit 50,4 kN dynamischer und 57,1 kN statischer Tragfähigkeit, präzisionsgefertigt für industrielle Anwendungen.
3050.457.1BlockDynamicG1GuidewayIndustrialkNLinearLoadMecalineMotionPrecisionRBH30RSSRBXRectangularSizeStatic
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Mecaline RBX Linear Guideway Block RBH30RSS G1
The Mecaline RBX Linear Guideway Block RBH30RSS G1 is a high-performance, rectangular standard type block designed for precision linear motion applications. With excellent load ratings and a robust sealing system, it ensures reliable operation in demanding environments.
🔧 Technical Specifications:
- Manufacturer: Mecaline RBX
- Type: Linear Guideway Block
- Model: RBH30RSS G1
- Size: 30
- Block Type: R, Rectangular standard type
- Basic Load Ratings:
- Dynamic C: 50.4 kN
- Static C0: 57.1 kN
- Type of Seal: SS, End seal + Inside seal
- Symbol of Clearance: G1, light pre-load

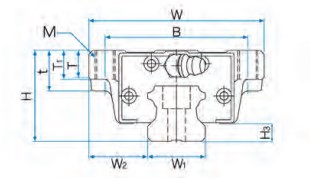

📠Dimensions:
- Total Height (H): 45 mm
- Height of Block (H-H3): 37.5 mm
- Block Width (W): 60 mm
- Block Length (L): 97.8 mm
- B: 40 mm
- C: 40 mm
Optimized for high load capacity and precision, the RBH30RSS G1 linear guideway block is ideal for industrial applications requiring smooth and accurate linear motion.
