RBX RBH30RSSG1 Linear Guideway Block

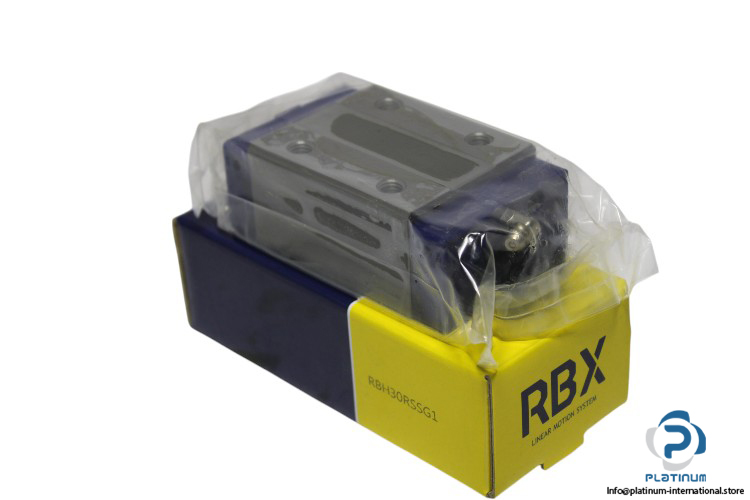

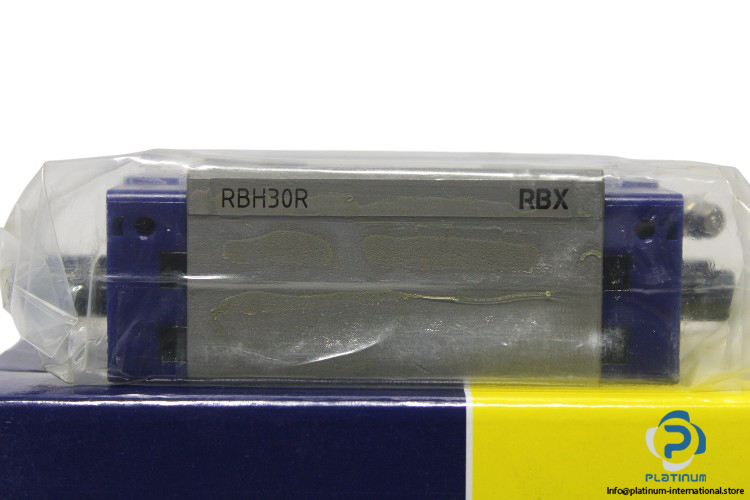

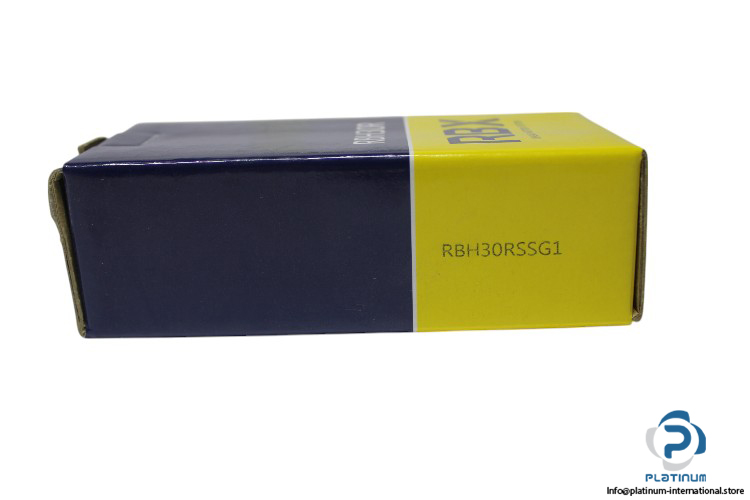

Mecaline RBX Linear Guideway Block RBH30RSS G1

The Mecaline RBX Linear Guideway Block RBH30RSS G1 is a high-performance, rectangular standard type block designed for precision linear motion applications. With excellent load ratings and a robust sealing system, it ensures reliable operation in demanding environments.

🔧 Technical Specifications:

• Manufacturer: Mecaline RBX
• Type: Linear Guideway Block
• Model: RBH30RSS G1
• Size: 30
• Block Type: R, Rectangular standard type
• Basic Load Ratings:
  • Dynamic C: 50.4 kN
  • Static C₀: 57.1 kN
• Type of Seal: SS, End seal + Inside seal
• Symbol of Clearance: G1, light pre-load

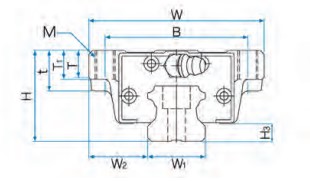

📏 Dimensions:

• Total Height (H): 45 mm
• Height of Block (H-H3): 37.5 mm
• Block Width (W): 60 mm
• Block Length (L): 97.8 mm
• B: 40 mm
• C: 40 mm

Optimized for high load capacity and precision, the RBH30RSS G1 linear guideway block is ideal for industrial applications requiring smooth and accurate linear motion.
