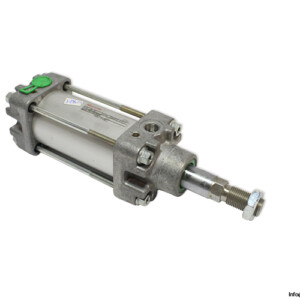

Rexroth 1670505000 TIE ROD Cylinder
Tie Rod Cylinder

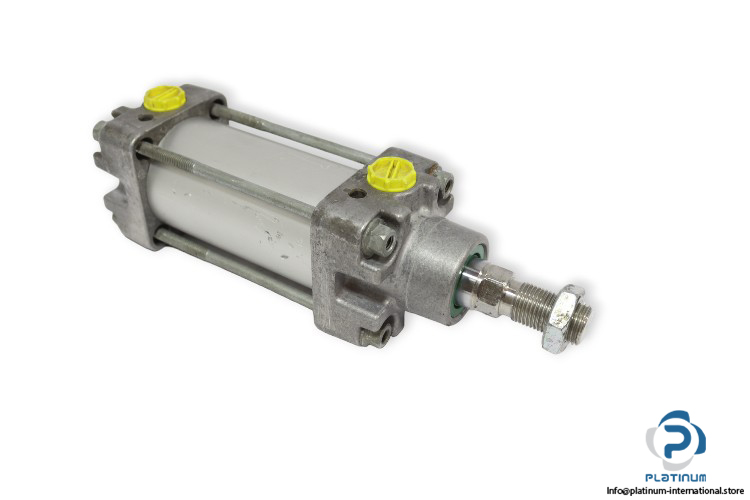

Rexroth / Bosch / Aventics 167 series double-acting pneumatic tie rod cylinder with 50 mm stroke and 50 mm piston diameter.Rexroth / Bosch / Aventics 167 Series Tie Rod Cylinder
A high-quality pneumatic tie rod cylinder from the Rexroth / Bosch / Aventics 167 series, engineered for reliable linear motion in industrial automation applications. This double-acting cylinder features a robust aluminum construction, precision-machined components, and a chrome-plated stainless steel piston rod for smooth operation and long service life. Manufacturer: Rexroth / Bosch / Aventics
Type: Tie Rod Cylinder
Series: 167

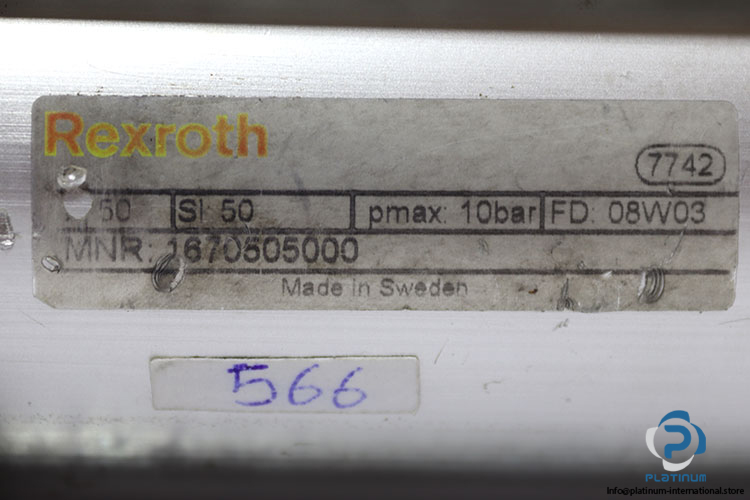

MNR: 1670505000
Code: 08W03 / 7742
Material Specifications
Recommendation:
This tie rod cylinder is ideal for machinery, automation lines, and pneumatic handling systems requiring precise and durable linear motion. For optimal performance and system integration, it is recommended to combine this cylinder with high-quality Sensors for position feedback and compatible pneumatic control components from Platinum International to ensure reliable operation and extended service life.
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Stroke Length | 50 mm |
| Piston Diameter | 50 mm |
| Piston Rod Diameter | 20 mm |
| Piston Rod End | Male Thread |
| Variants | Piston Rod at One End |
| Shape | Square |
| Frame Dimensions | 175 × 63 mm |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | G 1/4 |
| Ambient Temperature | -20 to +75 °C |
| Medium Temperature | -20 to +75 °C |
| Cylinder Tube | Aluminum, Anodized |
| Piston Rod | Stainless Steel, Chrome-Plated |
| Front Cover | Aluminum |
| End Cover | Aluminum |
| Seal | Acrylonitrile Butadiene Rubber (NBR) |
