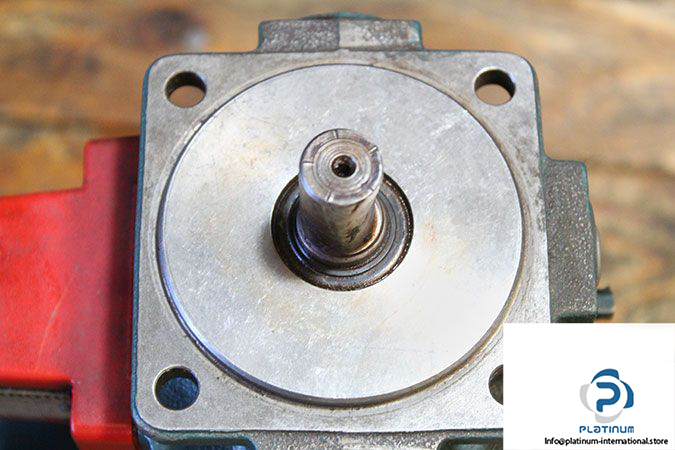

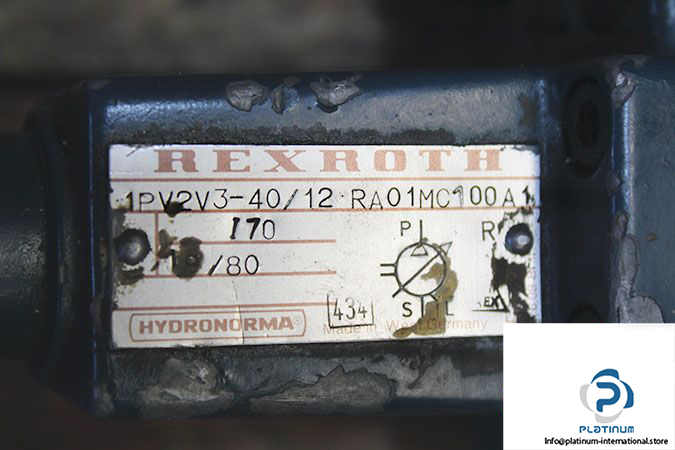

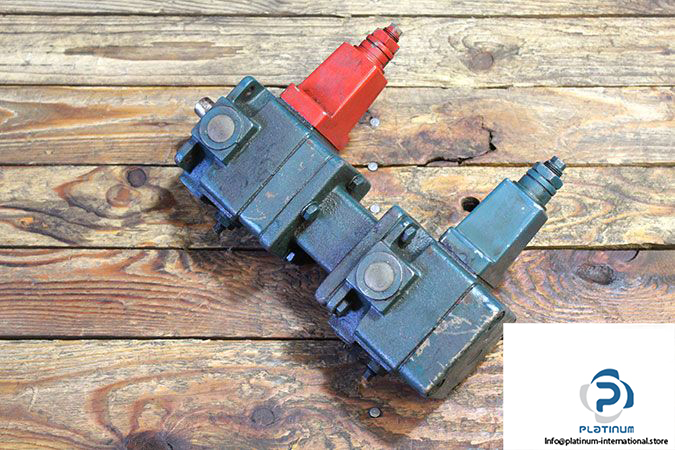

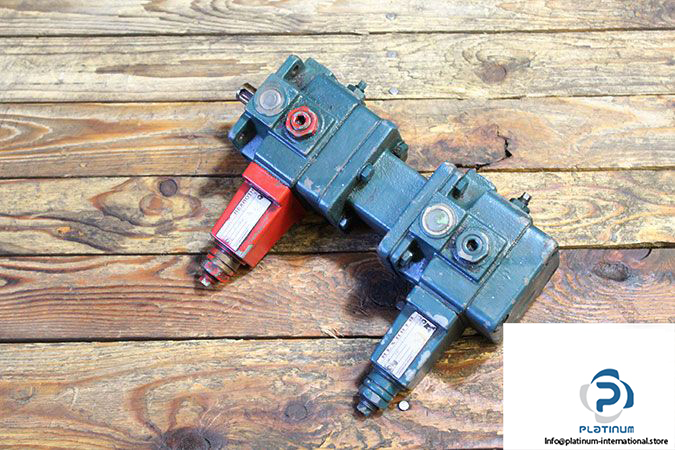

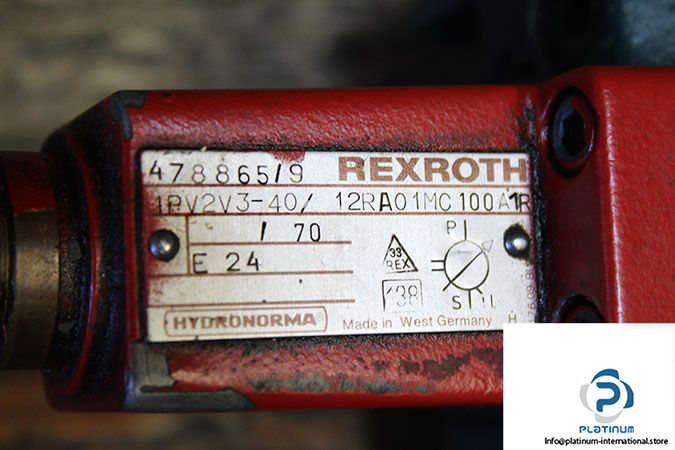

Rexroth 1PV2V3-40/12RA01MC100A1R Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

Model: 1PV2V3-40/12RA01MC100A1R

size: 12

Displacement: 8.5 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 28 mm

Operating pressure: 100 bar

Speed Range : 950 …. 1800 rpm

Flow Rate at 1450 rpm: 13 l/m

Max. Torque: 54 N.m

Viscosity Range: 16…160 mm²/s

Attachment: REXROTH 1PV2V3-40/12RA01MC100A1 VARIABLE VANE PUMP

Manufacturer: Rexroth

Type: Variable Vane Pump

Model: 1PV2V3-40/12RA01MC100A1



size: 12

Displacement: 8.5 cm³

Weight: 14.3 Kg
