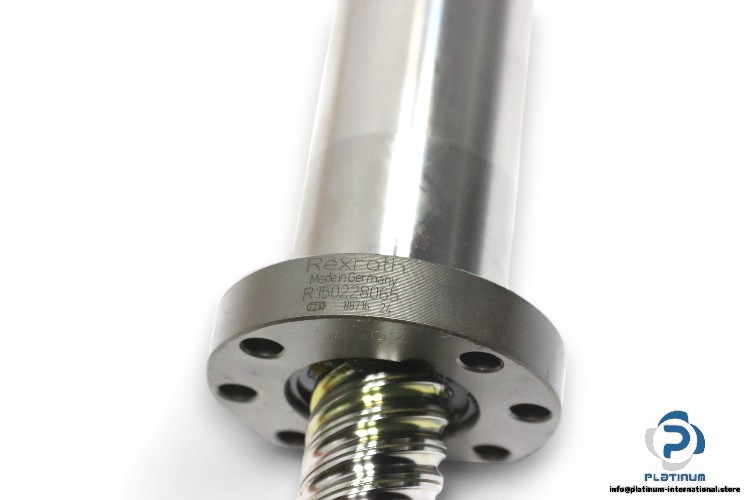

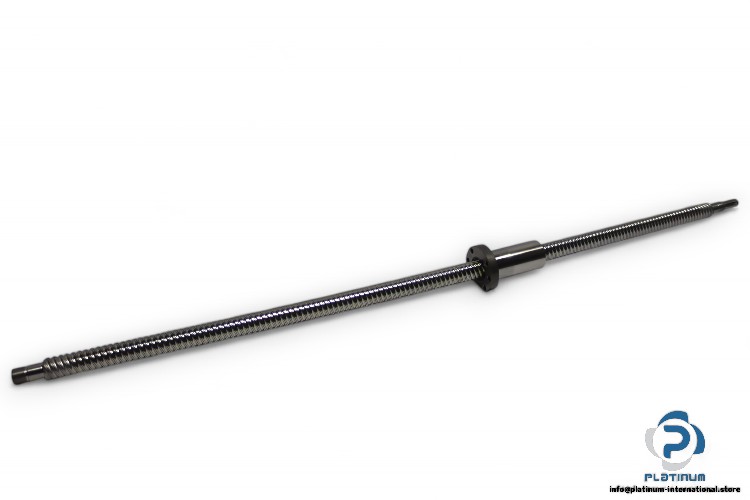

Rexroth R151029580 Ball Screw
Hersteller: Rexroth Typ: Flanschmutter Kugelgewindetrieb (Einzelmutter mit Flansch FEM-E-C) Modellnummer (MNR): R151029580 Mutternmodellnummer (MNR): R150228065 Rexroth Flanschmutter Kugelgewindetrieb mit 25 mm Nenn-Ø, 25 mm Steigung und 3,5 mm Kugeldurchmesser. Dynamische Belastung von 14700 N und eine lineare Geschwindigkeit von 150 m/min.
Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)
Manufacturer: Rexroth
Type: Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)
Model Number (MNR): R151029580
Nut Model Number (MNR): R150228065
The Rexroth Flange Nut Ball Screw (Single Nut with Flange FEM-E-C) provides efficient motion control with high load ratings and excellent linear speed. It is designed for demanding industrial applications requiring precision and reliability.
- Manufacturer: Rexroth
- Type: Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)
- Model Number (MNR): R151029580
- Nut Model Number (MNR): R150228065
- Size: 25 x 25 R
- Nominal Diameter (dN): 25 mm
- Lead (P): 25 mm
- Ball Diameter: 3.5 mm
- Flange Diameter: 62 mm
- Nut Outer Diameter: 40 mm
- Nut Length: 95 mm
- Flange Thickness: 12 mm
- Number of Ball Track Turns: 3
- Number of Starts: 4
- Direction of Lead: Right-Hand Thread
- Threaded Length: 960 mm
- Total Screw Length: 1060 mm

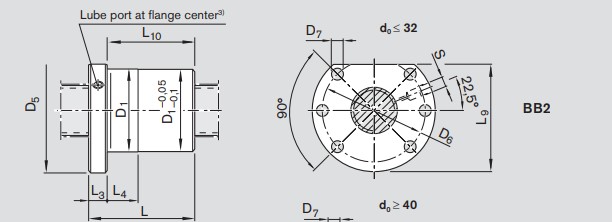

- Hole Pattern: BB2
- Lube Port Machining: M6
- Nut Load Ratings:
- Dynamic: 14700 N
- Static: 23300 N
- Linear Speed: 150 m/min
