Steinmeyer 2695605 Ball Screw

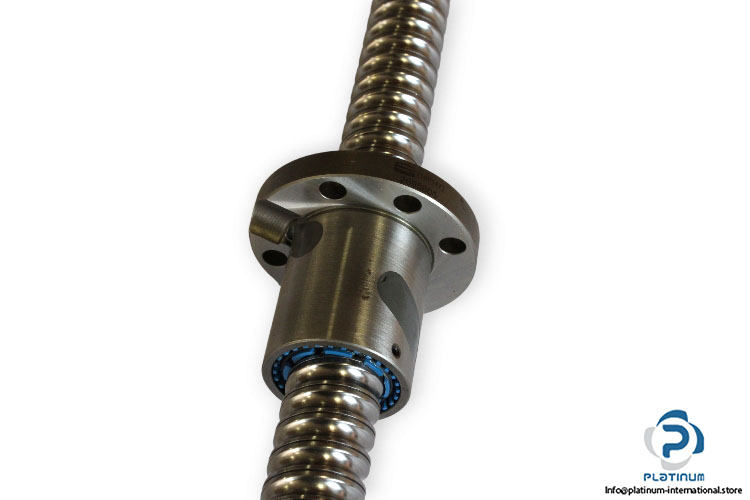

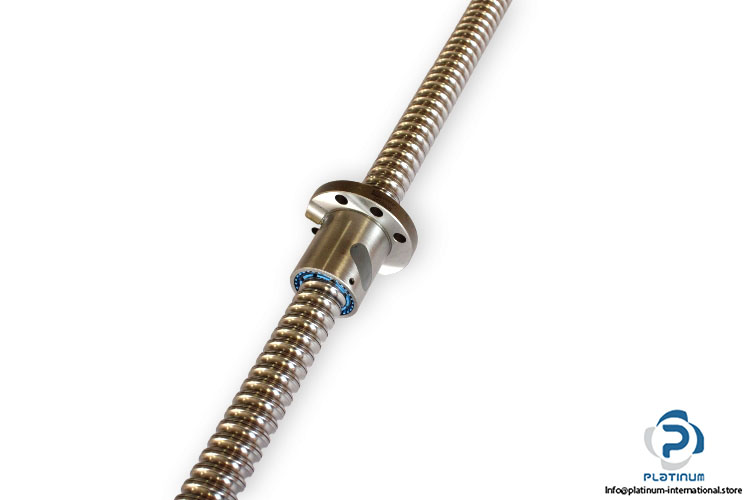

Name: STEINMEYER 2695605 BALL SCREW
SKU: 1008380
Availability: LimitedAvailability

Neu

Auf Lager3 EinheitenVersandbereit

Flanschmutter für Kugelgewindespindel mit Abstreifern an beiden Enden

Hersteller

STEINMEYER

SKU

1008380

Kategorie

Screw & Ball Screws

Zustand

Neu

32 Ball d0:flanged Linear mm Motion nut screw Steinmeyer

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: STEINMEYER
Type: Flange nut ball screw with wipers on both ends

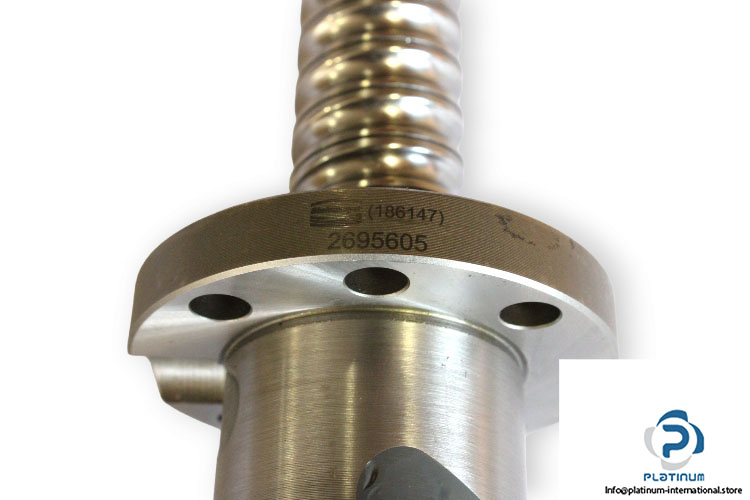

Model: 2695605
Part no.: 186147

Size: 32
Nominal Diameter d_N: 32 mm
Dimensions:
Flange diameter: 80 mm
Nut outer diameter: 49 mm
Nut length: 72 mm
Flange thickness: 12 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 950 mm
Total screw length: 1070 mm

Spezifikation	Wert
Weight	6 kg
Condition	New
Size	32 x 10 R
Shelf No.	231221
Manufacturer	STEINMEYER
Type of Product	BALL SCREW
Flange Diameter [mm]	80 mm
Flange Thickness [mm]	12 mm
Nut Outer Diameter [mm]	49 mm
Nut Length [mm]	72 mm
