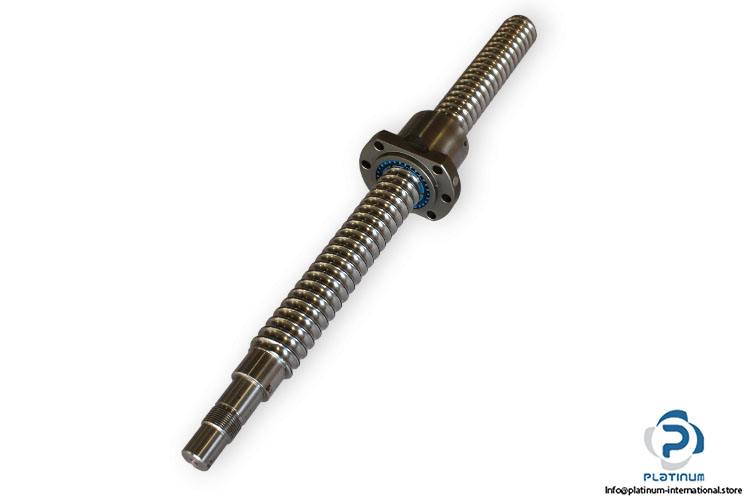

Steinmeyer 2627591 Ball Screw

Manufacturer: STEINMEYER

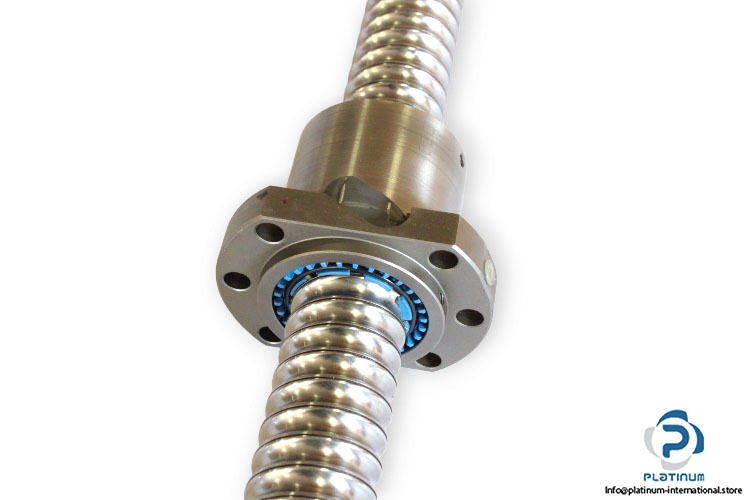

Type: Flange nut ball screw with wipers on both ends

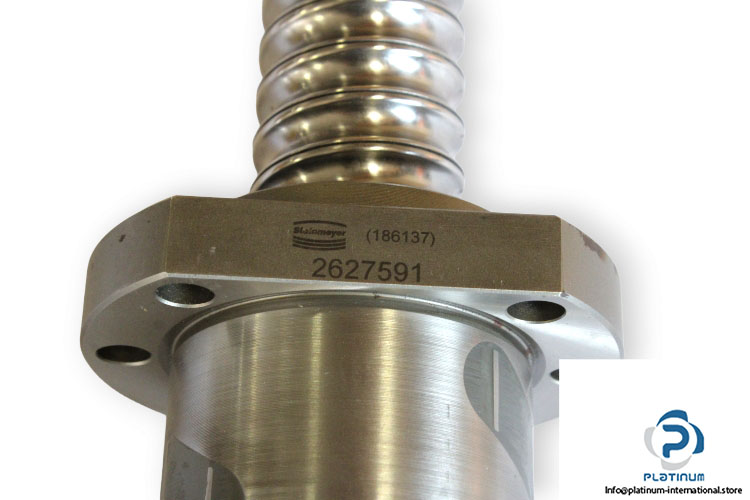

Model: 2627591
Part no.: 186137

Size: 40
Nominal Diameter d_N: 40 mm
Dimensions:
Flange diameter: 93 mm
Nut outer diameter: 62 mm
Nut length: 70 mm
Flange thickness: 14 mm
Cutting flange width: 70 mm
Lead P: 10 mm
Direction of Lead: Right-Hand Thread
Threaded length: 480 mm
Total screw length: 560 mm
