Rexroth R162331370 Ball Runner Block
Rexroth BALL RUNNER BLOCK R162331370 bietet hochleistungsfähige Bewegungssteuerung mit dynamischer Tragfähigkeit von 66.700 N, statischer Tragfähigkeit von 116.000 N und präziser Handhabung für lineare Systeme.
Rexroth BALL RUNNER BLOCK R162331370
The Rexroth BALL RUNNER BLOCK R162331370 is designed for high-performance motion control in linear guide applications. This block, part of the slimline series, offers precise load handling and durability. It features a dynamic load capacity of 66,700 N and a static load capacity of 116,000 N, making it ideal for applications that require robust support for linear motion.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: BALL RUNNER BLOCK
- Model: R162331370
- Size: 35 mm

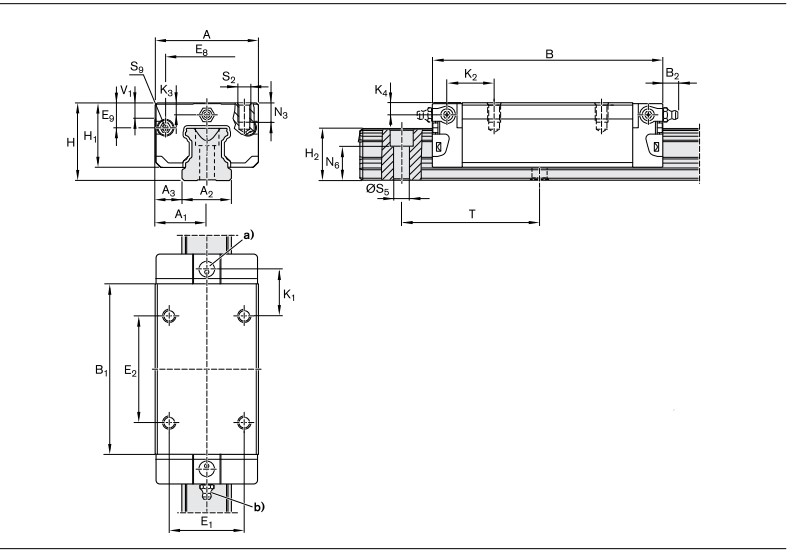

- Dimensions:
- Width (A): 70 mm
- Length (B): 139 mm
- Height of System (H): 48 mm
- Height of Block (H1): 40.40 mm
- E1: 50 mm
- E2: 72 mm
- Format: SLS €“ slimline, long, standard height
- Maximum Acceleration Travel (amax): 500 m/s²
- Maximum Permissible Speed (vmax): 5 m/s
- Dynamic Load Capacity (C): 66,700 N
- Static Load Capacity (C0): 116,000 N
- Dynamic Torsional Moment Load Capacity (Mt): 1,440 Nm
- Static Torsional Moment Load Capacity (Mt0): 2,500 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 1,290 Nm
- Static Longitudinal Moment Load Capacity (ML0): 2,240 Nm
- Accuracy Class: H €“ Highly accurate
- Preload Class: C1 €“ Low preload
This ball runner block provides precision and high-load capacity, making it a perfect fit for linear motion systems requiring high speed, load, and acceleration handling.
