Rexroth R169389410 Ball Runner Block
Rexroth BALL RUNNER BLOCK R169389410, Größe 20 mm, dynamische Tragfähigkeit 14500 N, statische Tragfähigkeit 24400 N, ausgelegt für hochgeschwindigkeits- und hochbeschleunigte Bewegungen in industriellen Anwendungen.

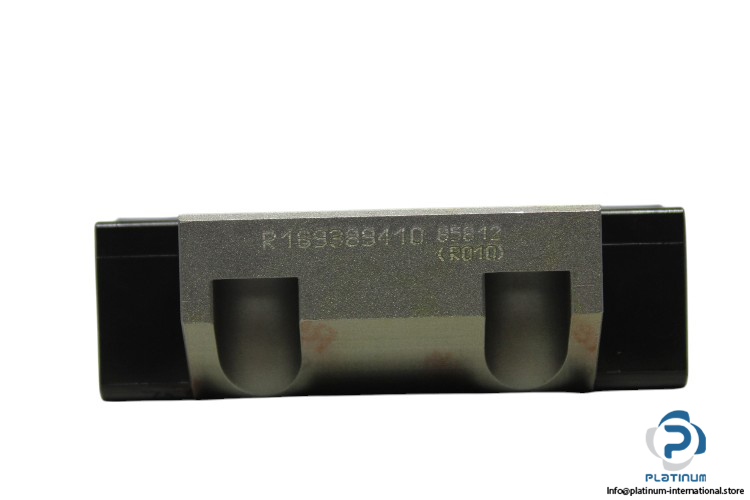

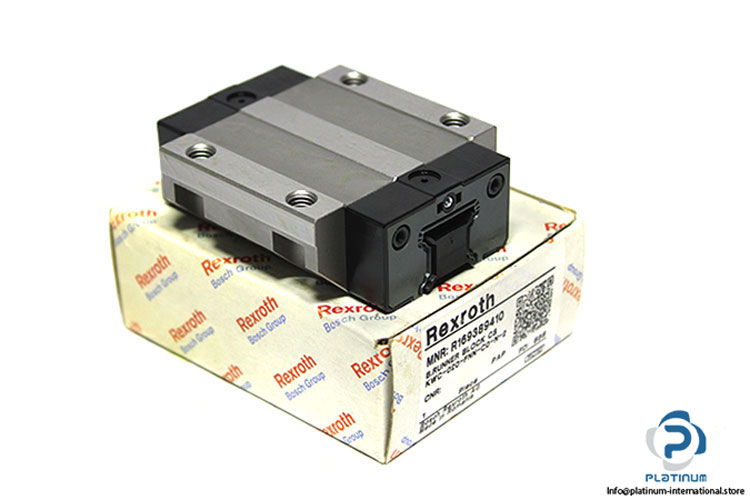

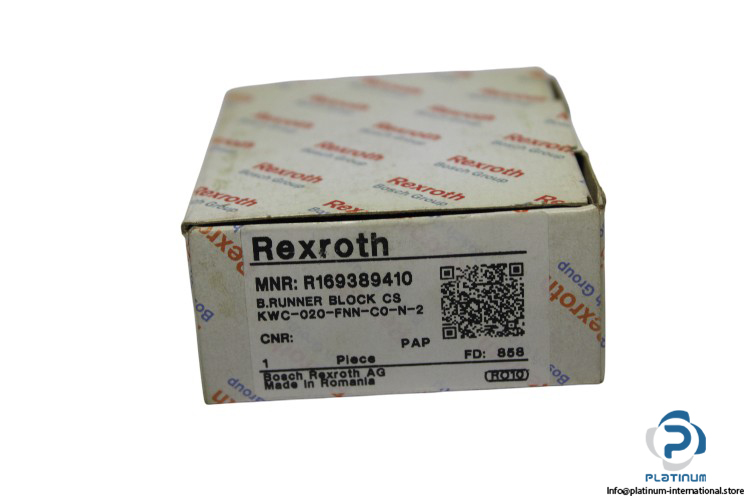

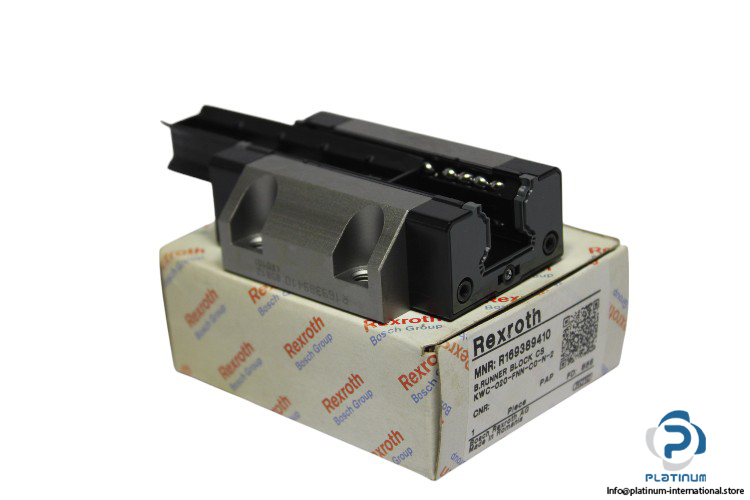

Rexroth BALL RUNNER BLOCK R169389410
The Rexroth BALL RUNNER BLOCK (MNR: R169389410) is designed to deliver smooth, efficient motion for industrial applications, offering high dynamic and static load capacities. With a size of 20 mm and built to withstand harsh conditions, this component is perfect for high-speed, high-acceleration travel, ensuring precise and durable performance.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: BALL RUNNER BLOCK
- Model Number: R169389410
- Size: 20 mm

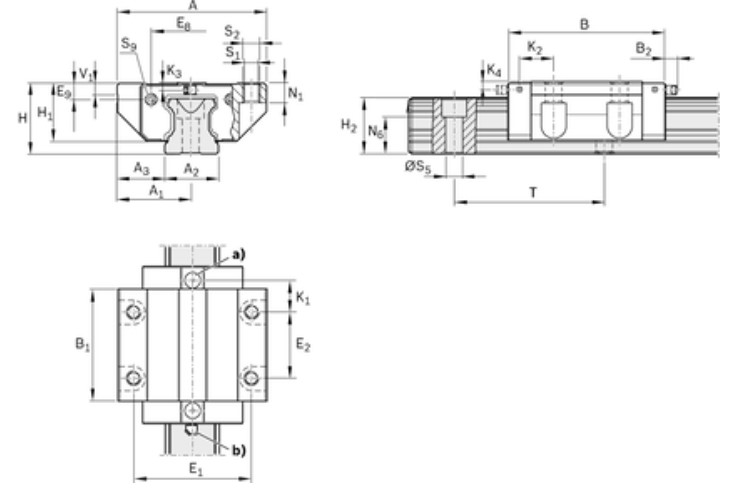

- Width (A): 59 mm
- Length (B): 72.5 mm
- Height of System (H): 28 mm
- Height of Block (H1): 23 mm
- E1: 49 mm
- E2: 322 mm
- Format: FNN €“ Flange, Standard, Low
- Material (Profiled Rail Systems): Carbon Steel
- Maximum Acceleration Travel: 250 m/s²
- Maximum Permissible Speed: 3 m/s
- Dynamic Load Capacity (C): 14500 N
- Static Load Capacity (C0): 24400 N
- Dynamic Torsional Moment Load Capacity (Mt): 190 Nm
- Static Torsional Moment Load Capacity (Mt0): 310 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 100 Nm
- Static Longitudinal Moment Load Capacity (ML0): 165 Nm
- Accuracy Class: N – Normal
- Preload Class: C0 €“ Without Preload (Clearance)
- Admissible Operating Temperature: -10 °C to +80 °C
This Rexroth BALL RUNNER BLOCK is a reliable solution for industrial systems requiring smooth and efficient motion under high loads, offering precision and performance in a wide range of applications.
