Rexroth R18222232X Roller Runner Block
Neu
Auf Lager5 EinheitenVersandbereit
Rexroth Roller Runner Block R18222232X, 25 mm Größe, schlankes Format, hochpräzise, Kohlenstoffstahl, Tragfähigkeit bis zu 59.500 N und Geschwindigkeit bis zu 4 m/s.
2559500BlockCapacityGuideHigh-AccuracyLinearLoadmmMotionNR18222232XRexrothRollerRunnerSlimlineSystem
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

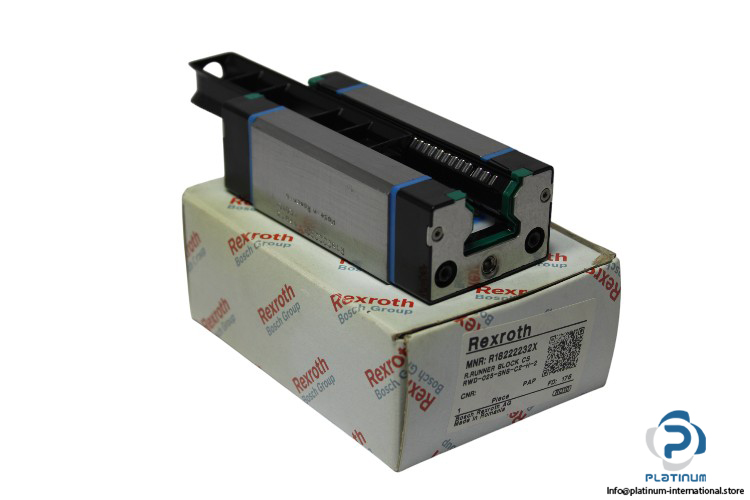

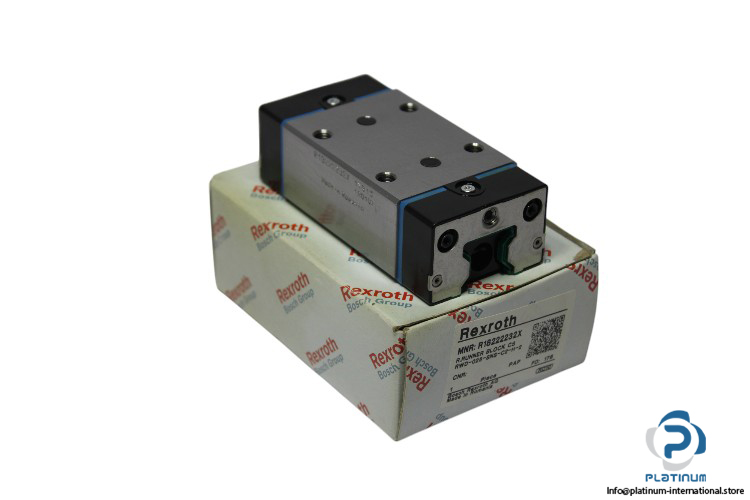

Rexroth Roller Runner Block R18222232X
The Rexroth Roller Runner Block R18222232X is a high-performance linear motion system designed for applications demanding precision and durability. Featuring a slimline format, carbon steel material, and highly accurate construction, it delivers exceptional load capacities and smooth motion for industrial needs.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: Roller Runner Block
- MNR: R18222232X
- Size: 25 mm

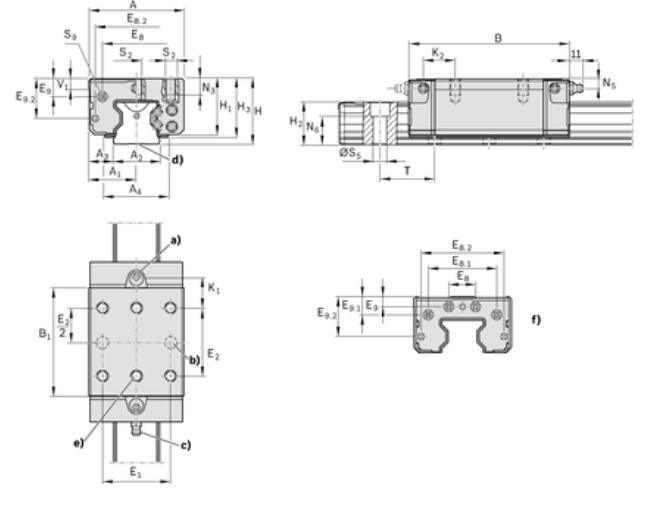

- Dimensions:
- Width (A): 48 mm
- Length (B): 97 mm
- Height of System (H): 36 mm
- Height of Block (H1): 30 mm
- E1: 35 mm
- E2: 35 mm
- Format: SNS €“ Slimline, Normal, Standard Height
- Material (Profiled Rail Systems): Carbon Steel
- Maximum Acceleration Travel (amax): 150 m/s²
- Maximum Permissible Speed (vmax): 4 m/s
- Dynamic Load Capacity (C): 26,900 N
- Static Load Capacity (C0): 59,500 N
- Dynamic Torsional Moment Load Capacity (Mt): 348 Nm
- Static Torsional Moment Load Capacity (Mt0): 770 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 260 Nm
- Static Longitudinal Moment Load Capacity (ML0): 580 Nm
- Accuracy Class: H €“ Highly Accurate
Engineered to meet high standards of precision, this runner block is perfect for demanding linear motion systems in various industrial applications.
