Rexroth R901269277 Float Switch
Industrieller Schwimmerschalter Rexroth für die Überwachung des Hydraulikflüssigkeitsstands mit zwei Schaltausgängen, 30 VDC Versorgung, M12-Stecker und Schaltpunkten bei 600 mm und 400 mm.

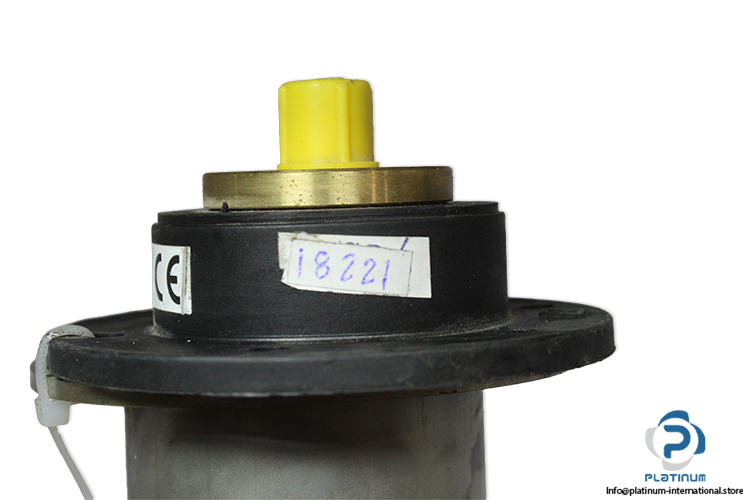

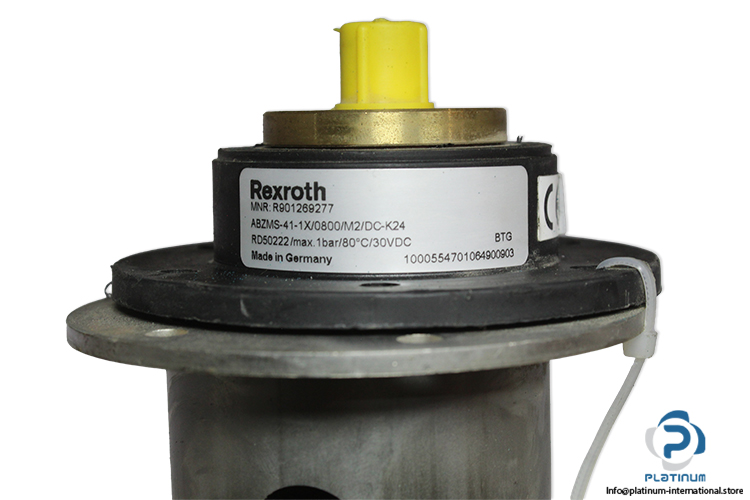

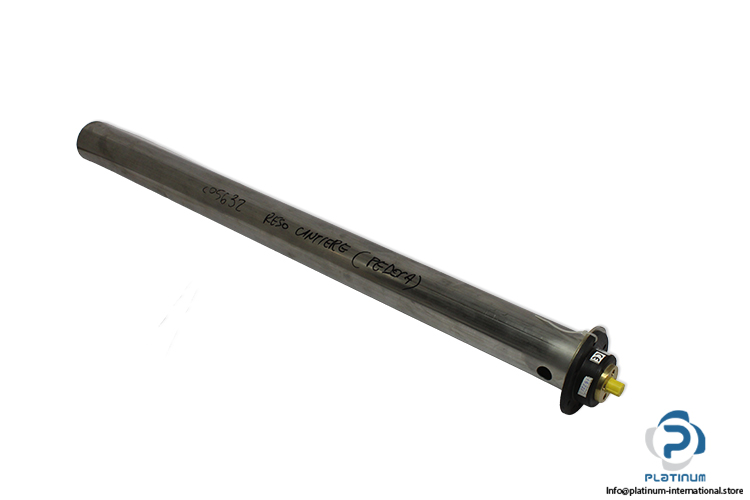

Rexroth ABZMS-41-1X/0800/M2/DC-K24 Float Switch
The Rexroth ABZMS-41-1X/0800/M2/DC-K24 float switch is designed for reliable liquid level monitoring in hydraulic systems and industrial fluid reservoirs. The device operates with a float mechanism that activates switching contacts when the fluid reaches defined levels, enabling accurate level control and protection of hydraulic equipment.
Manufacturer: Rexroth
Type: Float Switch
Model: ABZMS-41-1X/0800/M2/DC-K24
MNR: R901269277
Code: 1000554701064900903 / RD50222
Hydraulic Fluid Compatibility:
HEES
HEPG
HETG
HFA-E
HFC
HFD-R
HFD-U
HLP
| Operating Pressure, Max. | 1.0 bar |
| Output Signal | 2 Switching Outputs |
| Supply Voltage | 30 VDC |
| Electrical Connector | Connector, 4-Pole, M12 x 1, Coding A |
| Indicator | Yes |
| Electric Connection Description | Connector, 4-Pole, M12 x 1, Coding A According To EN 61076-2-101 |
| Maximum Temperature | 80 °C |
| Float Switch Function | Float Switch Switching Point For Level |
| Operation Principle | Float Switches Are Switching Devices Operated By A Float Moved By Fluid |
| Switching Contacts | Two Switching Contacts |
| Switching Points | 600 mm / 400 mm |
| Protection | Surge Protection |
