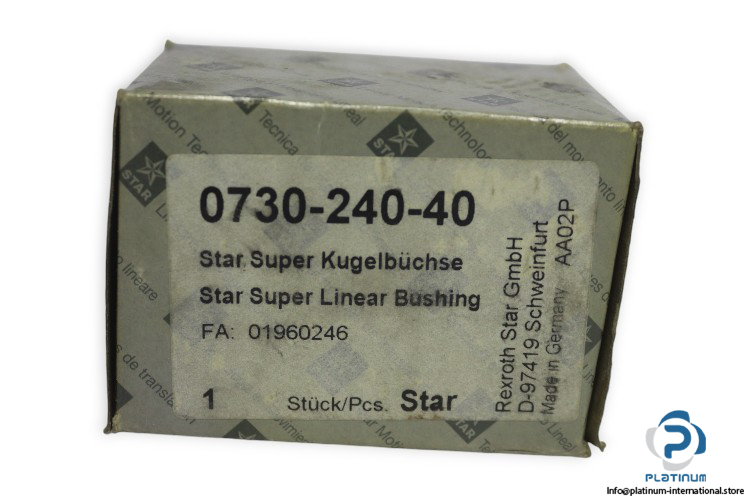

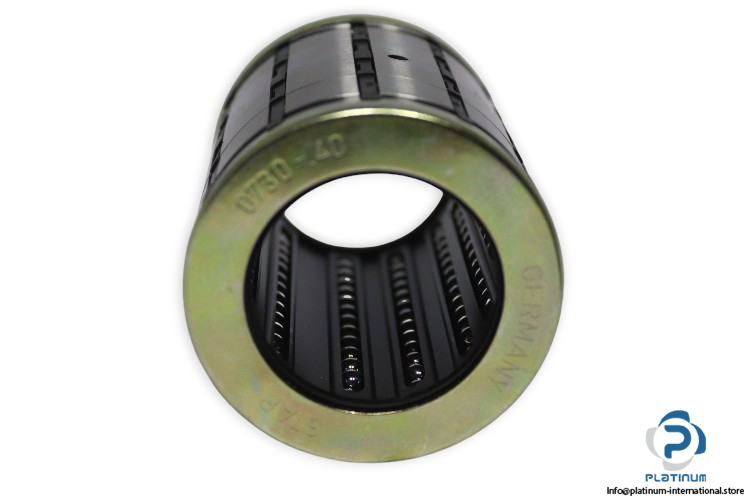

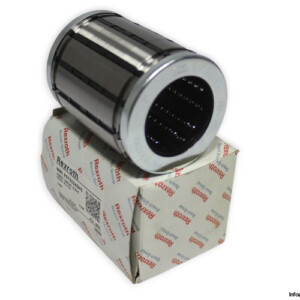

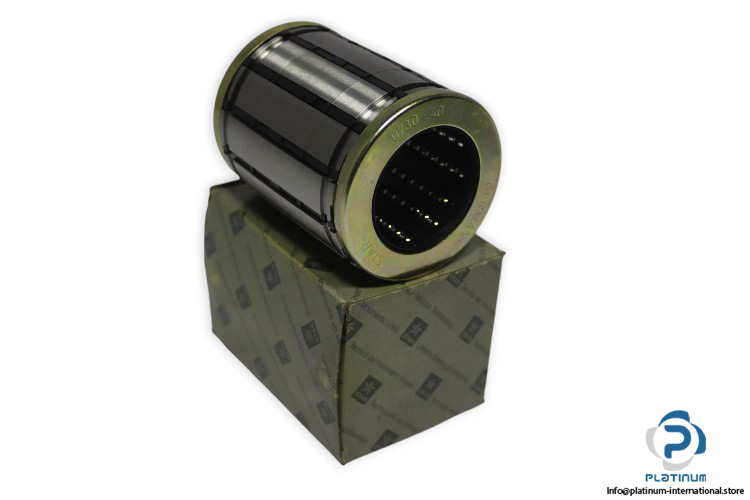

Rexroth Star 0730-240-40 Super Linear Bushing
Manufacturer: Rexroth Star
Type: SUPER LINEAR BUSHING KBSH
MNR: R0730 240 40

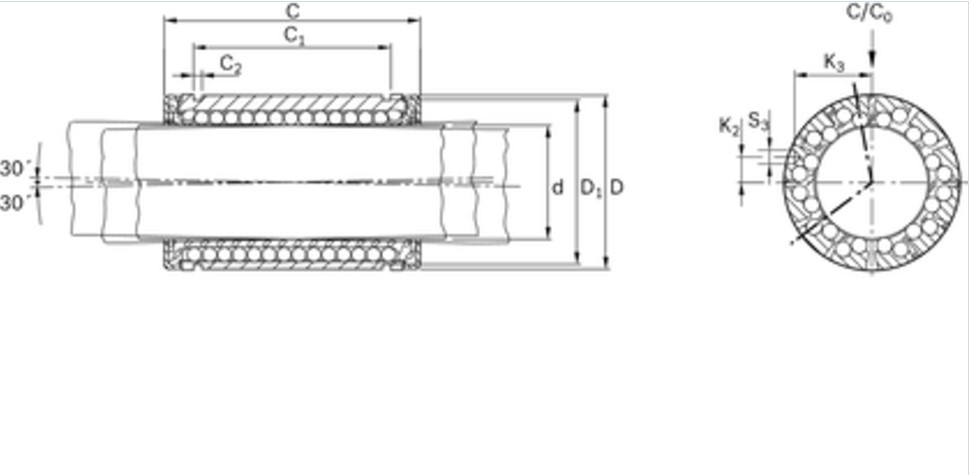

Dimensions:
Shaft diameter d0: 40 mm
Outer diameter D: 62 mm
Length of linear bushing C: 80 mm
C1: 60.3 mm
D1: 59 mm
C2: 2.15 mm
Series: Super LB SH
Format of linear bushings: Closed
Maximum permissible linear speed v max: 5 m/s
Max. acceleration a max: 150 m/s²
Breakaway force: 12 N
Dynamic Load rating C: 13500 N
Static Load rating C0: 10400 N
Seals: 2 integrated wiper seals
Permissible Ambient Temperature: -20 … +80 °C
