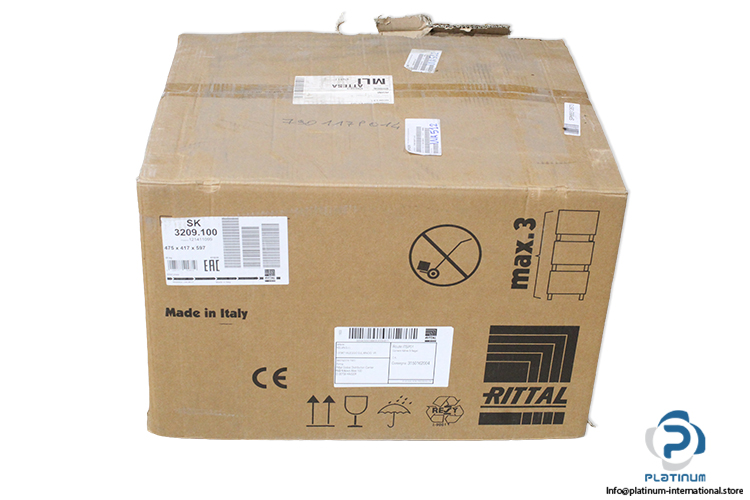

Rittal SK3209.100 Air/Water Heat Exchanger
1 199,99$
Luft/Wasser-Wärmetauscher RITTAL Luft/Wasser-Wärmetauscher SK3209.100 für effiziente Gehäusekühlung, mit hoher Kühlleistung, IP55-Schutz und zuverlässiger Leistung in industriellen Umgebungen.

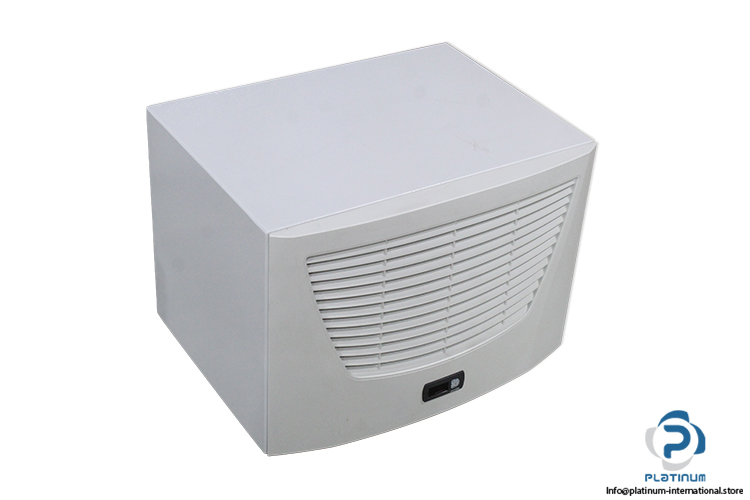

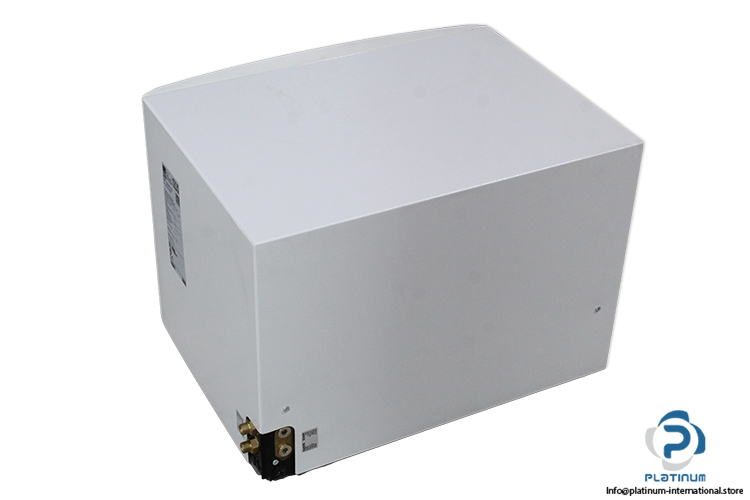

RITTAL SK3209.100 Air/Water Heat Exchanger
The RITTAL SK3209100 air/water heat exchanger is designed for efficient thermal management of electrical enclosures and industrial control systems. It provides reliable heat dissipation using an air and water cooling principle, ensuring stable operating conditions for sensitive components in demanding environments.
Manufacturer: RITTAL
Type: Air / Water Heat Exchanger

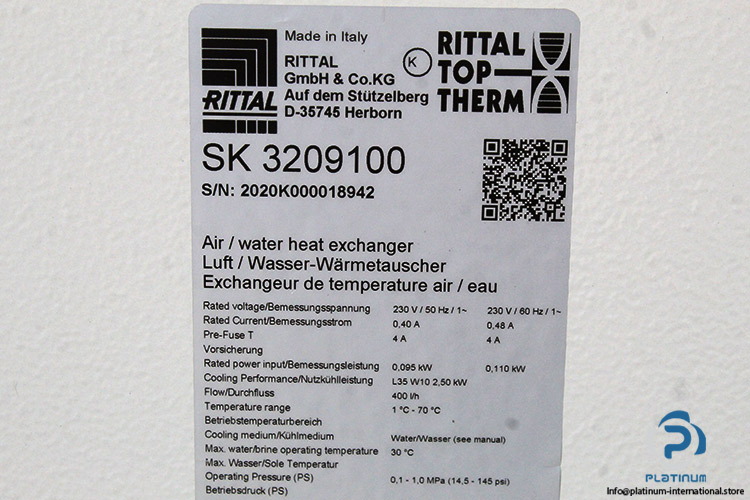

Model: SK3209.100

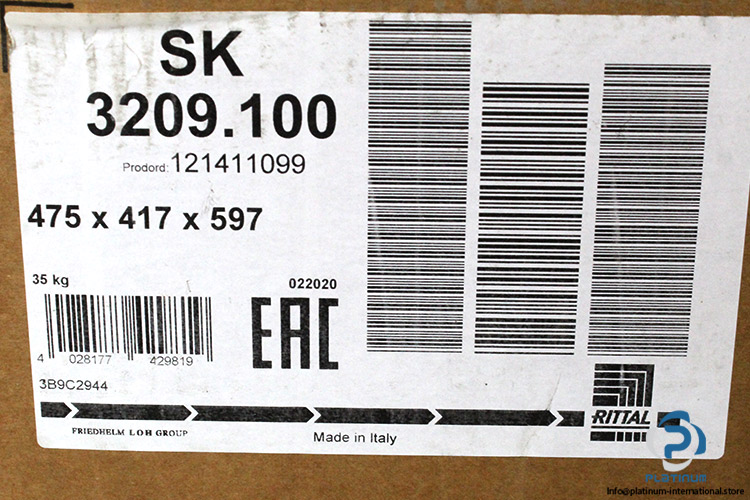

Prod. Order: 121411099
Ser. No.: 2020K000018942
| Rated Operating Voltage | 1-Phase 230 V AC |
| Frequency | 50 / 60 Hz |
| Power Consumption at 50 Hz | 95 W |
| Power Consumption at 60 Hz | 110 W |
| Rated Current Max. at 50 Hz | 0.4 A |
| Rated Current Max. at 60 Hz | 0.48 A |

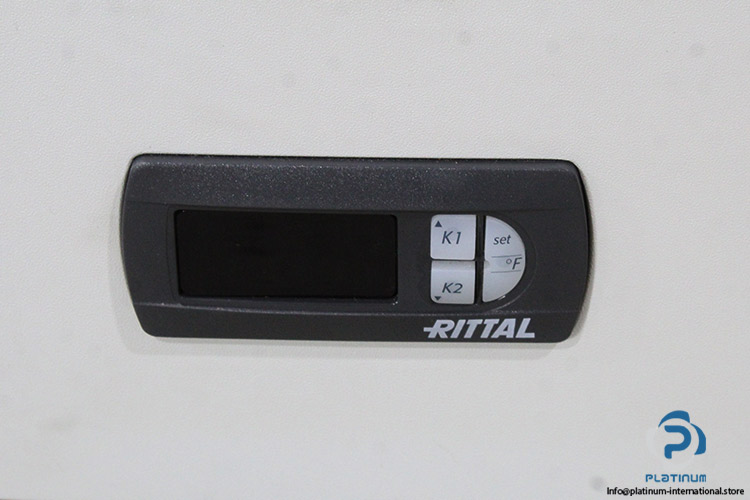

| Setting Range | 20 ... 55 °C |
| Cooling Medium | Air / Water |
| Water Inlet Temperature | 1 ... 30 °C |
| Total Cooling Output | L 35 W 10 at 400 l/h: 2.5 kW |
| Permissible Operating Pressure | 1 “ 10 bar |
| Flow Rate | 400 l/h |
| Electrical Connection | Plug-in Terminal Strip |

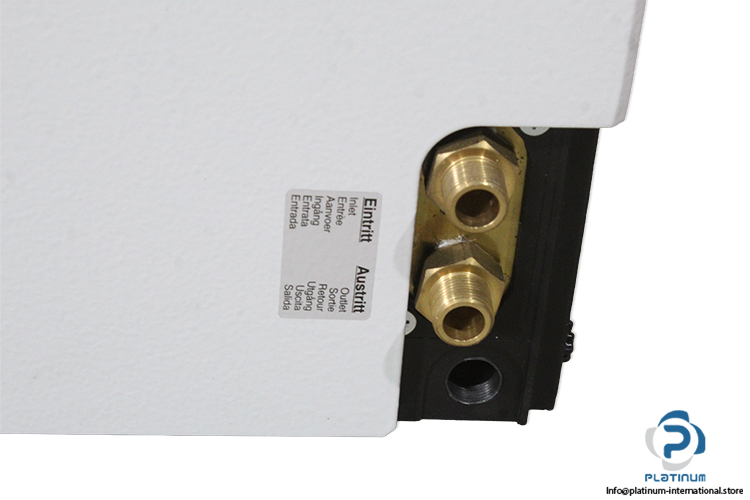

| Water Connections | G1/2 Connector Sleeve, G3/8 External Thread |

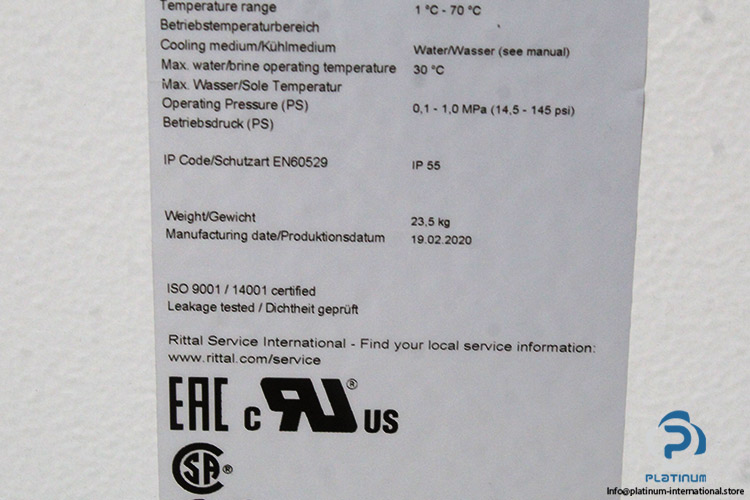

| Protection Class | IP55 |
| Operating Temperature Range | 1 ... 70 °C |
| Dimensions | 417 x 597 x 475 mm |
