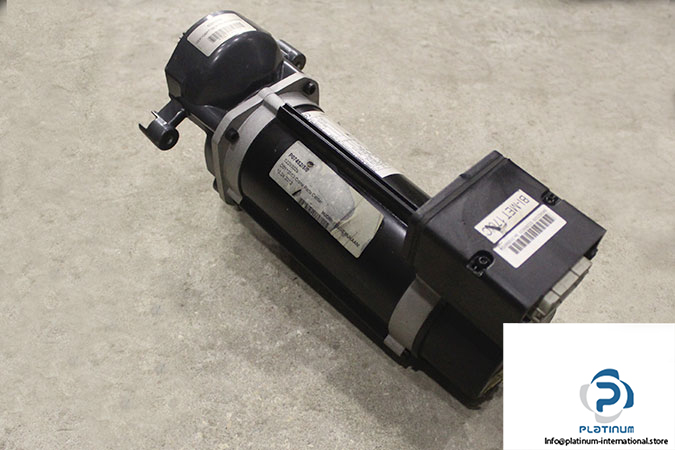

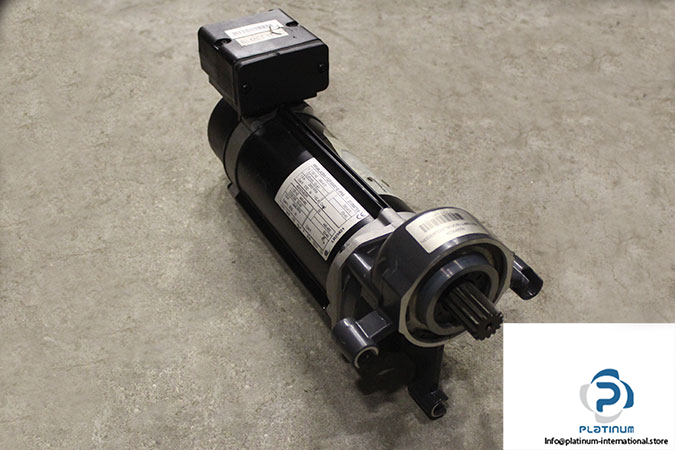

R&M MATERIALS HANDLING MF06LA200-132F85001E-IP55 SERVO MOTOR

Manufacturer: RM Materials Handling

Type: Servo Motors

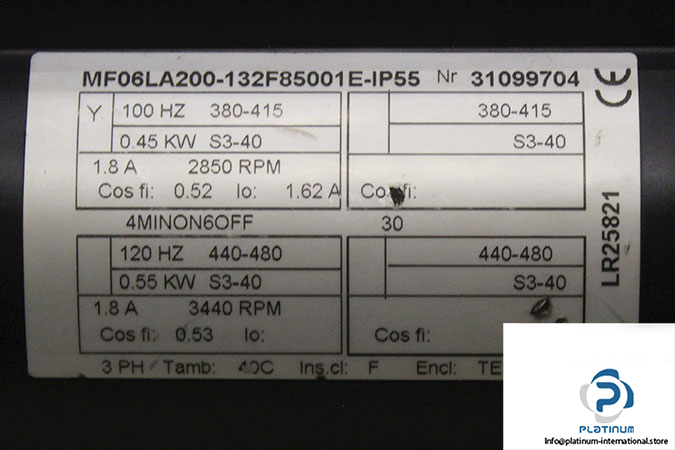

Model: MF06LA200-132F85001E-IP55

Part Nr.: 4MINON6OFF

Supply Voltage at 100Hz [V]: 380-415 Star

Rated Current [A]: 1.8

Stall Current [A]: 1.62

Rated Power [kW]: 0.45

Frequency [Hz]: 100

Nominal Speed [rpm]: 2850

Power Factor [cos]: 0.52

Supply Voltage at 120Hz [V]: 440-480

Rated Current [A]: 1.8

Rated Power [kW]: 0.55

Frequency [Hz]: 120

Nominal Speed [rpm]: 3440

Power Factor [cos]: 0.53

Ambient Temperature [°C]: 40

Protection Class [IP]: 55

Duty: S3-40

Insulation Class: F
