Rosemount DP3 S22 L4 Pressure Transmitter
Neu
Auf Lager1 EinheitVersandbereit
PRESSURE TRANSMITTER
Explosion-proof DP/GP pressure transmitter by Rosemount with 0“25 mbar range, 4“20 mA output, and stainless steel housing. Built to withstand demanding environments and certified for hazardous location use.254-20mA4XapprovedDP/GDP3ExplosionFMIndustrialL4lowmbarNemaPressureProofRosemountS22SensorstainlessSteelTransmitter
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

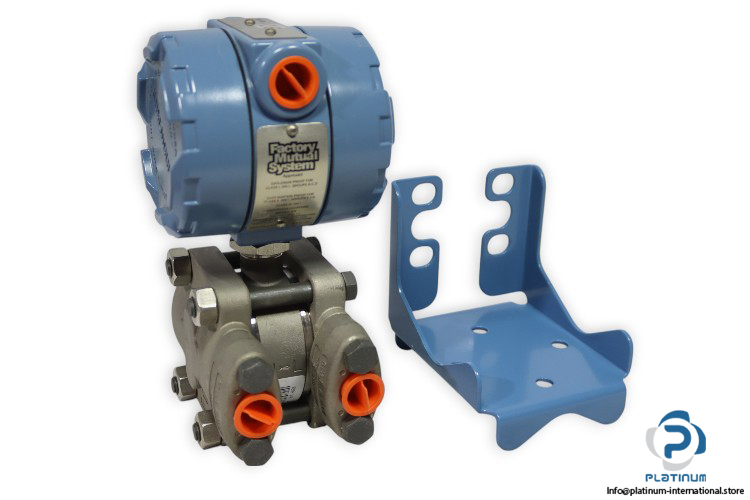

ROSEMOUNT DP3 S22 L4 PRESSURE TRANSMITTER
This explosion-proof industrial pressure transmitter from Rosemount is engineered for high-precision low-pressure measurement in harsh environments. It delivers stable analog output and durable construction, making it suitable for oil, gas, chemical, and other industrial applications requiring compliance with strict safety standards.
Manufacturer: Rosemount
Type: Pressure Transmitter

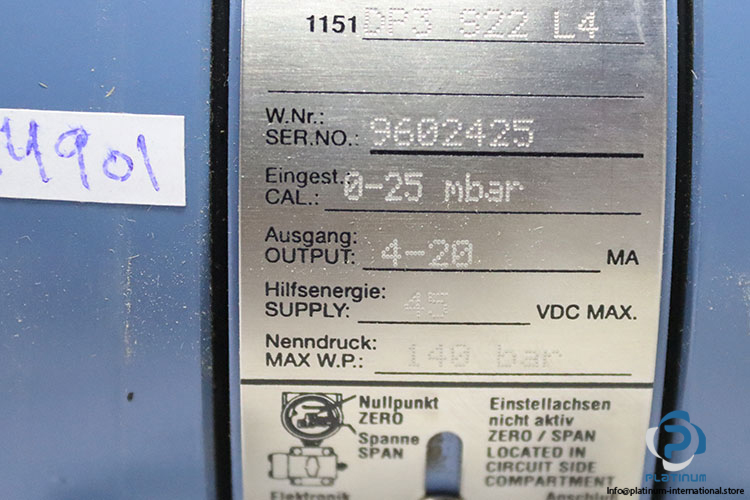

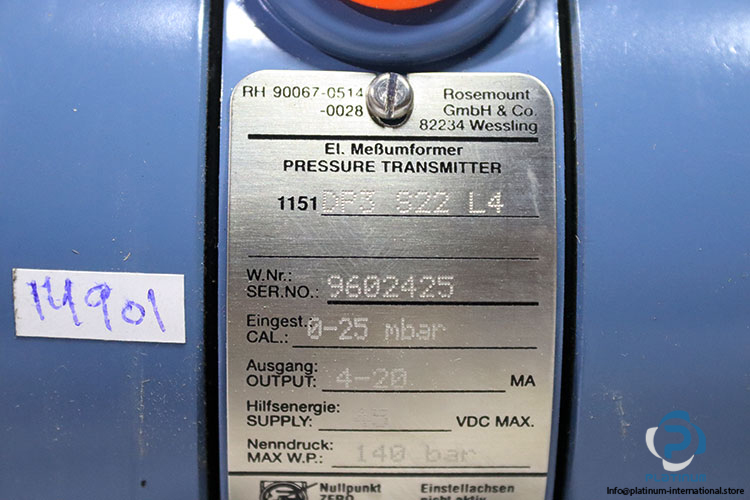

Model: DP3 S22 L4
Serial No.: 9602425

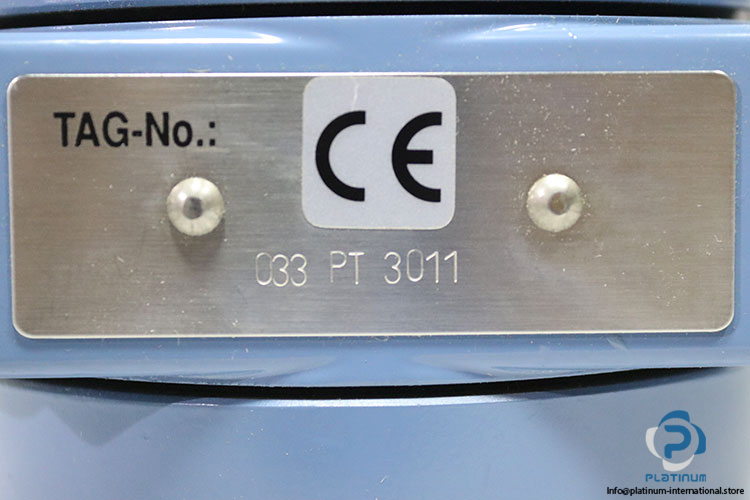

Tag No.: 033 PT 3011

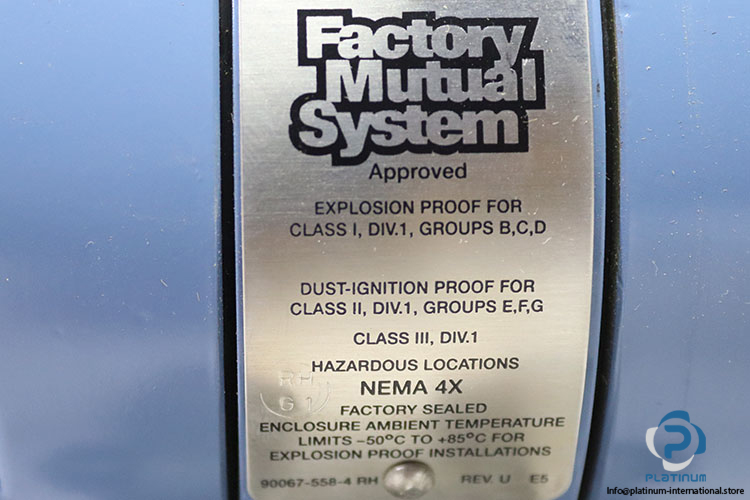

Explosion Proof For:
Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
Class III, Division 1
| Connection | ½ inch |
| Pressure Range | 0 to 25 mbar |
| Output Current | 4 to 20 mA |
| Voltage | 45 V DC Max. |
| Max Working Pressure | 140 bar |
| Material | CLC16 (316) Stainless Steel |
| Ambient Temperature Limits | -50 °C to +85 °C |
| Explosion-Proof Certification | Factory Mutual (FM) System |
| Protection Rating | NEMA 4X |

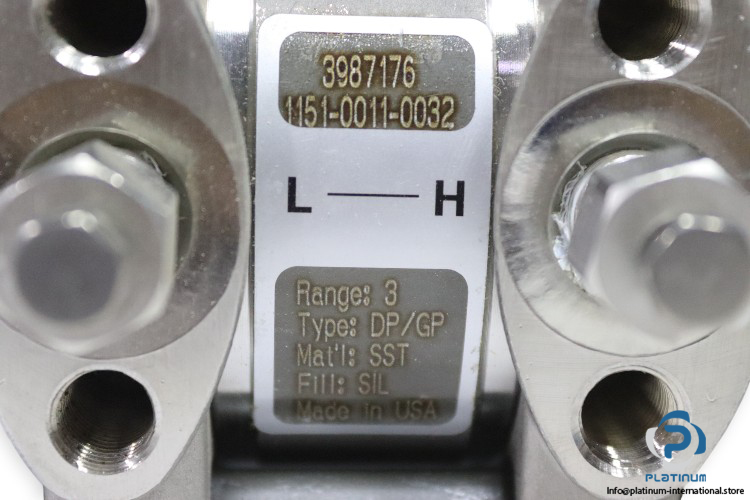

| Attached Module | 3987176 1151-0011-0032 SENSOR MODULE |
| Range | 3 |
| Transmitter Type | DP/GP |
| Sensor Material | SST |
| Fill | SIL |
