RS 290-4437 Unterminated Sensor Actuator
Neu
Auf Lager1 EinheitVersandbereit
SENSOR ACTUATOR CABLE
Durable 2 m sensor actuator cable with M8 straight female connector, 3-core copper conductor, IP67 rating, and PVC insulation ” ideal for reliable signal transmission in industrial environments.2290-44373-coreActuatorAlloyCableConductorConnectorCopperFemaleIndustrialIP67MM8PVCRSSensorSignalunterminatedWiring
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

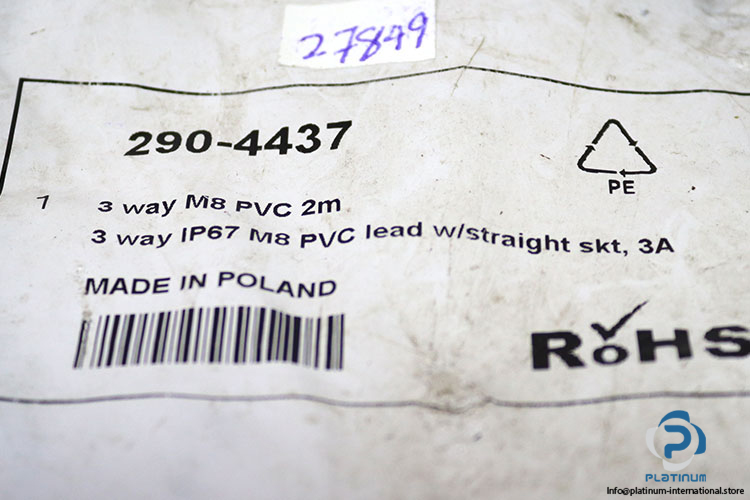

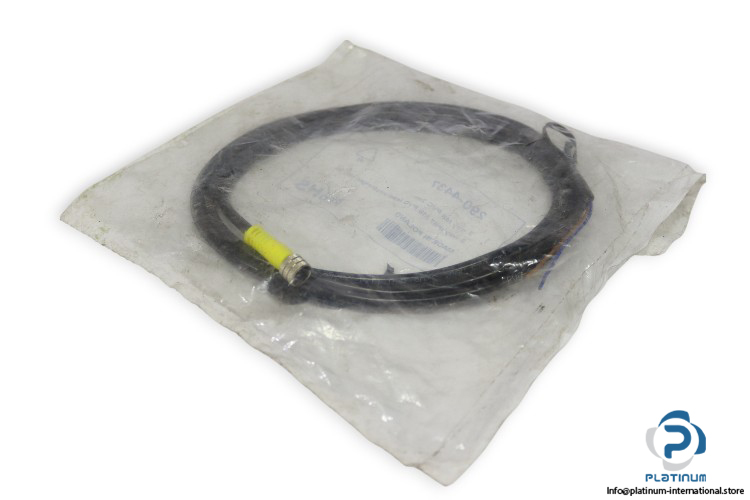

RS 290-4437 SENSOR ACTUATOR CABLE
This high-quality sensor actuator cable from RS is designed for secure signal transmission in industrial automation systems. Featuring a compact M8 female connector and a 3-core copper alloy conductor, it offers robust performance and resistance to harsh environments with an IP67 rating.
Manufacturer: RS
Type: Sensor Actuator
Model: 290-4437
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 3 |
| Material | PVC |
| Length | 2 m |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 3 |
| Connector 1 | M8 |
| Connector 2 | Unterminated |
| Voltage Rating | 60 V AC, 75 V DC |
| Current Rating | 3 A |
| IP Rating | IP67 |
| Operating Temperature Range | -25 to +80 °C |
| Conductor Material | Copper Alloy |
