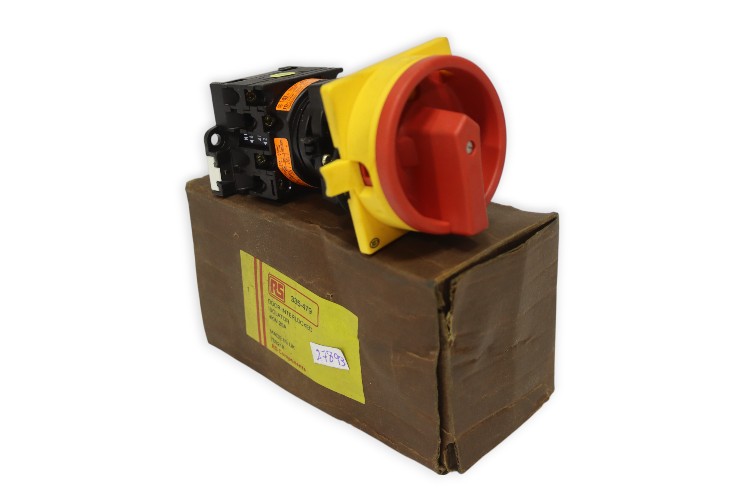

RS T0-2-8293 Door Interlocked Isolator Switch

Name: RS T0-2-8293 DOOR INTERLOCKED ISOLATOR SWITCH
SKU: 1081320
Availability: LimitedAvailability

rs-T0-2-8293-door-interlocked-isolator-switch-(new)

rs-T0-2-8293-door-interlocked-isolator-switch-(new)-1

rs-T0-2-8293-door-interlocked-isolator-switch-(new)-2

rs-T0-2-8293-door-interlocked-isolator-switch-(new)-3

rs-T0-2-8293-door-interlocked-isolator-switch-(new)-4

rs-T0-2-8293-door-interlocked-isolator-switch-(new)-5

Neu

Auf Lager1 EinheitVersandbereit

ISOLATOR SWITCH

Robust door interlocked isolator switch rated for up to 690 V and 20 A. Designed for industrial safety and motor switching applications. Complies with IEC and EN safety standards.

Hersteller

SKU

1081320

Kategorie

Industrial Electrical Switch

Zustand

Neu

20A 60947 690V 947 AC-23A Compliant Control Disconnector Door EN IEC Industrial Interlocked Isolator Model motor RS Safety Switch Switchgear T028293

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

RS T028293 DOOR INTERLOCKED ISOLATOR SWITCH

Heavy-duty door interlocked isolator switch designed for safe disconnection in electrical control systems. Built to meet international standards and equipped for both motor and general load switching under demanding conditions.

Manufacturer: RS

Type: Door Interlocked Isolator Switch

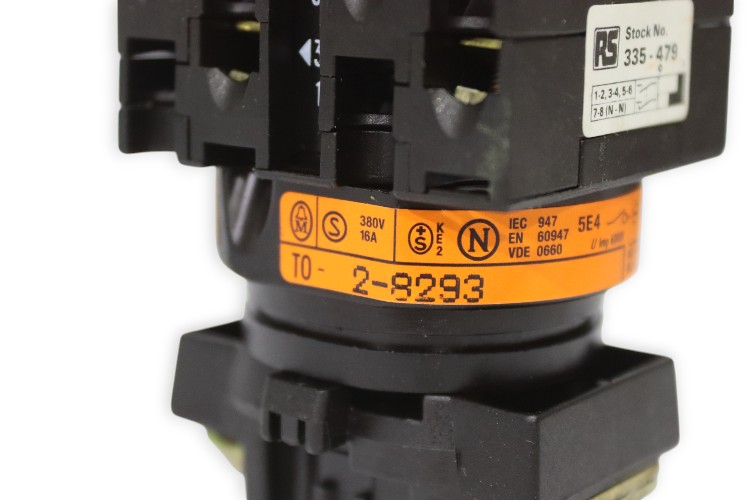

Model: T028293

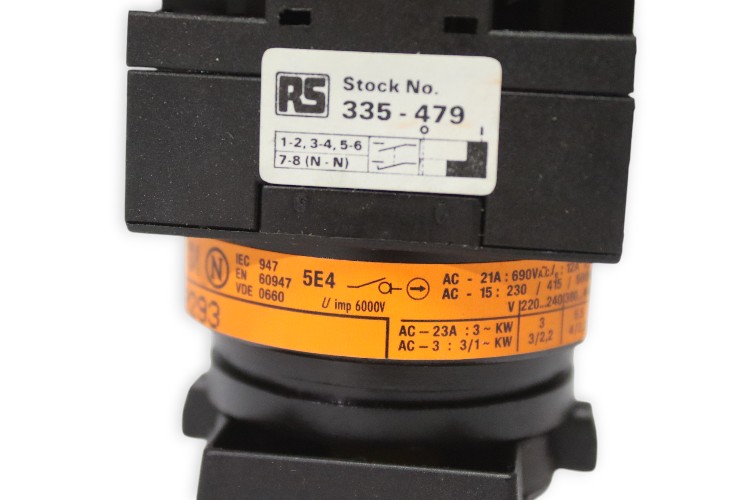

ID. No.: 335479

Ref. Code: 5E4

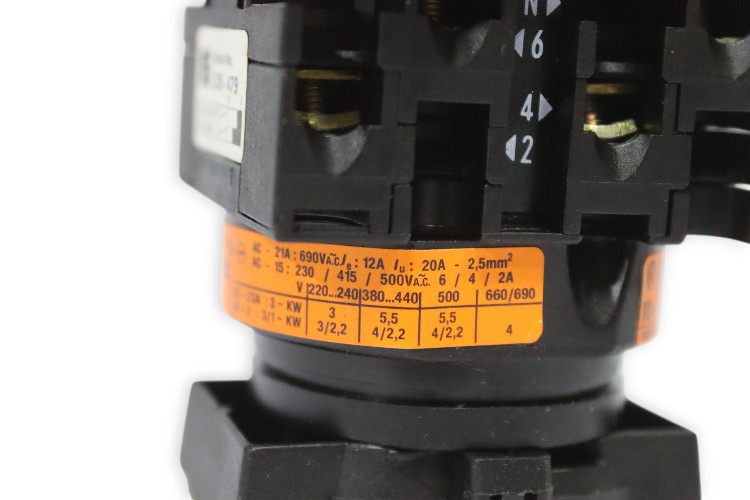

Switching Rating:

Power:

AC-21A	690 V AC, 12A (20A Iu)
AC-15	230/415/500 V AC, 6 / 4 / 2 A
AC-23A	3-Phase “ 5.5 kW at 380“440 V AC
AC-3A	3/1-Phase “ 4/2.2 kW at 380“440 V AC
Rated Impulse Voltage	6000 V
Current	20 A
General Use	380 V, 16 A
Standard Compliance	IEC 947, EN 60947, VDE 0660
