RS-C-1K5-5%-0.5W Leaded Resistor
Neu
Auf Lager4 EinheitenVersandbereit
Leitender Widerstand RS Kohlefaser-Axialwiderstand 1,5 kΩ, 0,5 W mit ±5% Toleranz, Keramikkörper und weitem Betriebstemperaturbereich von -55°C bis +155°C.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

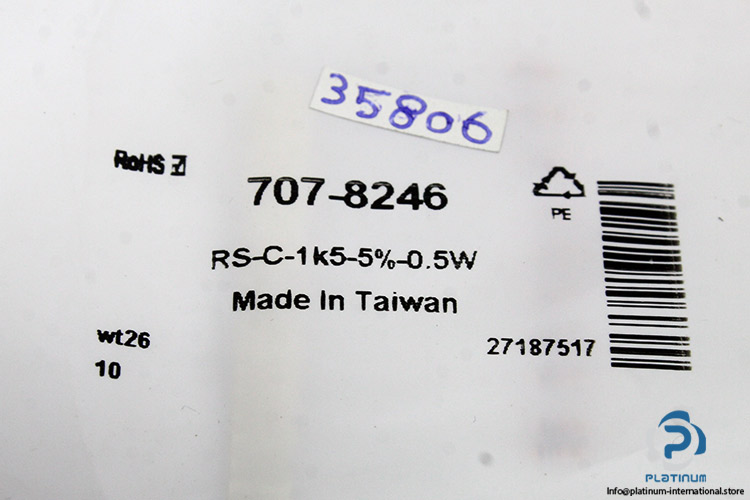

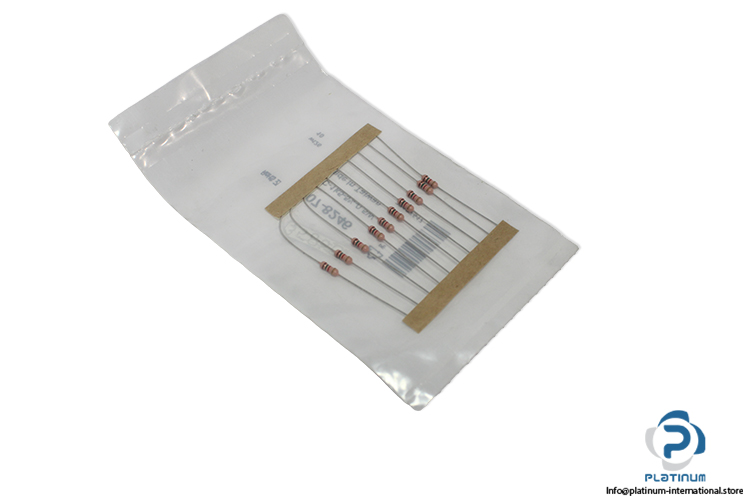

RS-C-1K5-5%-0.5W Leaded Resistor
The RS-C-1K5-5%-0.5W is a carbon film leaded resistor designed for stable electrical performance in electronic circuits. Featuring axial termination and ceramic case construction, it ensures reliable resistance accuracy and thermal stability across a wide operating temperature range.
Type: Leaded Resistor
Model: RS-C-1K5-5%-0.5W
RS Part No.: 707-8246
Distributor: RS Supplier
Code: 27187517
| Resistance | 1.5 kΩ |
| Power Rating | 0.5 W |
| Technology | Carbon Film |
| Tolerance | ±5% |
| Termination Style | Axial |
| Case Style | Ceramic |
| Case Diameter | 2.3 mm |
| Dimensions | 2.3 (dia.) x 6.3 mm |
| Lead Diameter | 0.55 mm |
| Lead Length | 28 mm |
| Maximum Operating Voltage | 300 V |
| Maximum Overload Voltage | 500 V |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +155°C |
| Minimum Temperature Coefficient | -500 ppm/°C |
| Maximum Temperature Coefficient | +350 ppm/°C |
| Temperature Coefficient Range | -500 to +350 ppm/°C |
