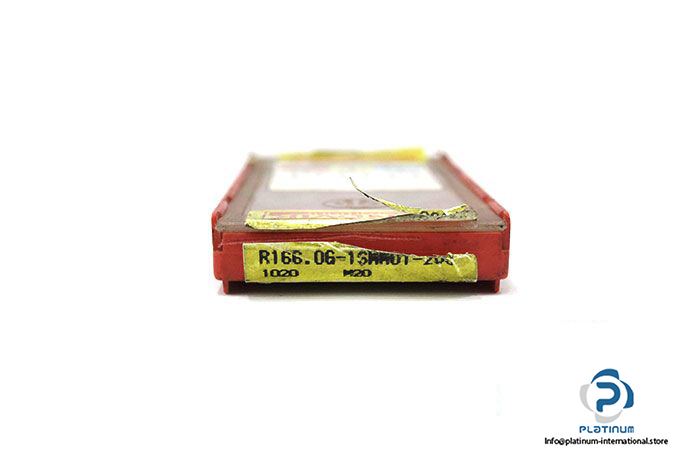

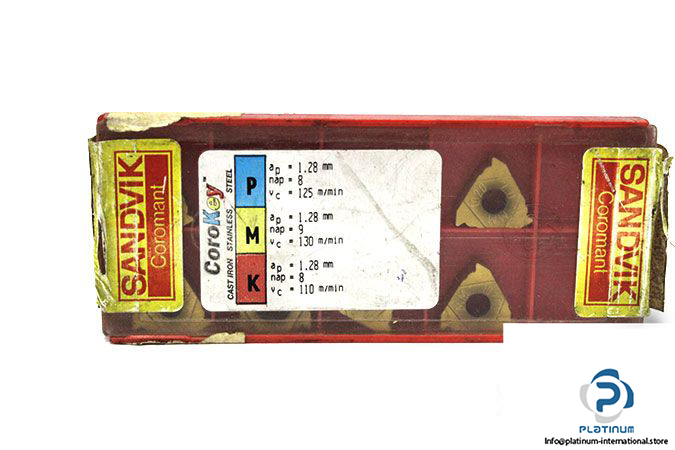

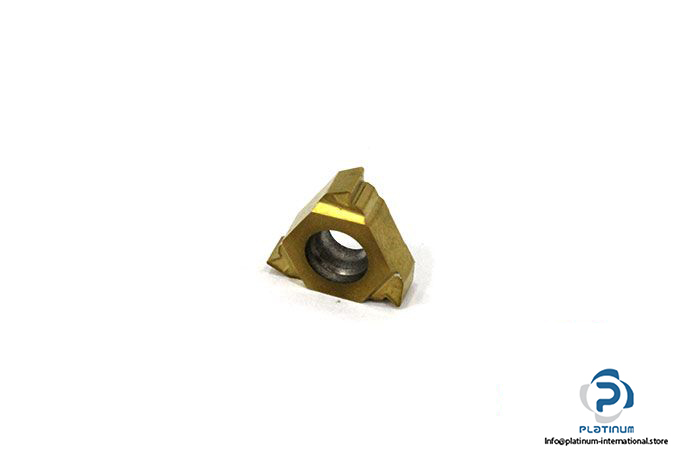

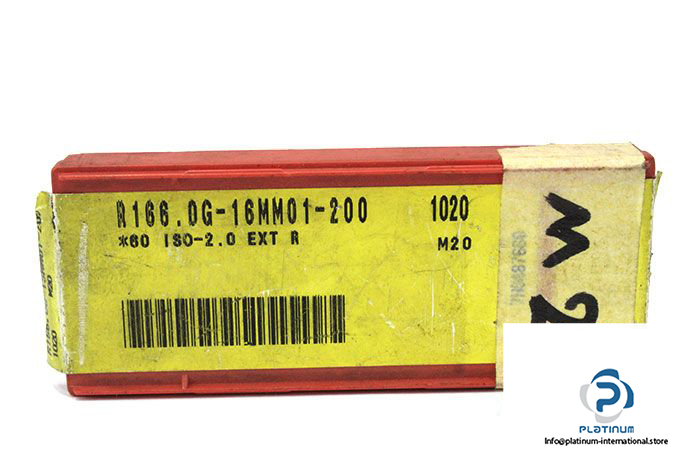

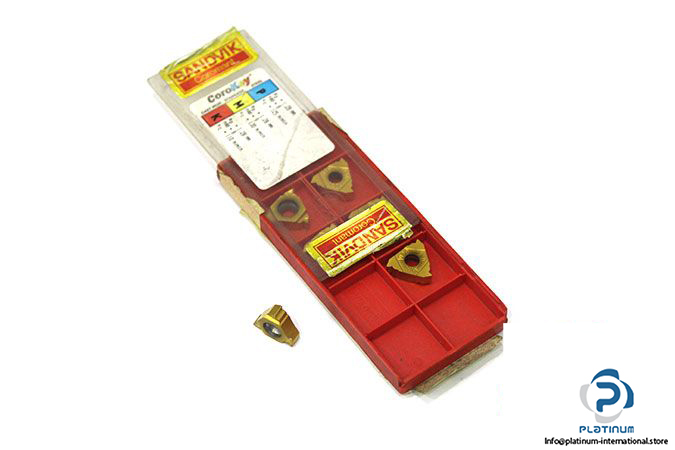

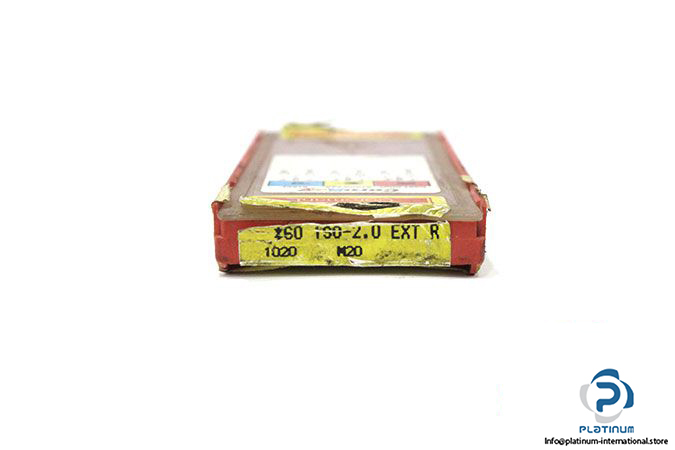

Sandvik R166.OG-16MM01-200 Insert FOR Thread Turning
Manufacturer: SANDVIK
Type: Insert for Thread Turning
ISO: R166.0G-16MM01-200 1020
ANSI: R166.0G-16MM01-200 1020
Material Id: 5741740
Standard number (STDNO1): ISO 965-1998
Thread type (TTP): EXT
Thread pitch (TP): 2mm
Thread profile type (TPT): F
Tooth count (NT): 1
Thread tolerance class (TCTR)IT: 6

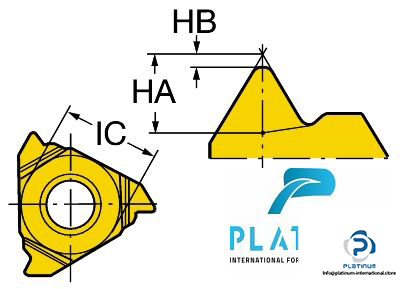

Theoretical thread height (HA): 1.5 mm
Thread height difference (HB): 0.29 mm
Profile distance ex (PDX): 1.4 mm
Profile distance ey (PDY): 1.32 mm
Insert mounting style code (IFS): 3
Insert size and shape (CUTINTSIZESHAPE): U-Lock 166/154 -external size 16R
Cutting edge count (CEDC): 3
Inscribed circle diameter (IC): 9.525 mm
Hand (HAND): R
Grade (GRADE): 1020
Substrate (SUBSTRATE): HC
Coating (COATING): PVD TIN
Insert thickness (S): 3.969 mm
Weight: 0.06 kg
