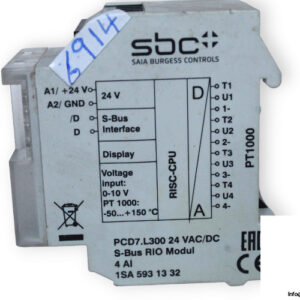

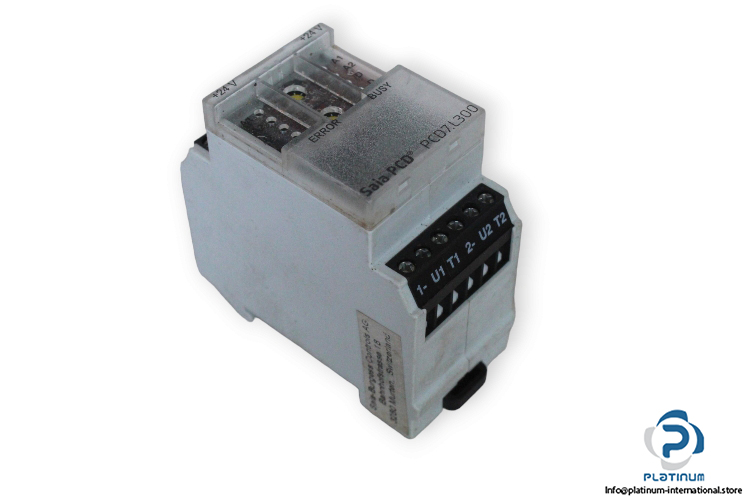

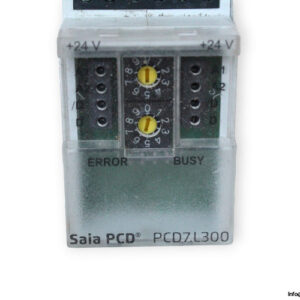

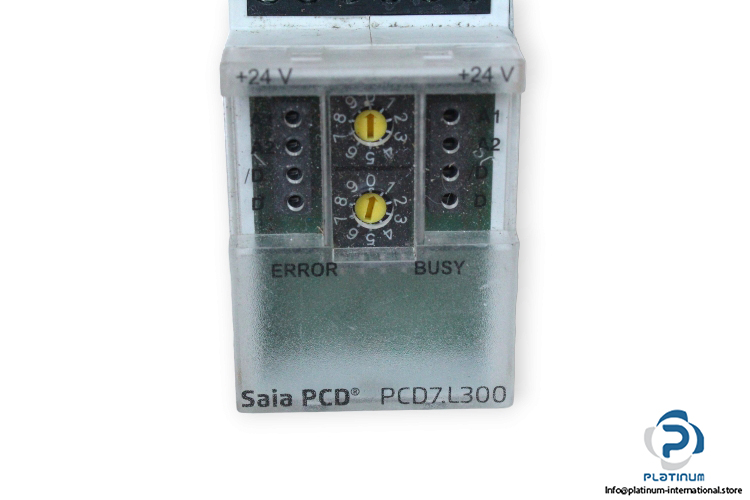

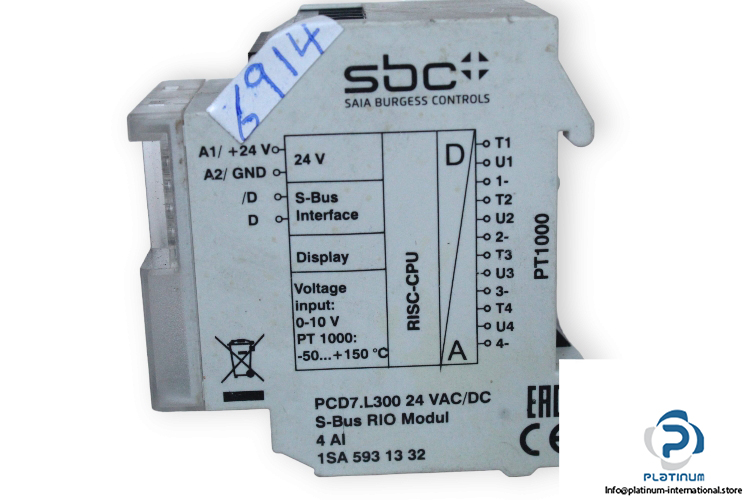

SBC PCD7.L300 Analogue Module

Manufacturer: SBC
Type: Analogue module
Model: PCD7.L300

Nominal Voltage: 18 … 32 V DC/ 20 … 28 V AC
Current Consumption: 20 mA (DC)/ 30 mA (AC)
Power Consumption: 0.5 W
Sensor Type: Pt100 (4 Sensor)
Temperature Range: -50 … 150 °C
Voltage Range: 0 … 10 V DC
Data Range: 0 … 1000 (2 Comma Stage)
Bus system: S-Bus

Transmission rate: 1200… 38400

Transmission mode: Parity / Data
Operating Temperature: 0 … 55 °C
Degree of protection: Housing IP50 / Terminals IP20
Dimensions: 35 X 70 X 74 mm
