Schmersal AZ 15ZVRK-M16 Safety Switch
Gebraucht
Auf Lager17 EinheitenVersandbereit
Schmersal Safety Switch AZ15ZVRK-M16 with utilization categories AC-15 (230 V / 4 A) and DC-13 (24 V / 4 A), rated insulation voltage of 500 V, and IP67 protection class. Reliable and durable for industrial applications.
60947-5-1AmbientCurrentGlass-FiberIECIndustrialInsulationIP67RatedreinforcedSafetySchmersalSelf-ExtinguishingSwitchTemperatureThermalvoltage
Neu
Auf Lager
Dieses Produkt ist auch als nagelneu erhältlich.
Neue Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

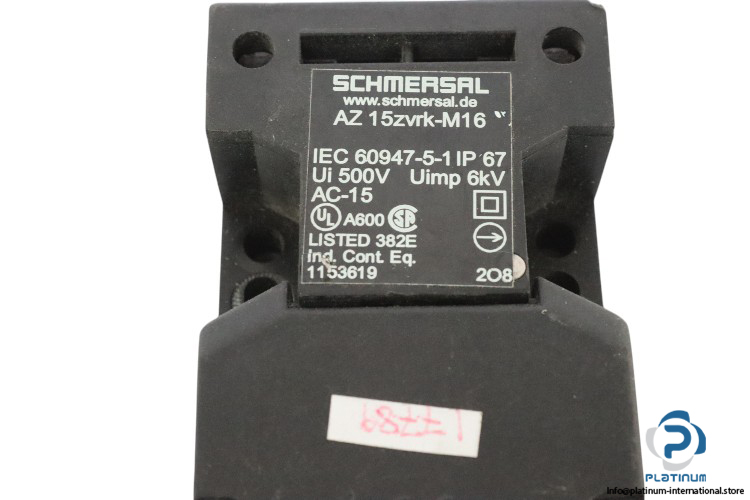

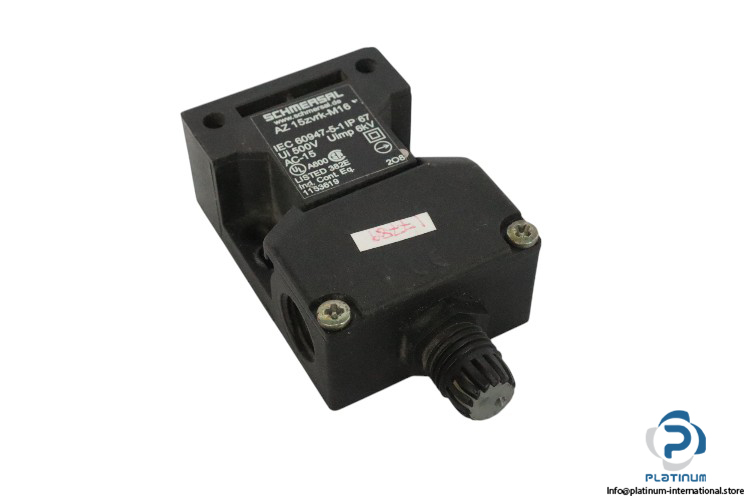

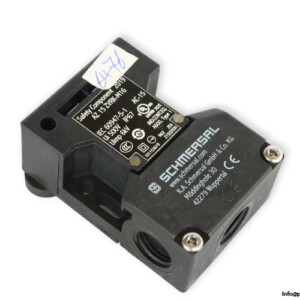

Schmersal Safety Switch AZ15ZVRK-M16
Schmersal Safety Switch AZ15ZVRK-M16 (Product Name: AZ 15) is a high-performance safety switch designed for industrial applications. This switch provides exceptional reliability and safety features, ensuring protection against electrical hazards in critical environments.
- Manufacturer: Schmersal
- Type: Safety Switch
- Model: AZ15ZVRK-M16
- Product Name: AZ 15
Technical Data:
- Utilization Category:
- AC-15: 230 V / 4 A
- DC-13: 24 V / 4 A
- Rated Insulation Voltage (Ui): 500 V
- Rated Thermal Current: 10 A
- Frequency: 50 to 60 Hz
- Rated Impulse Voltage (Uimp): 6 kV
- Number of Safety Contacts: 1
- Housing Material: Plastic, Glass-Fiber Reinforced Thermoplastic, Self-Extinguishing
- Standard: IEC 60947-5-1
- Protection Class: IP67
- Ambient Temperature: -30 to 80 °C
- Dimensions: 52 x 75 x 30 mm
