Schmersal AZM 161SK-12/12RKN-024 Safety Switch
139,99$
Schmersal Sicherheitsschalter AZM 161SK-12/12RKN-024 Robuster und zuverlässiger Sicherheitsschalter mit 4 Sicherheitsschaltkontakten, 2 Hilfskontakten und IP67-Schutz. Geeignet für den Einsatz in Industrieanwendungen mit Schraubklemmen für einfache Installation.

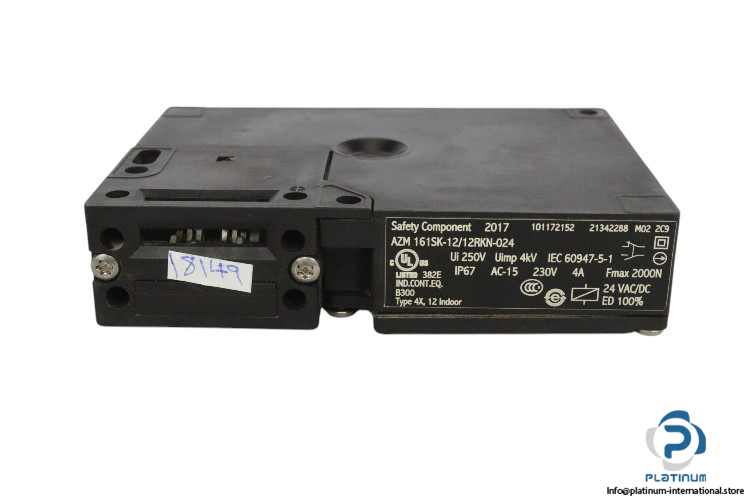

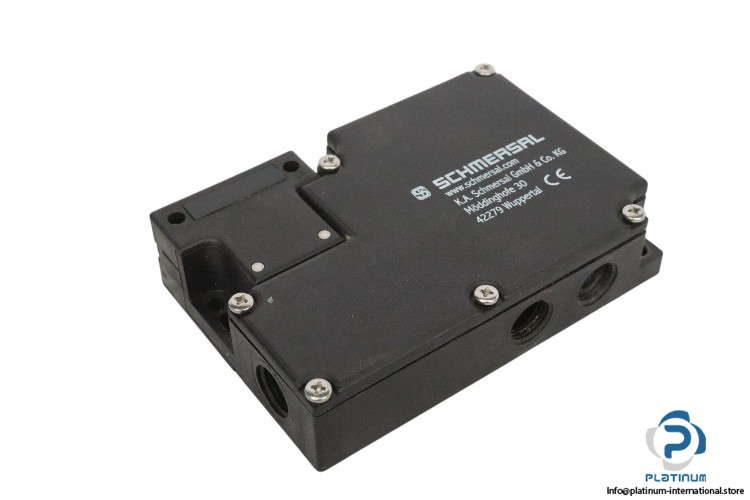

Schmersal Safety Switch AZM 161SK-12/12RKN-024
The Schmersal Safety Switch AZM 161SK-12/12RKN-024 is an advanced safety switch used in various industrial applications to ensure both operator and machine safety. This model is equipped with 4 safety contacts and 2 auxiliary contacts, providing a reliable solution for machine protection. The switch is made from glass-fibre reinforced thermoplastic material, ensuring durability and self-extinguishing properties. With a robust IP67 degree of protection, it is designed to perform in harsh environments. The switch operates with a 230 V AC at 4 A rated voltage and offers excellent thermal and impulse withstand capabilities, making it suitable for demanding industrial environments.
- Model: AZM 161SK-12/12RKN-024
- Order Number: 101172152
- Rated Voltage AC-15: 230 V AC at 4 A
- Thermal Test Current: 6 A
- Rated Control Voltage: 24 V AC/DC
- Rated Insulation Voltage (Ui): 250 V AC
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Number of Auxiliary Contacts: 2
- Number of Safety Contacts: 4
- Type of Connection: Screw Terminals
- Housing Material: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Degree of Protection: IP67
- Ambient Temperature: -30 / 60 °C
