Euchner TX1B-A024RC18 Safety Switch

Name: EUCHNER TX1B-A024RC18 SAFETY SWITCH
Brand: EUCHNER
SKU: 1000691
Availability: LimitedAvailability

Gebraucht

Auf Lager7 EinheitenVersandbereit

Manufacturer:

EUCHNER

Type:

Safety Switch

Model:

TX1B-A024RC18

Id no:

082933

Hersteller

EUCHNER

SKU

1000691

Kategorie

Limit Switches

Zustand

Gebraucht

AND Limit Multiple Position Sensor Single Switch Switches

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: EUCHNER
Type: Safety Switch
Model: TX1B-A024RC18
Id no: 082933

Output Configuration: NC + NO
Number of guard lock monitoring positively driven contacts: 2
Contact Operation: Slow-action
Actuator Type: guard locking
Power consumption: 8 W
Rated insulation voltage Ui: 50 V
Rated impulse withstand voltage Uimp: 1.5 kV
Solenoid operating voltage: AC/DC 24 V

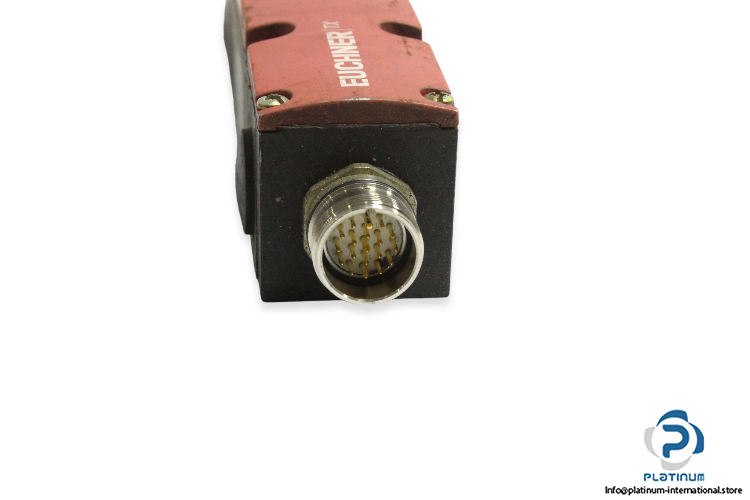

Connection: plug connector M23
Protection Class: IP65
Locking force F_max: 1700 N
Ambient Operating Temperature: –20 … +80 °C
