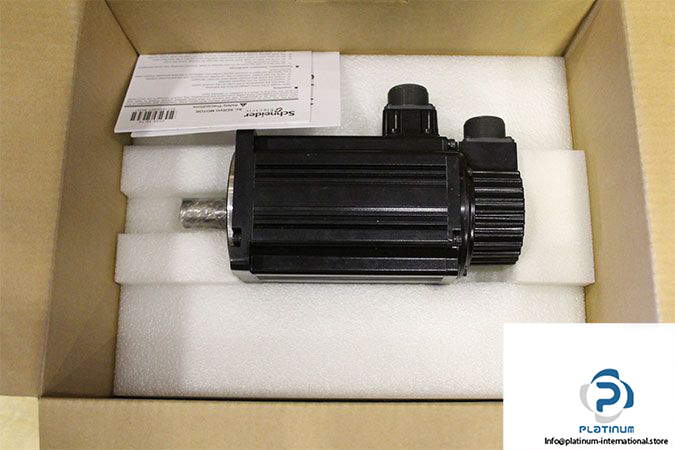

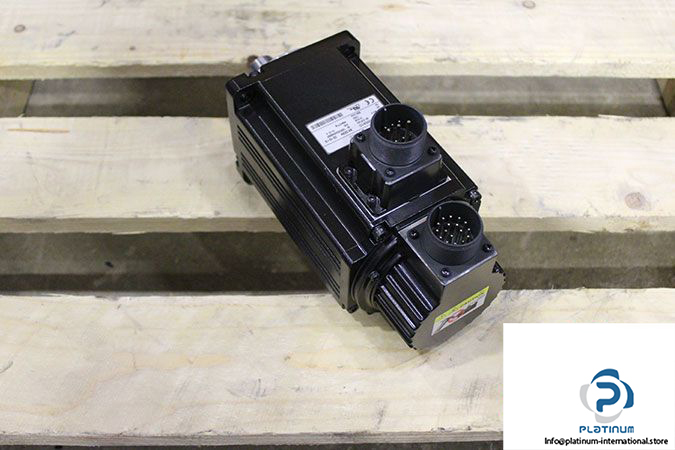

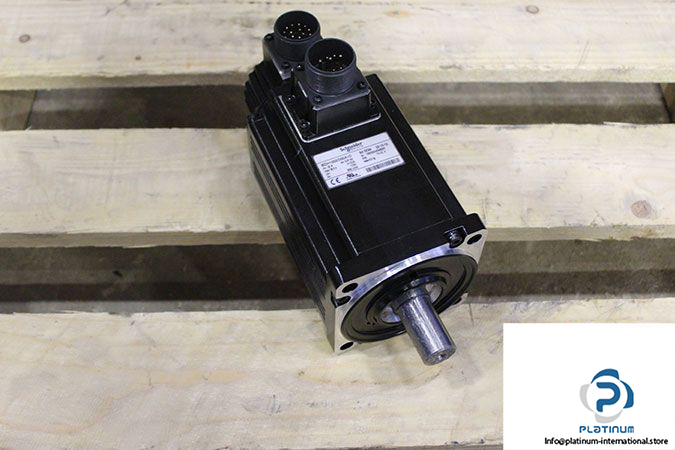

Schneider BCH1002O02A1C AC Servo Motor
Neu
Auf Lager16 EinheitenVersandbereit
777,77$
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Schneider Electric, Elau
Type: AC Servo Motors

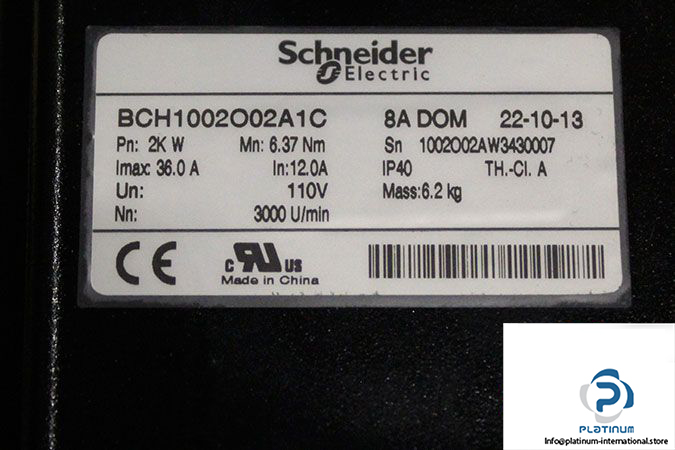

Model: BCH1002O02A1C
Number of Phases: Three Phase
Rated Torque [Nm]: 6.37
Stall Current [A]: 12.05
Rated Current [A]: 12
Max Current [A]: 36
Rated Voltage [V]: 110
Rated Power [kW]: 2
Rated Speed [rpm]: 3000
Max Speed [rpm]: 5000
Shaft End: Smooth Shaft
Flange Size [mm]: 100
Shaft Diameter [mm]: 22
Shaft Length [mm]: 37
Protection Class [IP]: 40
Thermal Class: A
Weight [kg]: 6.3
