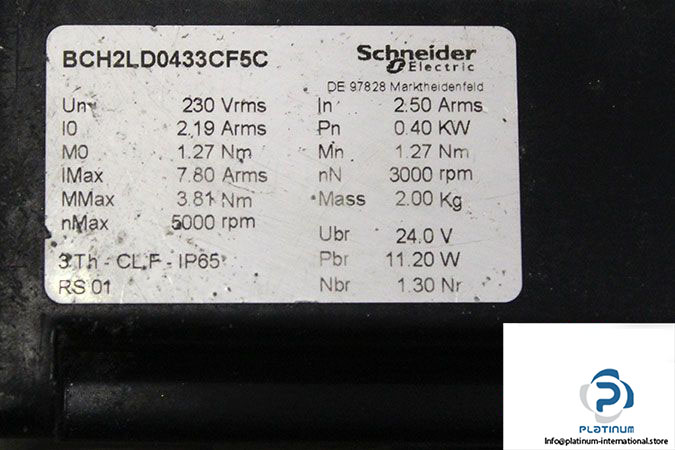

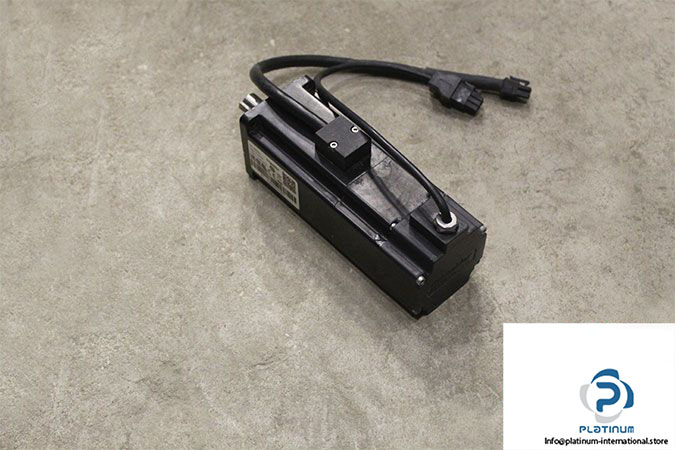

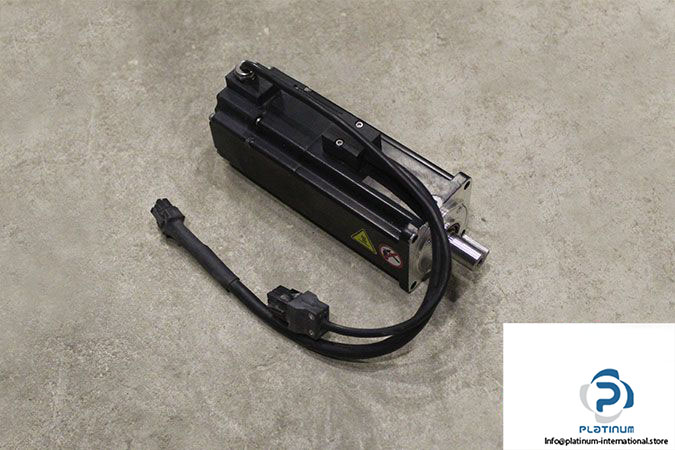

Schneider BCH2LD0433CF5C AC Servo Motor

Manufacturer: Schneider Electric

Type: AC Servo Motors

Model: BCH2LD0433CF5C

Stall Torque [Nm]: 1.27

Rated Torque [Nm]: 1.27

Max Torque [Nm]: 3.81

Stall Current [A]: 2.19

Rated Current [A]: 2.5

Max Current [A]: 7.8

Rated Voltage [V]: 230

Rated Power [kW]: 0.4

Rated Speed [rpm]: 3000

Max Speed [rpm]: 5000

Shaft End: Keyed

Flange Size [mm]: 60

Shaft Diameter [mm]: 14

Shaft Length [mm]: 30

Key Width [mm]: 5

Brake Voltage [VDC]: 24

Brake Power [W]: 11.2

Holding Torque [Nm]: 1.3

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 1.885
